14 Series

Catalog

FIXED IND 100UH 6A 33 MOHM TH

Part	Inductance	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Frequency - Self Resonant	Mounting Type	Current Rating (Amps)	DC Resistance (DCR) [Max]	Tolerance	Package / Case	Inductance Frequency - Test	Q @ Freq	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)	Size / Dimension	Q @ Freq [custom]	Q @ Freq [custom]
Murata Electronics 1410460/5C	100 µH
Murata Electronics 1468420C	680 µH	1.012 in	25.7 mm	Wirewound	1.6 MHz	Through Hole	2 A	300 mOhm	10 %	Radial Vertical Cylinder	1 kHz	23 50 kHz	85 °C	-40 C	Unshielded	0.61 in	15.5 mm
Murata Electronics 1468373C	68 µH	0.961 in	24.4 mm	Wirewound	5.3 MHz	Through Hole	7.3 A	25 mOhm	15 %	Radial Vertical Cylinder	1 kHz	45 100 kHz	85 °C	-40 C	Unshielded			0.787 in	20 mm
Murata Electronics 1447506C	4.7 mH	0.961 in	24.4 mm	Wirewound	600 kHz	Through Hole	600 mA	2.2 Ohm	10 %	Radial Vertical Cylinder	1 kHz	50 kHz 60	85 °C	-40 C	Unshielded	0.61 in	15.5 mm
Murata Electronics 1415605C	15 mH	1.173 inches	29.8 mm	Wirewound	200 kHz	Through Hole	0.5 A		10 %	Radial Vertical Cylinder	1 kHz	10 kHz 55	85 °C	-40 C	Unshielded			23.3 mm		0.917 in	3.74 Ohm

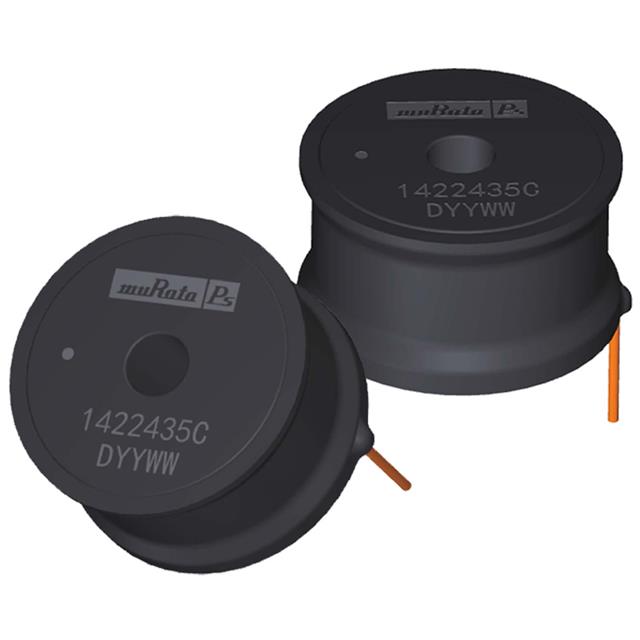

Murata Electronics 1410313C	10 µH	1.063 in		Wirewound	20.7 MHz	Through Hole	13 A	9 mOhm	15 %	Radial Vertical Cylinder	1 kHz	50 kHz 54	85 °C	-40 C	Unshielded	0.61 in	15.5 mm					27 mm
Murata Electronics 1447509C	4.7 mH	1.173 inches	29.8 mm	Wirewound	500 kHz	Through Hole	900 mA	1.4 Ohm	10 %	Radial Vertical Cylinder	1 kHz	10 kHz 57	85 °C	-40 C	Unshielded			23.3 mm		0.917 in
Murata Electronics 1415465C	150 µH	1.173 inches	29.8 mm	Wirewound	2.4 MHz	Through Hole	6.5 A	42 mOhm	10 %	Radial Vertical Cylinder	1 kHz	46 100 kHz	85 °C	-40 C	Unshielded			23.3 mm		0.917 in
Murata Electronics 1422512C	2.2 mH	0.961 in	24.4 mm	Wirewound		Through Hole	1.2 A		10 %	Radial Vertical Cylinder	1 kHz		85 °C	-40 C	Unshielded			0.787 in	20 mm		700 mOhm		50 kHz	33
Murata Electronics 1422604C	22 mH	1.173 inches	29.8 mm	Wirewound	200 kHz	Through Hole	400 mA	6.962 Ohm	10 %	Radial Vertical Cylinder	1 kHz	30 50 kHz	85 °C	-40 C	Unshielded			23.3 mm		0.917 in
