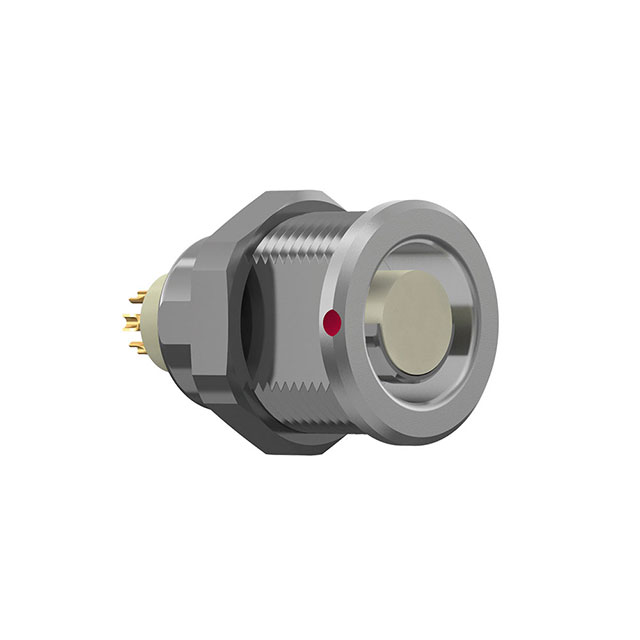

G10F1C-P Series
Manufacturer: ODU
Beta
⌘K
ODU MINI-SNAP RECEPT, STY 1, SZ
| Part | Connector Type | Shielding | Color | Orientation [custom] | Applications | Number of Positions | Shell Finish | Primary Material | Shell Size - Insert [custom] | Current Rating (Amps) | Material Flammability Rating | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Ingress Protection | Contact Material | Fastening Type | Contact Finish - Mating | Insert Material | Mounting Type | Voltage Rating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Receptacle Female Sockets | Unshielded | Silver | 1 | Industrial Medical Military Testing Equipment & Measurement | 2 | Chrome over Nickel | Metal | 0 | 7.5 A | UL94 V-0 | Bulkhead - Rear Side Nut | 120 °C | -40 C | Brass | IP50 - Dust Protected | Brass | Push-Pull | Gold | Polyetheretherketone (PEEK) | Panel Mount | 500 V | ||
Receptacle Female Sockets | Silver | 1 | Industrial Medical Military Testing Equipment & Measurement | Chrome over Nickel | Metal | 0 | 7.5 A | UL94 V-0 | Bulkhead - Rear Side Nut | 120 °C | -40 C | Brass | IP50 - Dust Protected | Brass | Push-Pull | Gold | Polyetheretherketone (PEEK) | Panel Mount | |||||
Receptacle Female Sockets | Unshielded | Silver | 1 | Industrial Medical Military Testing Equipment & Measurement | 7 | Chrome over Nickel | Metal | 0 | 4 A | UL94 V-0 | Bulkhead - Rear Side Nut | 120 °C | -40 C | Brass | IP50 - Dust Protected | Brass | Push-Pull | Gold | Polyetheretherketone (PEEK) | Panel Mount | 300 VDC | ||
Receptacle Female Sockets | Silver | 1 | Industrial Medical Military Testing Equipment & Measurement | 7 | Chrome over Nickel | Metal | 0 | 4 A | UL94 V-0 | Bulkhead - Rear Side Nut | 120 °C | -40 C | Brass | IP50 - Dust Protected | Brass | Push-Pull | Gold | Polyetheretherketone (PEEK) | Panel Mount | ||||
Receptacle Female Sockets | Unshielded | Silver | 1 | Industrial Medical Military Testing Equipment & Measurement | 4 | Chrome over Nickel | Metal | 0 | 7.5 A | UL94 V-0 | Bulkhead - Rear Side Nut | 120 °C | -40 C | Brass | IP50 - Dust Protected | Brass | Push-Pull | Gold | Polyetheretherketone (PEEK) | Panel Mount | 300 VDC | ||
Receptacle Female Sockets | Unshielded | Silver | 1 | Industrial Medical Military Testing Equipment & Measurement | 7 | Chrome over Nickel | Metal | 0 | 4 A | UL94 V-0 | Bulkhead - Rear Side Nut | 120 °C | -40 C | Brass | IP50 - Dust Protected | Brass | Push-Pull | Gold | Polyetheretherketone (PEEK) | Panel Mount Through Hole | 300 VDC | Solder | |
Receptacle Female Sockets | Silver | 1 | Industrial Medical Military Testing Equipment & Measurement | 9 | Chrome over Nickel | Metal | 0 | 4 A | UL94 V-0 | Bulkhead - Rear Side Nut | 120 °C | -40 C | Brass | IP50 - Dust Protected | Brass | Push-Pull | Gold | Polyetheretherketone (PEEK) | Panel Mount | ||||
Receptacle Female Sockets | Silver | 1 | Industrial Medical Military Testing Equipment & Measurement | 5 | Chrome over Nickel | Metal | 0 | 7.5 A | UL94 V-0 | Bulkhead - Rear Side Nut | 120 °C | -40 C | Brass | IP50 - Dust Protected | Brass | Push-Pull | Gold | Polyetheretherketone (PEEK) | Panel Mount | ||||
Receptacle Female Sockets | Unshielded | Silver | 1 | Industrial Medical Military Testing Equipment & Measurement | 4 | Chrome over Nickel | Metal | 0 | 7.5 A | UL94 V-0 | Bulkhead - Rear Side Nut | 120 °C | -40 C | Brass | IP50 - Dust Protected | Brass | Push-Pull | Gold | Polyetheretherketone (PEEK) | Panel Mount | 300 VDC | ||
Receptacle Female Sockets | Unshielded | Silver | 1 | Industrial Medical Military Testing Equipment & Measurement | 4 | Chrome over Nickel | Metal | 0 | 7.5 A | UL94 V-0 | Bulkhead - Rear Side Nut | 120 °C | -40 C | Brass | IP50 - Dust Protected | Brass | Push-Pull | Gold | Polyetheretherketone (PEEK) | Panel Mount | 300 VDC | Crimp |
