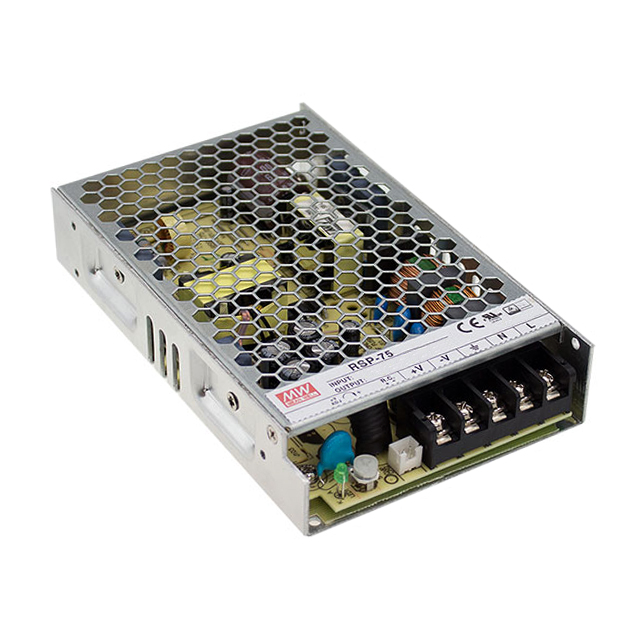

RSP-75 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 27V 76W
| Part | Minimum Load Required | Applications | Current - Output 1 | Approval Agency | Voltage - Input [Min] | Voltage - Input [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Features | Voltage - Isolation | Voltage - Output 1 | Type | Number of Outputs | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | ITE (Commercial) | 2.8 A | CB CCC CE cURus TUV | 85 VAC 120 VDC | 264 VAC 370 VDC | Chassis Mount | 70 °C | -25 °C | 88 % | 6.26 in | 1.18 in | 97 mm | 3.82 in | 30 mm | 159 mm | Adjustable Output PFC Remote On/Off Universal Input | 4000 V | 27 V | Enclosed | 1 | 76 W | |
MEAN WELL USA Inc. | ITE (Commercial) | 15 A | CB CCC CE cURus TUV | 85 VAC 120 VDC | 264 VAC 370 VDC | Chassis Mount | 70 °C | -25 °C | 76 % | 6.26 in | 1.18 in | 97 mm | 3.82 in | 30 mm | 159 mm | Adjustable Output PFC Remote On/Off Universal Input | 4000 V | 3.3 V | Enclosed | 1 | 50 W |
