kas Series

Manufacturer: E-Switch

Catalog

SWITCH: DIP-SWITCH; OFF-ON; 0.1A/50VDC; POS: 2; THT; -20÷85°C; KAS

Part	Voltage Rating	Pitch	Pitch	Actuator Type	Features	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Termination Style	Circuit	Contact Material	Current Rating (Amps)	Height Above Board	Height Above Board	Actuator Level	Mechanical Life	Length	Length	Electrical Life	Body Material	Height Above Board [z]	Height Above Board [z]	Number of Positions	Length [x]	Length [x]
E-Switch KAS2103ET	24 VDC	2.54 mm	0.1 "	Slide (Standard)	Tape Seal	Right Angle Through Hole	85 °C	-40 C	Gold	PC Pin	SPST	Phosphor Bronze	25 mA	0.39 in	9.9 mm	Raised

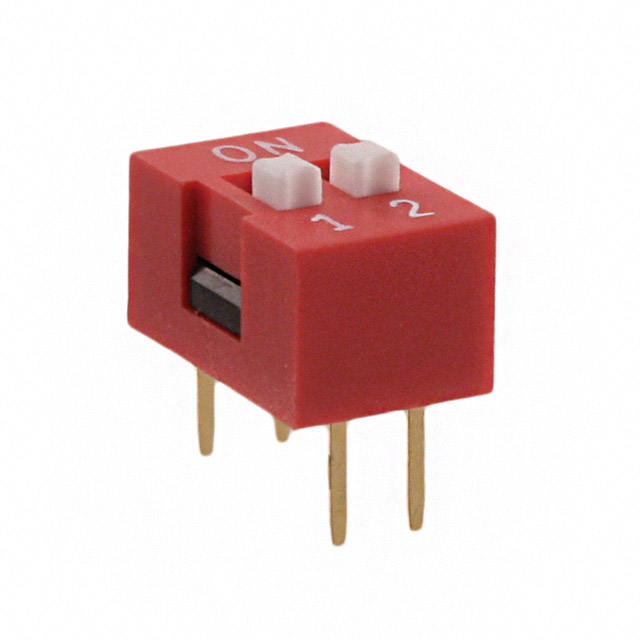

E-Switch KAS1102E	24 VDC	2.54 mm	0.1 "	Slide (Standard)		Through Hole	85 °C	-40 C	Gold	PC Pin	SPST	Phosphor Bronze	25 mA			Raised	2000 Cycles	0.254 in	6.44 mm	2000 Steps	Polybutylene Terephthalate (PBT) Glass Filled	6.99 mm	0.275 in	2

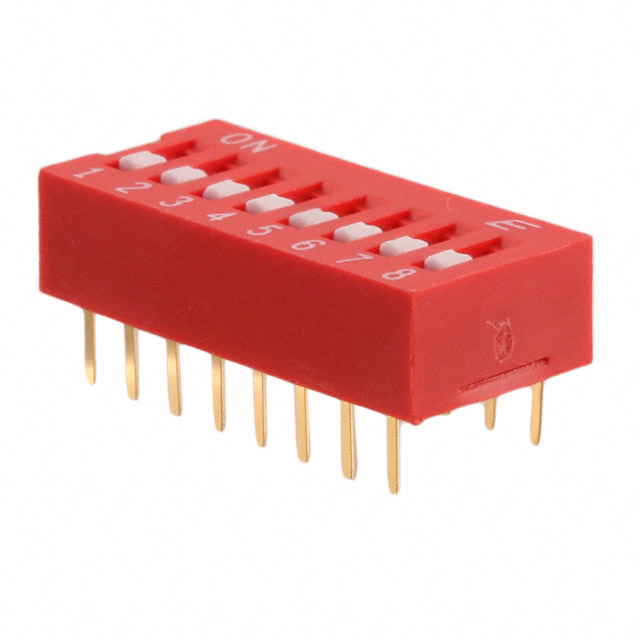

E-Switch KAS1108R	24 VDC	2.54 mm	0.1 "	Slide (Standard)		Through Hole	85 °C	-40 C	Gold	PC Pin	SPST	Phosphor Bronze	25 mA			Flush Recessed	2000 Cycles	0.854 in	21.7 mm	2000 Steps	Polybutylene Terephthalate (PBT) Glass Filled	6 mm	0.236 in	8
E-Switch KAS1108E	24 VDC	2.54 mm	0.1 "	Slide (Standard)		Through Hole	85 °C	-40 C	Gold	PC Pin	SPST	Phosphor Bronze	25 mA			Raised						6.99 mm	0.275 in	8
E-Switch KAS2105E	24 VDC	2.54 mm	0.1 "	Slide (Standard)		Right Angle Through Hole	85 °C	-40 C	Gold	PC Pin	SPST	Phosphor Bronze	25 mA	0.39 in	9.9 mm	Raised	2000 Cycles	0.554 in	14.06 mm	2000 Steps	Polybutylene Terephthalate (PBT) Glass Filled			5

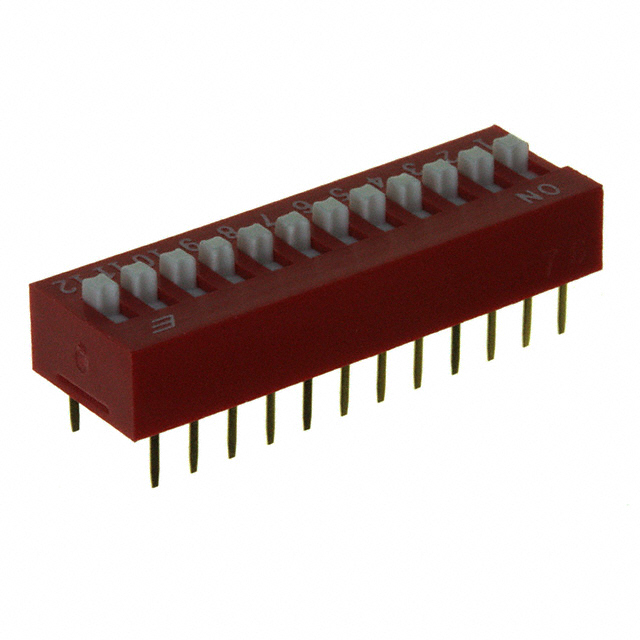

E-Switch KAS1112E	24 VDC	2.54 mm	0.1 "	Slide (Standard)		Through Hole	85 °C	-40 C	Gold	PC Pin	SPST	Phosphor Bronze	25 mA			Raised	2000 Cycles	1.254 in	31.84 mm	2000 Steps	Polybutylene Terephthalate (PBT) Glass Filled	6.99 mm	0.275 in	12

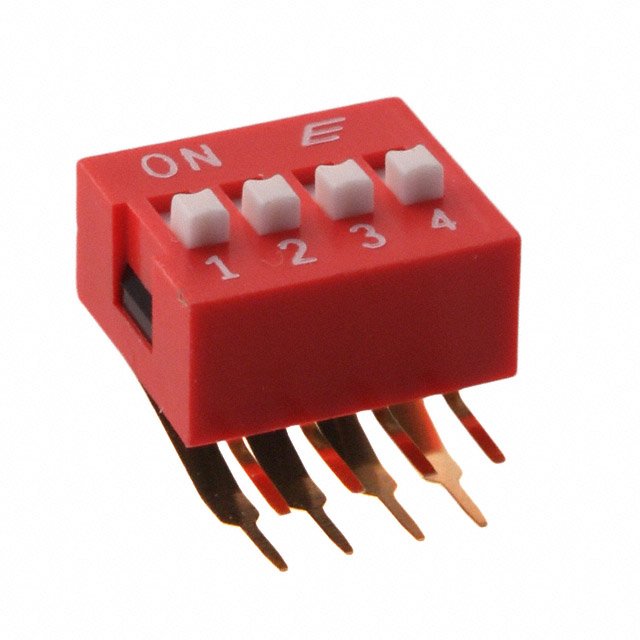

E-Switch KAS2104ET	24 VDC	2.54 mm	0.1 "	Slide (Standard)	Tape Seal	Right Angle Through Hole	85 °C	-40 C	Gold	PC Pin	SPST	Phosphor Bronze	25 mA	0.39 in	9.9 mm	Raised	2000 Cycles			2000 Steps	Polybutylene Terephthalate (PBT) Glass Filled			4	0.454 in	11.52 mm
E-Switch KAS2106ET	24 VDC	2.54 mm	0.1 "	Slide (Standard)	Tape Seal	Right Angle Through Hole	85 °C	-40 C	Gold	PC Pin	SPST	Phosphor Bronze	25 mA	0.39 in	9.9 mm	Raised								6

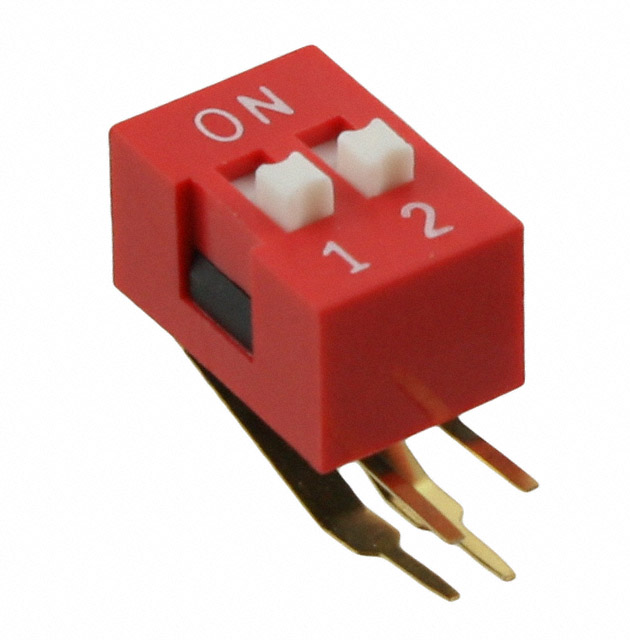

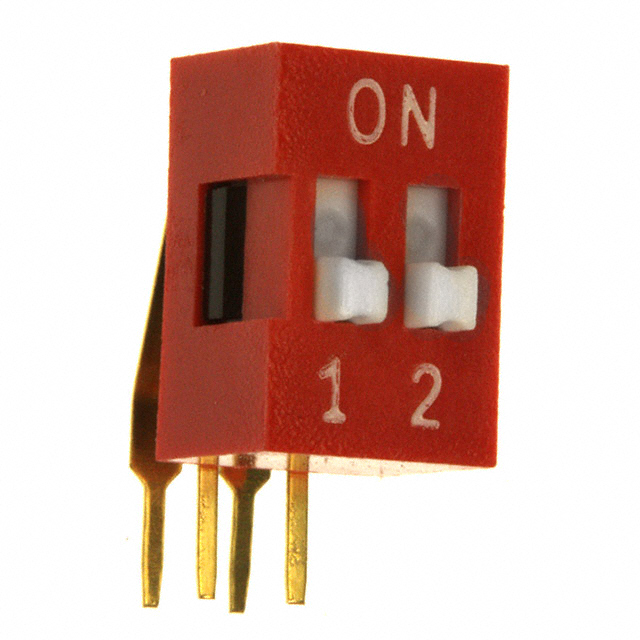

E-Switch KAS2102ET	24 VDC	2.54 mm	0.1 "	Slide (Standard)	Tape Seal	Right Angle Through Hole	85 °C	-40 C	Gold	PC Pin	SPST	Phosphor Bronze	25 mA	0.39 in	9.9 mm	Raised	2000 Cycles	0.254 in	6.44 mm	2000 Steps	Polybutylene Terephthalate (PBT) Glass Filled			2
E-Switch KAS1104RT	24 VDC	2.54 mm	0.1 "	Slide (Standard)	Tape Seal	Through Hole	85 °C	-40 C	Gold	PC Pin	SPST	Phosphor Bronze	25 mA			Flush Recessed						6 mm	0.236 in	4
