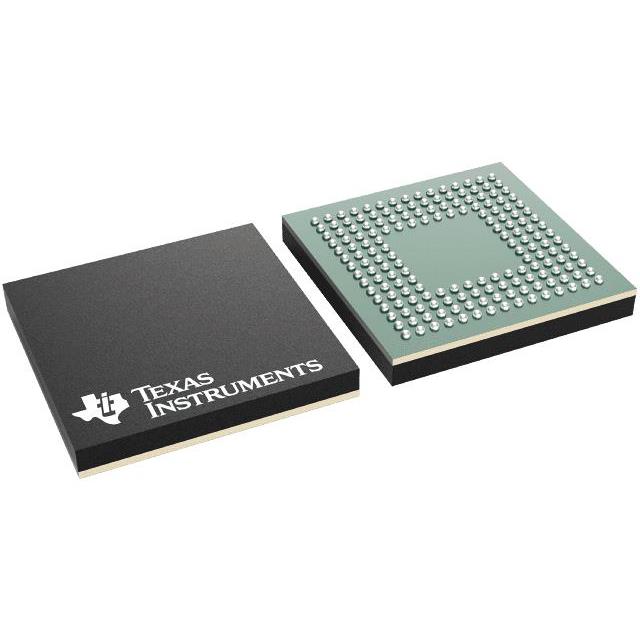

DLP® display controller for DLP160AP (0.16 QnHD) DMD
Key Features
• Display controller for DLP160AP (0.16 QnHD) DMDSupports input resolutions up to QnHDLow-power DMD interface with interface trainingInput frame rates up to 60 HzPixel data processing:Content adaptive illumination control (CAIC)1D Keystone correctionColor coordinate adjustmentActive power management processingProgrammable degammaColor space conversion4:2:2 to 4:4:4 chroma interpolation24-bit, input pixel interface support:Parallel or BT656, interface protocolsPixel clock up to 155 MHzMultiple input pixel data format optionsMIPI DSI (display serial interface) type 3:1-4 lanes, up to 470-Mbps lane speedExternal flash supportAuto DMD parking at power downEmbedded frame memory (eDRAM)System features:I2C device controlProgrammable splash screensProgrammable LED current controlDisplay image rotationPair withDLPA2000andDLPA2005PMIC (power management integrated circuit) and LED driverDisplay controller for DLP160AP (0.16 QnHD) DMDSupports input resolutions up to QnHDLow-power DMD interface with interface trainingInput frame rates up to 60 HzPixel data processing:Content adaptive illumination control (CAIC)1D Keystone correctionColor coordinate adjustmentActive power management processingProgrammable degammaColor space conversion4:2:2 to 4:4:4 chroma interpolation24-bit, input pixel interface support:Parallel or BT656, interface protocolsPixel clock up to 155 MHzMultiple input pixel data format optionsMIPI DSI (display serial interface) type 3:1-4 lanes, up to 470-Mbps lane speedExternal flash supportAuto DMD parking at power downEmbedded frame memory (eDRAM)System features:I2C device controlProgrammable splash screensProgrammable LED current controlDisplay image rotationPair withDLPA2000andDLPA2005PMIC (power management integrated circuit) and LED driver
Description
AI
The DLPC3420 digital controller, part of the DLP160AP (0.16 QnHD) chipset, enables operation of the DLP160AP digital micromirror device (DMD). The DLPC3420 controller provides a convenient, multi-functional interface between user electronics and the DMD, enabling small form factor and low power display applications.
Visit thegetting started with TI DLP Pico™ display technologypage, and view theprogrammer’s guideto learn how to get started.
The chipset includes established resources to help the user accelerate the design cycle, which includeproduction ready optical modules,optical module manufacturers, anddesign houses.
The DLPC3420 digital controller, part of the DLP160AP (0.16 QnHD) chipset, enables operation of the DLP160AP digital micromirror device (DMD). The DLPC3420 controller provides a convenient, multi-functional interface between user electronics and the DMD, enabling small form factor and low power display applications.
Visit thegetting started with TI DLP Pico™ display technologypage, and view theprogrammer’s guideto learn how to get started.
The chipset includes established resources to help the user accelerate the design cycle, which includeproduction ready optical modules,optical module manufacturers, anddesign houses.
