C01610E017 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K

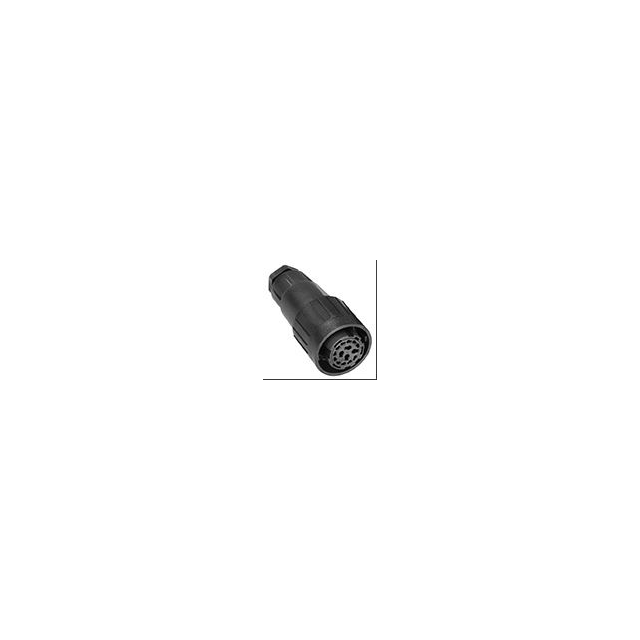

CONN PLUG HSG FMALE 18POS INLINE
| Part | Features | Shielding | Ingress Protection | Mounting Type | Fastening Type | Contact Type | Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Size | Note | Number of Positions | Housing Color | Contact Shape | Shell Size - Insert | Includes | Shell Material | Orientation | Connector Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | Backshell Cable Clamp Coupling Nut | Unshielded | IP65 - Dust Tight Water Resistant | Free Hanging (In-Line) | Bayonet Lock | Crimp | For Female Sockets | 125 °C | -40 C | 1.5 mm | Contacts Not Included | 18 | Black | Circular | 1 | 1 Backshell 1 Cable Nut 1 Gasket 1 Washer 2 pc Cable Clamp 2 Screws 9 pcs - 1 Connector | Nylon 6/6 Polyamide (PA66) | N (Normal) | Plug Housing | UL94 V-0 |
