GSM25E15 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

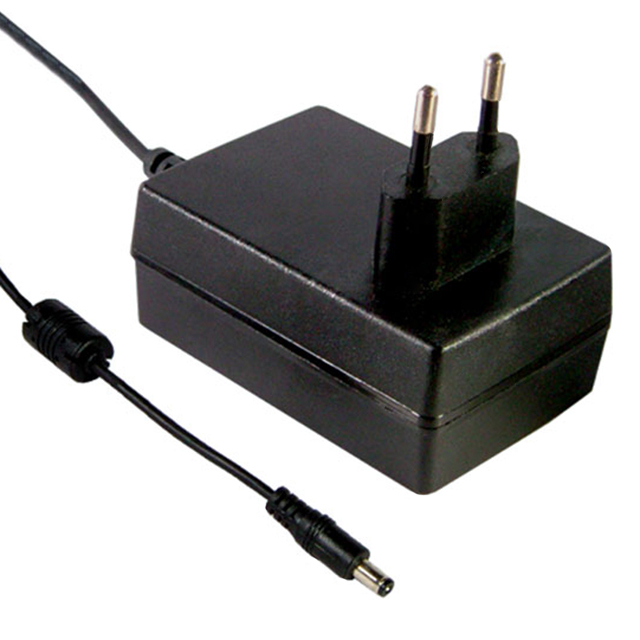

AC/DC WALL MOUNT ADAPTER 15V 25W
| Part | Output Connector [x] | Output Connector [diameter] | Output Connector | Input Type | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Cord Length | Cord Length | No Load Power Consumption | Power (Watts) | Applications | Approval Agency | Polarization | Region Utilized | Form | Voltage - Output | Operating Temperature [Min] | Operating Temperature [Max] | Input Connector | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | Fixed Blade | 80 VAC | 264 VAC | Level VI | 70.9 " | 1.8 m | 100 mW | 25 W | Medical | CB CE TUV | Positive Center | Europe | Wall Mount | 15 V | -25 °C | 60 °C | CEE 7/16 | 33 mm | 1.3 in | 3.11 in | 79 mm | 54 mm | 2.13 in | 1.66 A |
