RT5785 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K
IC REG BUCK ADJ 2A TSOT23-8
| Part | Output Type | Voltage - Input (Max) [Max] | Topology | Number of Outputs | Voltage - Output (Min/Fixed) | Synchronous Rectifier | Output Configuration | Mounting Type | Function | Package / Case | Voltage - Input (Min) [Min] | Supplier Device Package | Frequency - Switching | Current - Output | Operating Temperature [Max] | Operating Temperature [Min] | Board Type | Outputs and Type | Outputs and Type | Supplied Contents | Main Purpose | Utilized IC / Part | Voltage - Input [Max] | Voltage - Input [Min] | Contents | Regulator Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | Adjustable | 6 V | Buck | 1 | 0.6 V | Positive | Surface Mount | Step-Down | SOT-23-8 Thin TSOT-23-8 | 2.5 V | TSOT-23-8 | 1.5 MHz | 2 A | 85 C | -40 ¯C | |||||||||||

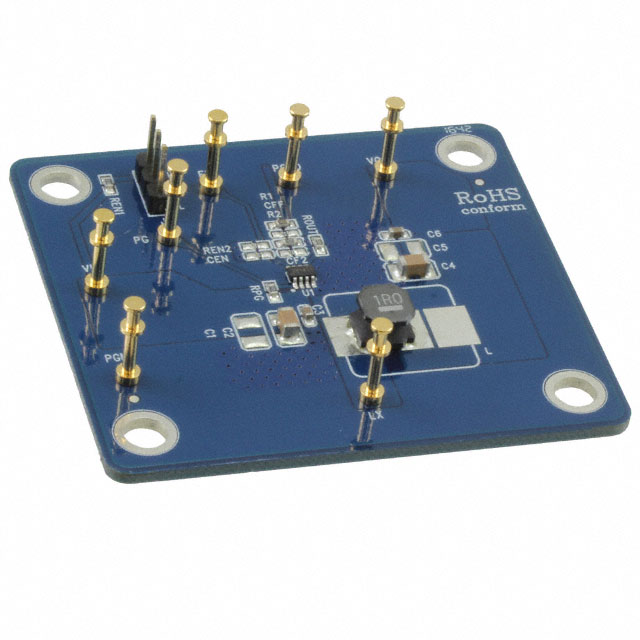

 Richtek USA Inc. | 1.5 MHz | 2 A | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | DC/DC Step Down | RT5785A | 6 V | 2.5 V | Board(s) | Buck |
