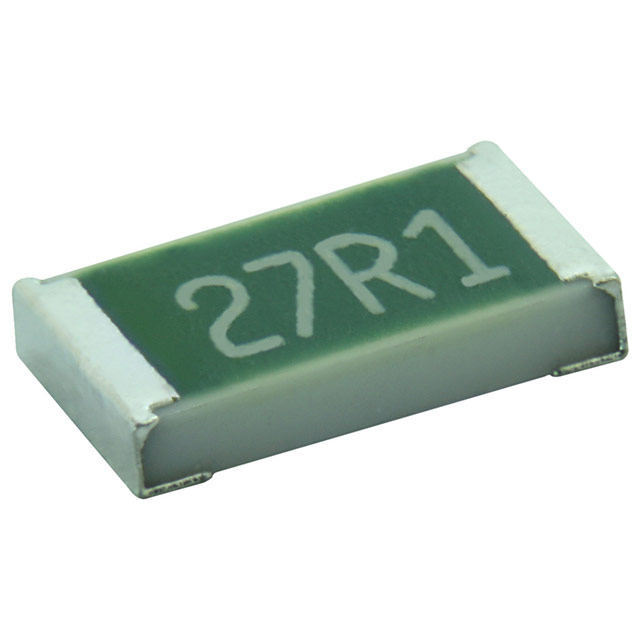

TNPW1206 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Catalog
RES 523K OHM 0.1% 0.52W 1206
...
| Part | Package / Case | Composition | Tolerance | Temperature Coefficient | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Resistance | Number of Terminations | Power (Watts) | Features | Supplier Device Package | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 1206 (3216 Metric) | Thin Film | 0.1 % | 50 ppm/°C | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 523 kOhms | 2 | 0.52 W | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 1206 | AEC-Q200 | -55 °C | 347 °F | 0.026 in | 0.65 mm | |
 Vishay General Semiconductor - Diodes Division | 1206 (3216 Metric) | Thin Film | 0.1 % | 25 ppm/°C | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 305 kOhms | 2 | 250 mW | Military | 1206 | -55 °C | 125 °C | 0.026 in | 0.65 mm | 0.25 W | |
Vishay General Semiconductor - Diodes Division | 1206 (3216 Metric) | Thin Film | 25 ppm/°C | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 715 kOhms | 2 | 250 mW | Military | 1206 | -55 °C | 125 °C | 0.026 in | 0.65 mm | 0.25 W | ||
Vishay General Semiconductor - Diodes Division | 1206 (3216 Metric) | Thin Film | 0.1 % | 10 ppm/°C | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 348 kOhms | 2 | 0.52 W | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 1206 | AEC-Q200 | -55 °C | 347 °F | 0.026 in | 0.65 mm | |
Vishay General Semiconductor - Diodes Division | 1206 (3216 Metric) | Thin Film | 0.1 % | 25 ppm/°C | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 2.87 kOhms | 2 | 0.52 W | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 1206 | AEC-Q200 | -55 °C | 347 °F | 0.026 in | 0.65 mm | |
Vishay General Semiconductor - Diodes Division | 1206 (3216 Metric) | Thin Film | 1 % | 25 ppm/°C | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 2 kOhms | 2 | 0.52 W | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 1206 | AEC-Q200 | -55 °C | 347 °F | 0.026 in | 0.65 mm | |
Vishay General Semiconductor - Diodes Division | 1206 (3216 Metric) | Thin Film | 0.1 % | 25 ppm/°C | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 5.6 kOhms | 2 | 0.52 W | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 1206 | AEC-Q200 | -55 °C | 347 °F | 0.026 in | 0.65 mm | |
Vishay General Semiconductor - Diodes Division | 1206 (3216 Metric) | Thin Film | 0.1 % | 25 ppm/°C | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 3.24 kOhms | 2 | 250 mW | Military | 1206 | -55 °C | 125 °C | 0.026 in | 0.65 mm | 0.25 W | |
Vishay General Semiconductor - Diodes Division | 1206 (3216 Metric) | Thin Film | 0.1 % | 10 ppm/°C | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 200 Ohms | 2 | 0.52 W | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 1206 | AEC-Q200 | -55 °C | 347 °F | 0.026 in | 0.65 mm | |
Vishay General Semiconductor - Diodes Division | 1206 (3216 Metric) | Thin Film | 0.1 % | 25 ppm/°C | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | 787 kOhms | 2 | 250 mW | Military | 1206 | -55 °C | 125 °C | 0.026 in | 0.65 mm | 0.25 W |
