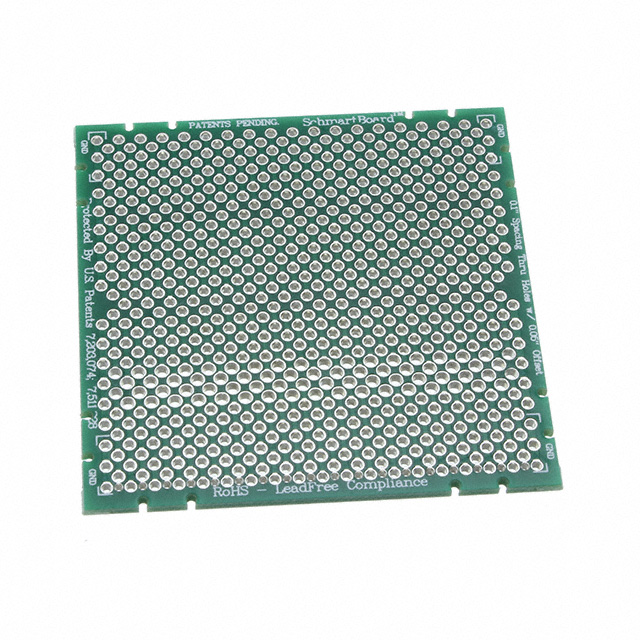

201-0001 Series
Manufacturer: Schmartboard, Inc.
Beta
⌘K
BREADBOARD GENERAL PURPOSE NPTH
| Part | Pitch [custom] | Pitch [custom] | Pitch [custom] | Pitch [custom] | Circuit Pattern | Plating | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Hole Diameter [diameter] | Hole Diameter [diameter] | Proto Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Schmartboard, Inc. | 2.54 mm | 0.1 " | 1.27 mm | 0.05 " | Pad Per Hole (Round) | Non-Plated Through Hole (NPTH) | 2 in | 50.8 mm | 50.8 mm | 2 in | 0.97 mm | 0.038 in | Breadboard General Purpose |
