19400160 Series

Manufacturer: HARTING

Catalog

HAN 16 HPR HOOD TOP ENTRY M25 SCREW LOCK ROHS COMPLIANT: NA

Part	Connector Type	Housing Color	Housing Finish	Thread Size	Size	Style	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features
HARTING 19400160411	Hood	Black	Powder Coated	M25	16 B	Top Entry	Aluminum Die Cast	125 °C	-40 C	Screw Locks on Hood	4.35 "	2.283 in	110.5 mm	58 mm	165 mm	6.496 "
HARTING 19400160511	Hood	Black	Powder Coated	M25	16 B	Side Entry	Aluminum Die Cast	125 °C	-40 C	Screw Locks on Hood	4.35 "	2.283 in	110.5 mm	58 mm	165 mm	6.496 "

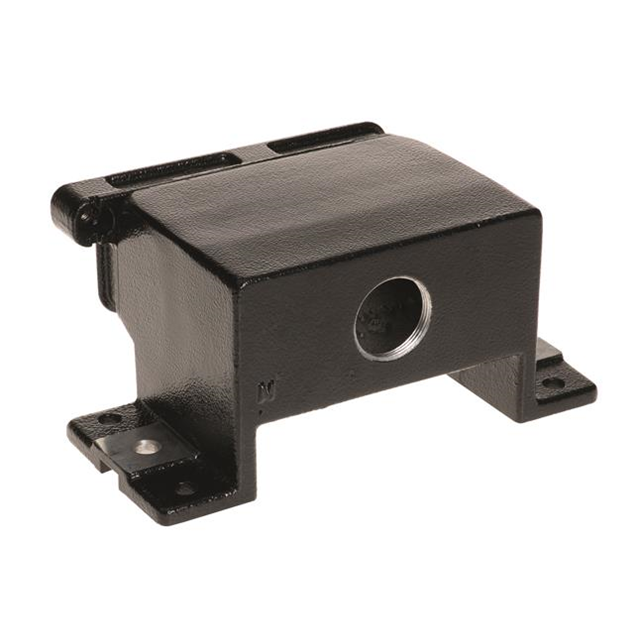

HARTING 19400160912	Hood - 90°	Black	Powder Coated	M32	16 B	Side Entry	Aluminum Die Cast	125 °C	-40 C	Screw Locks on Hood
HARTING 19400160922	Hood - 90°	Black	Powder Coated	M32	16 B	Side Entry	Aluminum Die Cast	125 °C	-40 C	Screw Locks on Hood
HARTING 19400160502	Hood	Black	Powder Coated	M32	16 B	Side Entry	Aluminum Die Cast	125 °C	-40 C	Screw Locks on Hood	4.35 "	2.283 in	110.5 mm	58 mm	165 mm	6.496 "

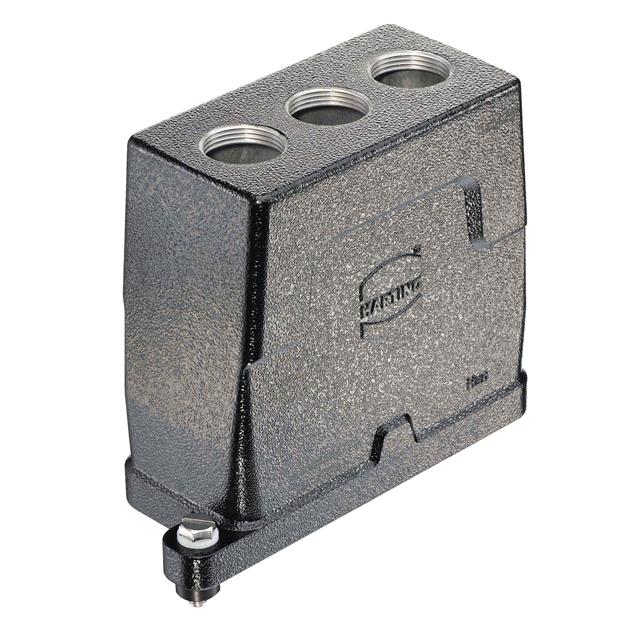

HARTING 19400160477	Hood	Black	Powder Coated	M25	16 B	Top Entry	Aluminum Die Cast	125 °C	-40 C	Screw Locks on Hood							Corrosion Resistant
HARTING 19400160569	Hood	Black	Powder Coated	M50	16 B	Side Entry	Aluminum Die Cast	125 °C	-40 C	Screw Locks on Hood	4.724 in	2.283 in	120 mm	58 mm	165 mm	6.496 "	Corrosion Resistant

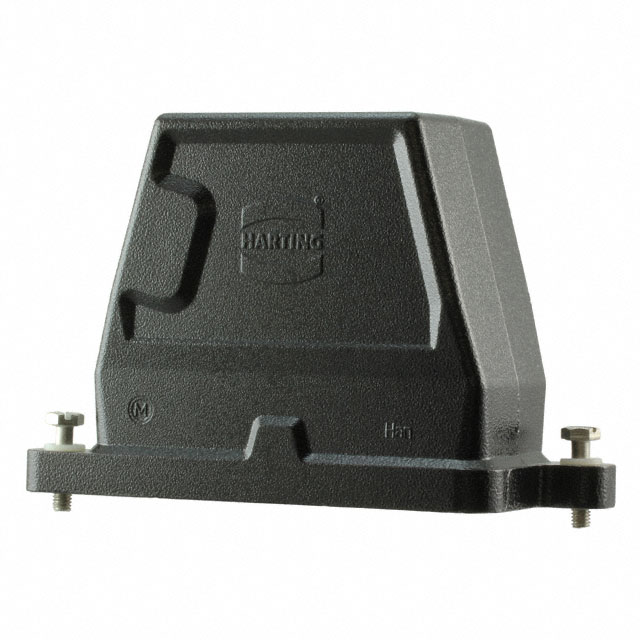

HARTING 19400160513	Hood	Black	Powder Coated		16 B	Side Entry	Aluminum Die Cast	125 °C	-40 C	Screw Locks on Hood	4.35 "	2.283 in	110.5 mm	58 mm	165 mm	6.496 "
HARTING 19400160414	Hood	Black	Powder Coated		16 B	Top Entry	Aluminum Die Cast	125 °C	-40 C	Screw Locks on Hood	4.35 "	2.283 in	110.5 mm	58 mm	165 mm	6.496 "
