9343 Series
Manufacturer: Belden Inc.
Beta
⌘K

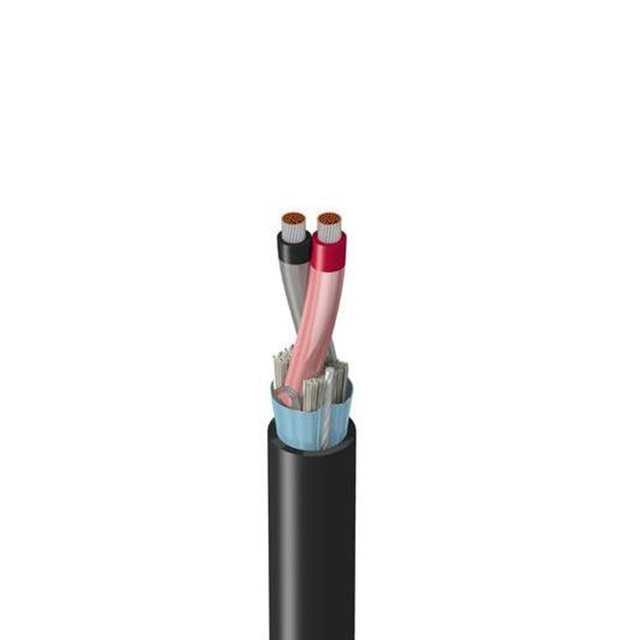

CABLE 2COND 14AWG BLK SHLD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Wire Gauge | Usage | Conductor Insulation | Conductor Insulation | Conductor Insulation | Features | Jacket Color | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | 2 | 1.219 mm | 0.048 in | 304.8 m | 1000 ft | Copper Tinned | 0.358 in | 9.09 mm | Multi-Conductor | 14.5 AWG | Audio Control Instrumentation | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | Direct Burial Drain Wire Ripcord UV Resistant | Black | Foil | 42 | 30 AWG | TC THHN THWN UL Style NPLF |
