1362991 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

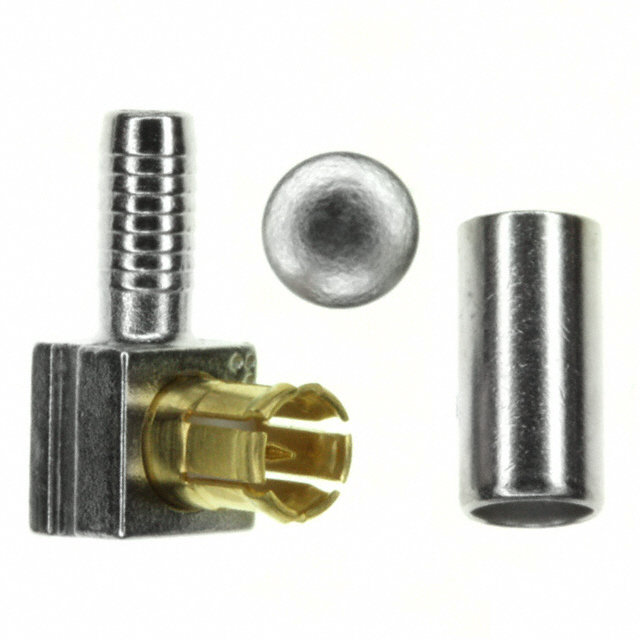

CONN MCX PLUG R/A 75 OHM SOLDER
| Part | Center Contact Material | Frequency - Max [Max] | Mating Cycles | Mounting Type | Shield Termination | Voltage Rating | Fastening Type | Center Contact Plating | Impedance | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Body Finish | Cable Group | Insertion Loss | Connector Style | Connector Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Beryllium Copper | 6000 MHz | 500 | Free Hanging (In-Line) Right Angle | Crimp | 335 V | Snap-On | Gold | 75 Ohms | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 1 Connector 1 End Cap 1 Ferrule | Nickel | RG-179 | 0.1 dB | MCX | Plug Male Pin | Solder |
