2351415 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

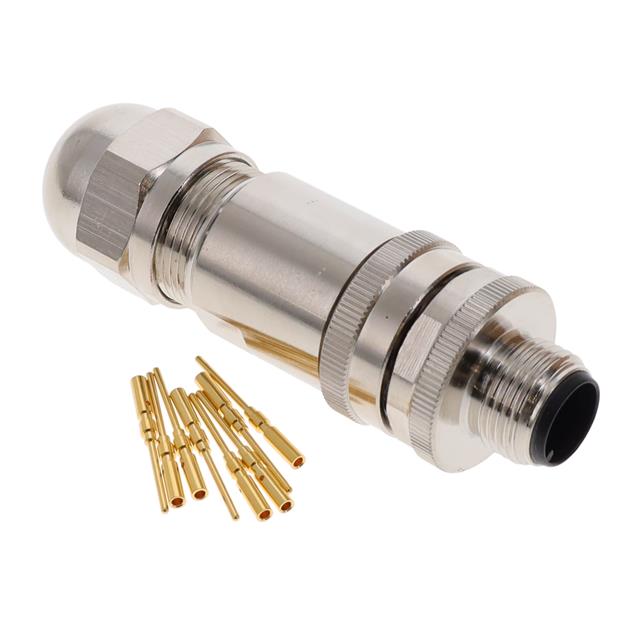

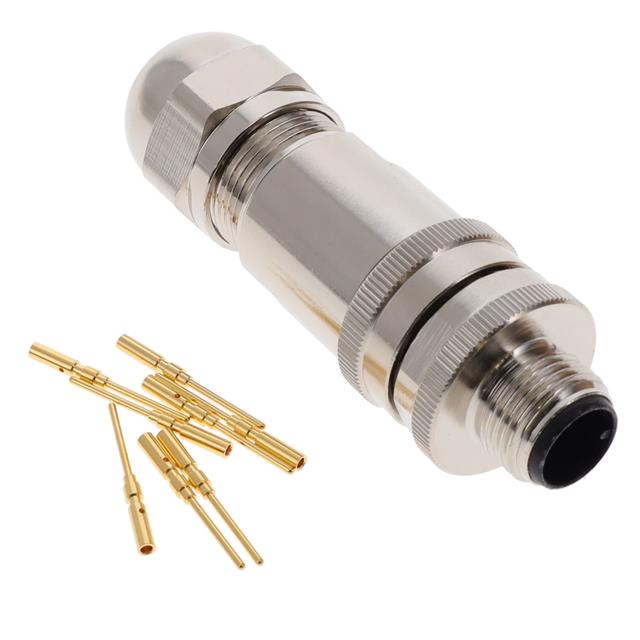

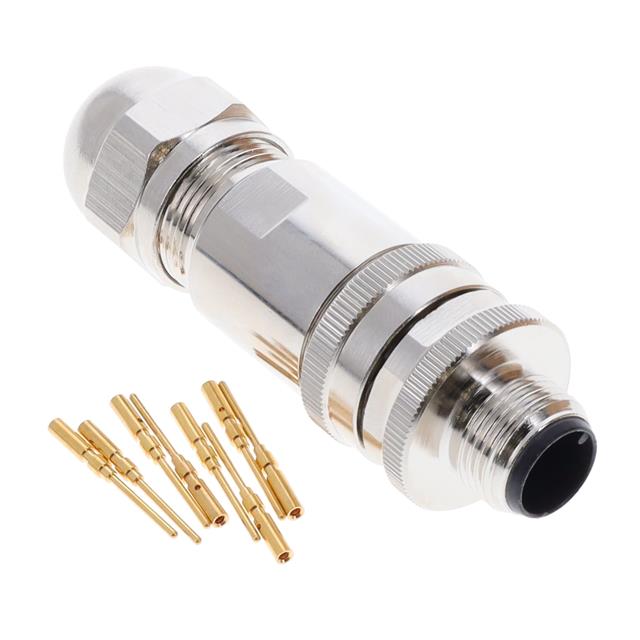

SENSOR CONNECTOR, PG9, M12, MALE, 8 POSITIONS, CRIMP PIN - CONTACTS NOT SUPPLIED
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Number of Positions | Connector Type | Mounting Type | Note | Primary Material | Shell Material | Material Flammability Rating | Insert Material | Shell Size - Insert | Type | Shielding | Shell Finish | Features | Contact Type | Housing Color | Orientation | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 85 °C | -40 °C | Circular | 8 | Plug Housing | Free Hanging (In-Line) | Contacts Not Included | Metal | Brass | UL94 V-0 | Nylon Polyamide (PA) | M12-8 | For Male Pins | Shielded | Nickel | Backshell Railway (EN45545 IEC61373) | Crimp | Silver | A | IP67 - Dust Tight Waterproof |
 TE Connectivity Raychem Cable Protection | 85 °C | -40 °C | Circular | 8 | Plug Housing | Free Hanging (In-Line) | Contacts Not Included | Metal | Brass | UL94 V-0 | Nylon Polyamide (PA) | M12-8 | For Male Pins | Shielded | Nickel | Backshell Railway (EN45545 IEC61373) | Crimp | Silver | A | IP67 - Dust Tight Waterproof |
 TE Connectivity Raychem Cable Protection | 85 °C | -40 °C | Circular | 8 | Plug Housing | Free Hanging (In-Line) | Contacts Not Included | Metal | Brass | UL94 V-0 | Nylon Polyamide (PA) | M12-8 | For Male Pins | Shielded | Nickel | Backshell Railway (EN45545 IEC61373) | Crimp | Silver | A | IP67 - Dust Tight Waterproof |
 TE Connectivity Raychem Cable Protection | 85 °C | -40 °C | Circular | 8 | Plug Housing | Free Hanging (In-Line) | Contacts Not Included | Metal | Brass | UL94 V-0 | Nylon Polyamide (PA) | M12-8 | For Male Pins | Shielded | Nickel | Backshell Railway (EN45545 IEC61373) | Crimp | Silver | A | IP67 - Dust Tight Waterproof |
