SI8286 Series

Catalog

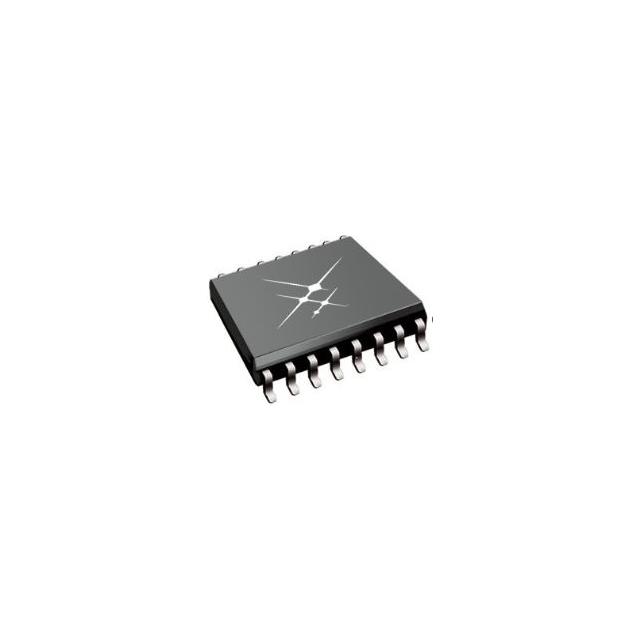

DGT ISO 3.75KV 1CH GT DVR 16SOIC

Part	Current - Peak Output	Common Mode Transient Immunity (Min) [Min]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Supplier Device Package	Voltage - Isolation	Number of Channels [custom]	Package / Case	Package / Case	Package / Case	Pulse Width Distortion (Max) [Max]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Approval Agency	Mounting Type	Propagation Delay tpLH / tpHL (Max) [Max]	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Qualification
Skyworks Solutions Inc. SI8286DC-ISR	4 A	125 V/ns	2 A	4.1 A	16-SOIC	3750 Vrms	1	16-SOIC	7.5 mm	0.295 "	5 ns	14 V	30 V	CQC CSA UL VDE	Surface Mount	50 ns	Capacitive Coupling	125 °C	-40 C
Skyworks Solutions Inc. SI8286DD-ASR	4 A	125 V/ns	2 A	4.1 A	16-SOIC		1	16-SOIC	7.5 mm	0.295 "	5 ns	14 V	30 V	CQC CSA UR VDE	Surface Mount	50 ns	Capacitive Coupling	125 °C	-40 C	Automotive	AEC-Q100
Skyworks Solutions Inc. SI8286EC-AS	4 A	125 V/ns	2 A	4.1 A	16-SOIC	3750 Vrms	1	16-SOIC	7.5 mm	0.295 "	5 ns	16 V	30 V	CQC CSA UL VDE	Surface Mount	50 ns	Capacitive Coupling	125 °C	-40 C	Automotive	AEC-Q100
Skyworks Solutions Inc. SI8286ED-ISR	4 A	125 V/ns	2 A	4.1 A	16-SOIC		1	16-SOIC	7.5 mm	0.295 "	5 ns	16 V	30 V	CQC CSA UR VDE	Surface Mount	50 ns	Capacitive Coupling	125 °C	-40 C
Skyworks Solutions Inc. SI8286DC-AS	4 A	125 V/ns	2 A	4.1 A	16-SOIC	3750 Vrms	1	16-SOIC	7.5 mm	0.295 "	5 ns	14 V	30 V	CQC CSA UL VDE	Surface Mount	50 ns	Capacitive Coupling	125 °C	-40 C	Automotive	AEC-Q100
Skyworks Solutions Inc. SI8286CC-AS	4 A	125 V/ns	2 A	4.1 A	16-SOIC	3750 Vrms	1	16-SOIC	7.5 mm	0.295 "	5 ns	13.2 V	30 V	CQC CSA UL VDE	Surface Mount	50 ns	Capacitive Coupling	125 °C	-40 C	Automotive	AEC-Q100
Skyworks Solutions Inc. SI8286ED-IS	4 A	125 V/ns	2 A	4.1 A	16-SOIC		1	16-SOIC	7.5 mm	0.295 "	5 ns	16 V	30 V	CQC CSA UR VDE	Surface Mount	50 ns	Capacitive Coupling	125 °C	-40 C
Skyworks Solutions Inc. SI8286EC-ISR	4 A	125 V/ns	2 A	4.1 A	16-SOIC	3750 Vrms	1	16-SOIC	7.5 mm	0.295 "	5 ns	16 V	30 V	CQC CSA UL VDE	Surface Mount	50 ns	Capacitive Coupling	125 °C	-40 C
Skyworks Solutions Inc. SI8286BC-ASR	4 A	125 V/ns	2 A	4.1 A	16-SOIC	3750 Vrms	1	16-SOIC	7.5 mm	0.295 "	5 ns	10 V	30 V	CQC CSA UL VDE	Surface Mount	50 ns	Capacitive Coupling	125 °C	-40 C	Automotive	AEC-Q100
Skyworks Solutions Inc. SI8286BD-IS	4 A	125 V/ns	2 A	4.1 A	16-SOIC		1	16-SOIC	7.5 mm	0.295 "	5 ns	10 V	30 V	CQC CSA UR VDE	Surface Mount	50 ns	Capacitive Coupling	125 °C	-40 C
