052852 Series

Manufacturer: Molex

Catalog

CONN FFC CONNECTOR SKT 23 POS 1MM SOLDER RA SMD EASY-ON™ T/R

Part	Voltage Rating	Flat Flex Type	Material Flammability Rating	Contact Finish	Features	Connector/Contact Type	Cable End Type	Mounting Type	Pitch [x]	Pitch [x]	Termination	Mating Cycles	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness	Contact Material	Number of Positions	Height Above Board	Height Above Board
Molex 0528522370	50 V	FFC FPC	UL94 V-0	Tin Bismuth	Solder Retention	Contacts Bottom	Straight	Surface Mount Right Angle	0.039 in	1 mm	Solder	10	0.5 A	-20 C	80 C	0.3 mm	Phosphor Bronze	23	3.1 mm	0.122 in
Molex 0528520470	50 V	FFC FPC	UL94 V-0	Tin Bismuth	Solder Retention	Contacts Bottom	Straight	Surface Mount Right Angle	0.039 in	1 mm	Solder	10	0.5 A	-20 C	80 C	0.3 mm	Phosphor Bronze	4	3.1 mm	0.122 in

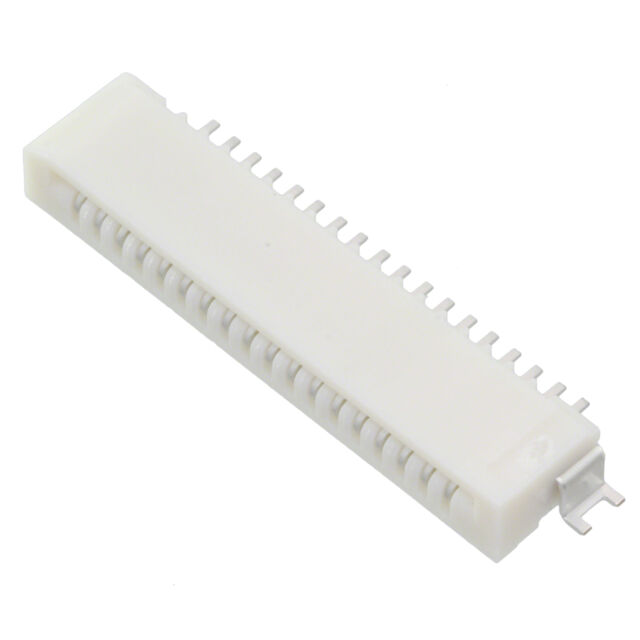

Molex 0528521870	50 V	FFC FPC	UL94 V-0	Tin Bismuth	Solder Retention	Contacts Bottom	Straight	Surface Mount Right Angle	0.039 in	1 mm	Solder	10	0.5 A	-20 C	80 C	0.3 mm	Phosphor Bronze	18	3.1 mm	0.122 in
Molex 0528522970	50 V	FFC FPC	UL94 V-0	Tin Bismuth	Solder Retention	Contacts Bottom	Straight	Surface Mount Right Angle	0.039 in	1 mm	Solder	10	0.5 A	-20 C	80 C	0.3 mm	Phosphor Bronze	29	3.1 mm	0.122 in
Molex 0528521170	50 V	FFC FPC	UL94 V-0	Tin Bismuth	Solder Retention	Contacts Bottom	Straight	Surface Mount Right Angle	0.039 in	1 mm	Solder	10	0.5 A	-20 C	80 C	0.3 mm	Phosphor Bronze	11	3.1 mm	0.122 in

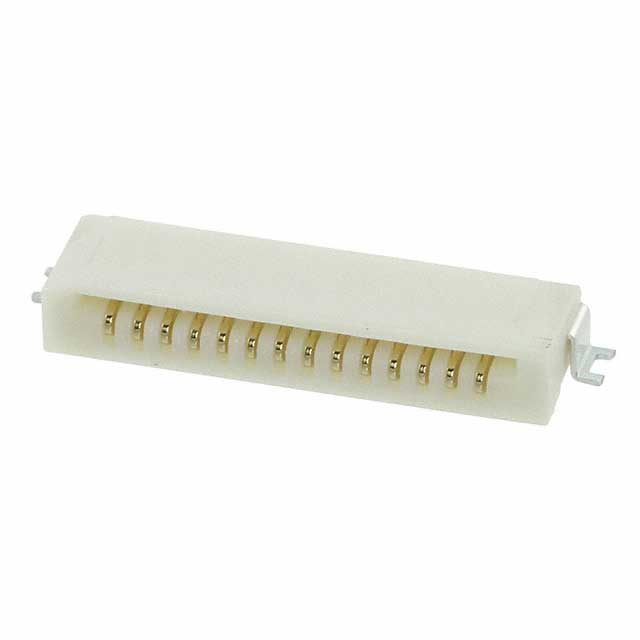

Molex 0528521472	50 V	FFC FPC	UL94 V-0	Gold	Solder Retention	Contacts Bottom	Straight	Surface Mount Right Angle	0.039 in	1 mm	Solder	10	0.5 A	-20 C	80 C	0.3 mm	Phosphor Bronze	14	3.1 mm	0.122 in

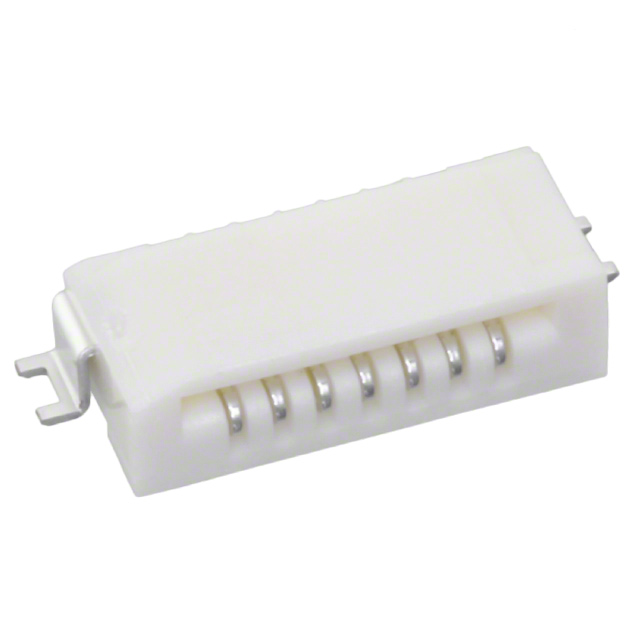

Molex 0528520770	50 V	FFC FPC	UL94 V-0	Tin Bismuth	Solder Retention	Contacts Bottom	Straight	Surface Mount Right Angle	0.039 in	1 mm	Solder	10	0.5 A	-20 C	80 C	0.3 mm	Phosphor Bronze	7	3.1 mm	0.122 in
