1807-0 Series

Catalog

CONN RECEPT PIN .015-.025" .330"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness	Tail Diameter [diameter]	Tail Diameter [diameter]	Length - Overall	Length - Overall	Contact Finish	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type
Mill-Max Manufacturing Corp. 1807-0-15-01-43-14-04-0	-55 C	125 °C	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.25 Ám	10 Áin	0.46 mm	0.018 in	8.38 mm	0.33 in	Gold	Beryllium Copper	1.45 mm	0.057 in	Standard Tail

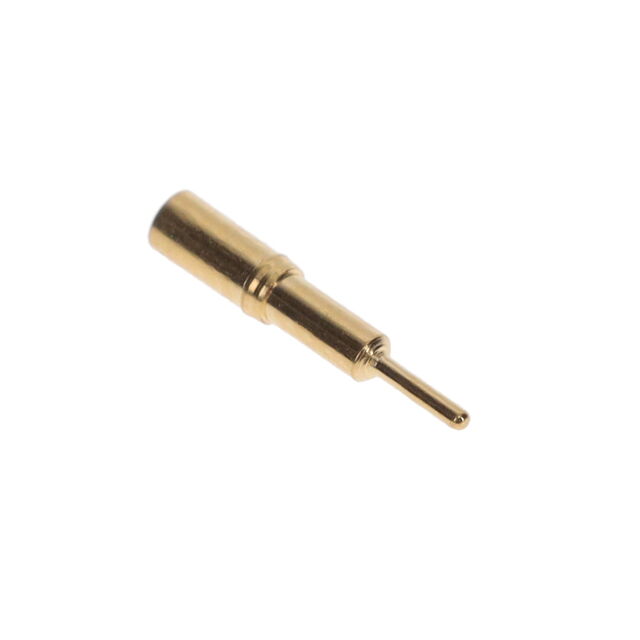

Mill-Max Manufacturing Corp. 1807-0-15-15-43-27-04-0	-55 C	125 °C	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.76 Ám	30 Áin	0.46 mm	0.018 in	8.38 mm	0.33 in	Gold	Beryllium Copper	1.45 mm	0.057 in	Standard Tail
Mill-Max Manufacturing Corp. 1807-0-15-01-43-27-04-0	-55 C	125 °C	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.76 Ám	30 Áin	0.46 mm	0.018 in	8.38 mm	0.33 in	Gold	Beryllium Copper	1.45 mm	0.057 in	Standard Tail
Mill-Max Manufacturing Corp. 1807-0-15-80-43-14-04-0	-55 C	125 °C	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.25 Ám	10 Áin	0.46 mm	0.018 in	8.38 mm	0.33 in	Gold	Beryllium Copper	1.45 mm	0.057 in	Standard Tail

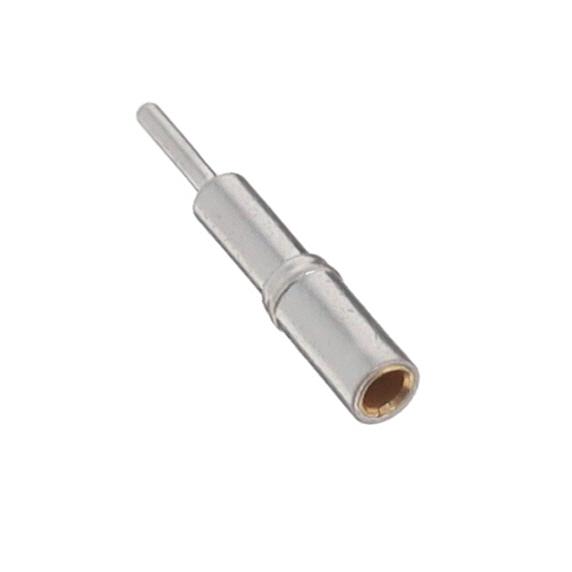

Mill-Max Manufacturing Corp. 1807-0-15-80-43-27-04-0	-55 C	125 °C	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.76 Ám	30 Áin	0.46 mm	0.018 in	8.38 mm	0.33 in	Gold	Beryllium Copper	1.45 mm	0.057 in	Standard Tail
