1825142 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

SWITCH TOGGLE SPDT 5A 120V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Bushing Thread	Voltage Rating - DC	Features	Illumination	Actuator Type	Voltage Rating - AC	Switch Function	Actuator Material	Mounting Type	Electrical Life	Termination Style	Actuator Length [x]	Circuit	Ingress Protection	Current Rating (Amps)
TE Connectivity Raychem Cable Protection 3-1825142-1	-30 ░C	85 °C	Unthreaded	28 V	Process Sealed	Non-Illuminated	Standard Round	120 V	On-Off-On	Brass Nickel Plated	Through Hole	6000 Cycles	PC Pin	0.5 in	SPDT	IP67 - Dust Tight Waterproof	5 A
TE Connectivity Raychem Cable Protection 3-1825142-7	-30 ░C	85 °C	Unthreaded	20 V	Process Sealed	Non-Illuminated	Standard Round	20 V	Mom-Off-Mom	Brass Nickel Plated	Right Angle Through Hole Vertical	6000 Cycles	PC Pin	7.62 mm	SPDT	IP67 - Dust Tight Waterproof	0.4 VA

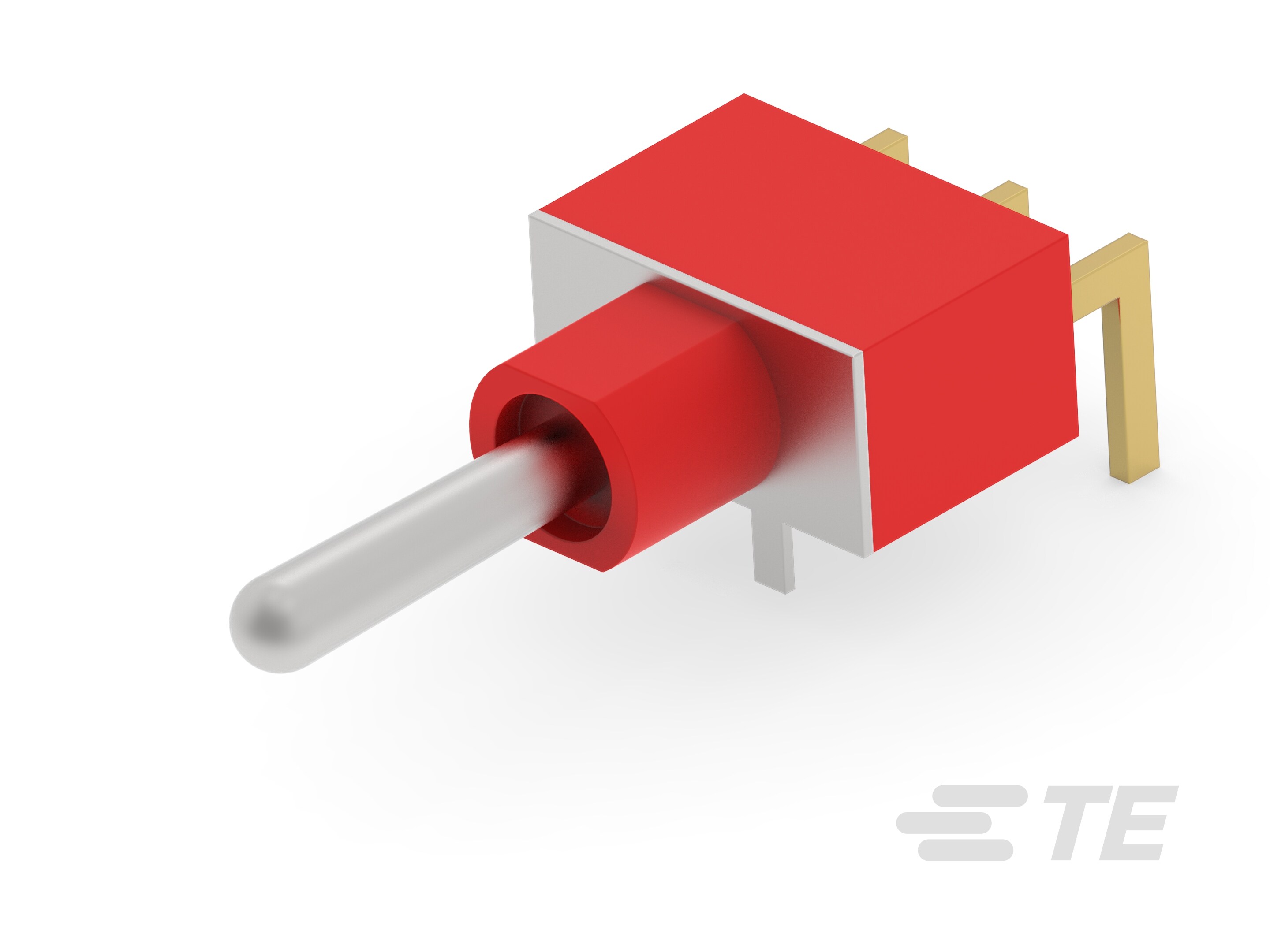

TE Connectivity Raychem Cable Protection 1-1825142-5	-30 ░C	85 °C	Unthreaded	20 V	Process Sealed	Non-Illuminated	Standard Round	20 V	On-On	Brass Nickel Plated	Through Hole Right Angle	6000 Cycles	PC Pin	0.5 in	SPDT	IP67 - Dust Tight Waterproof	0.4 VA
TE Connectivity Raychem Cable Protection 1-1825142-8	-30 ░C	85 °C	Unthreaded	20 V	Process Sealed	Non-Illuminated	Standard Round	20 V	On-On	Brass Nickel Plated	Right Angle Through Hole Vertical	6000 Cycles	PC Pin	0.5 in	SPDT	IP67 - Dust Tight Waterproof	0.4 VA
TE Connectivity Raychem Cable Protection 2-1825142-5	-30 ░C	85 °C	Unthreaded	20 V	Process Sealed	Non-Illuminated	Standard Round	20 V	On-Off-On	Brass Nickel Plated	Right Angle Through Hole Vertical	6000 Cycles	PC Pin	7.62 mm	SPDT	IP67 - Dust Tight Waterproof	0.4 VA
TE Connectivity Raychem Cable Protection 2-1825142-4	-30 ░C	85 °C	Unthreaded	20 V	Process Sealed	Non-Illuminated	Standard Round	20 V	On-Off-On	Brass Nickel Plated	Through Hole Right Angle	6000 Cycles	PC Pin	7.62 mm	SPDT	IP67 - Dust Tight Waterproof	0.4 VA
TE Connectivity Raychem Cable Protection 1-1825142-6	-30 ░C	85 °C	Unthreaded	28 V	Process Sealed	Non-Illuminated	Standard Round	120 V	On-On	Brass Nickel Plated	Through Hole Right Angle	6000 Cycles	PC Pin	0.5 in	SPDT	IP67 - Dust Tight Waterproof	5 A
