1437576 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

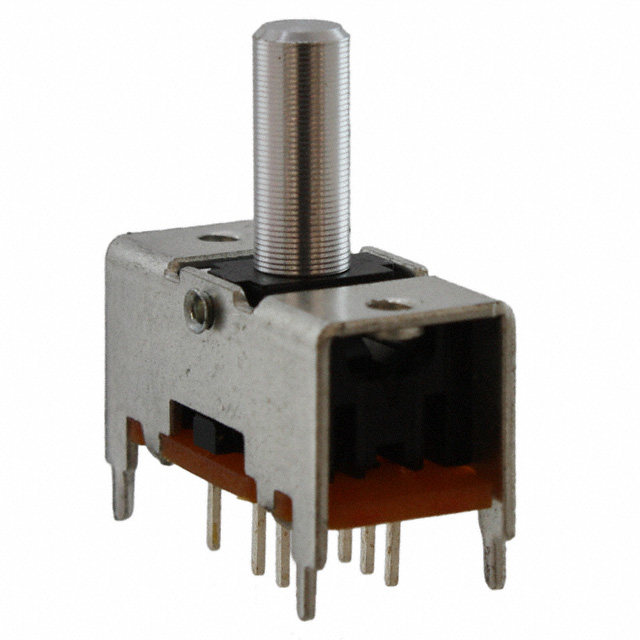

SWITCH SLIDE DP3T 300MA 125V
| Part | Voltage Rating - DC | Features | Termination Style | Operating Force [Min] | Operating Force [Max] | Actuator Length [x] | Switch Function | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Circuit | Actuator Type | Actuator Material | Voltage Rating - AC | Contact Timing | Mounting Type | Mechanical Life | Switch Travel | Contact Finish | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 12 V | Epoxy Sealed Terminals | PC Pin | 200 gf | 600 gf | 12 mm | On-On-On | 10000 Cycles | 55 °C | -15 °C | Copper Alloy | DP3T | Baton | ABS Plastic Aluminum Cap | 125 V | Non-Shorting | Through Hole | 10000 Steps | 30 ° | Silver | 200 mA 300 mA |
