115-93 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN IC DIP SOCKET 50POS GOLD

Part	Termination	Termination Post Length [x]	Termination Post Length [x]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Material - Mating	Features	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Current Rating (Amps)	Contact Material - Post	Pitch - Post	Pitch - Post	Housing Material	Pitch - Mating	Pitch - Mating	Type	Type	Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Material Flammability Rating	Termination Post Length	Termination Post Length
Mill-Max Manufacturing Corp. 115-93-650-41-001000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C	25	2	50	3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm

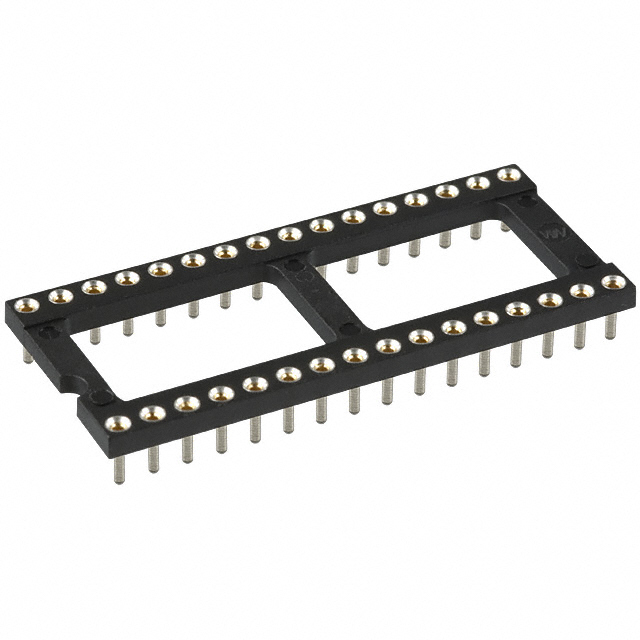

Mill-Max Manufacturing Corp. 115-93-632-41-003000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C				3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm	2 x 16	32

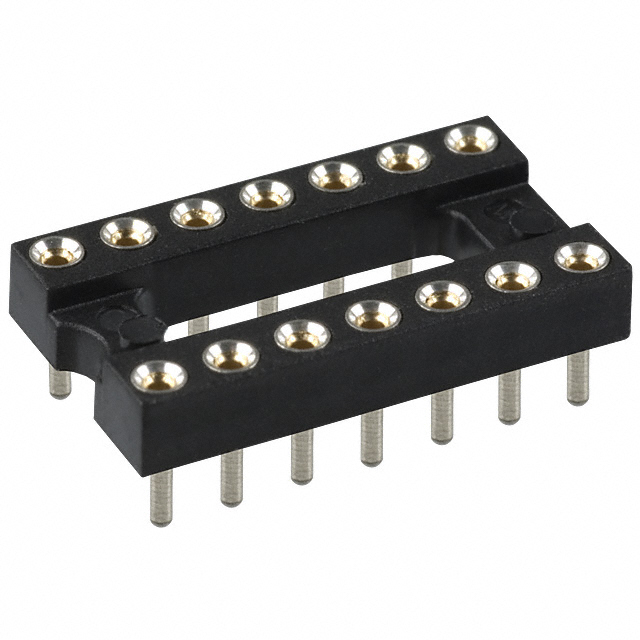

Mill-Max Manufacturing Corp. 115-93-314-41-001000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C				3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm			14
Mill-Max Manufacturing Corp. 115-93-964-61-001000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C				3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.9 in	22.86 mm			64	UL94 V-0
Mill-Max Manufacturing Corp. 115-93-632-61-001000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C				3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm	2 x 16	32		UL94 V-0
Mill-Max Manufacturing Corp. 115-93-324-61-001000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C				3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm			24	UL94 V-0
Mill-Max Manufacturing Corp. 115-93-322-61-001000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C				3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm			22	UL94 V-0
Mill-Max Manufacturing Corp. 115-93-650-41-003000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C	25	2	50	3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm

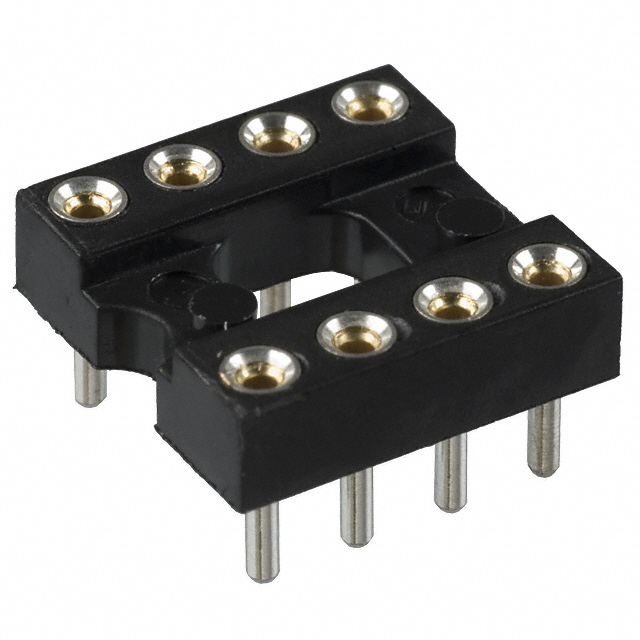

Mill-Max Manufacturing Corp. 115-93-308-41-001000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C				3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm			8
Mill-Max Manufacturing Corp. 115-93-420-61-003000	Solder			Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C				3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.4 in	10.16 mm			20	UL94 V-0	2.41 mm	0.095 in
