0908-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

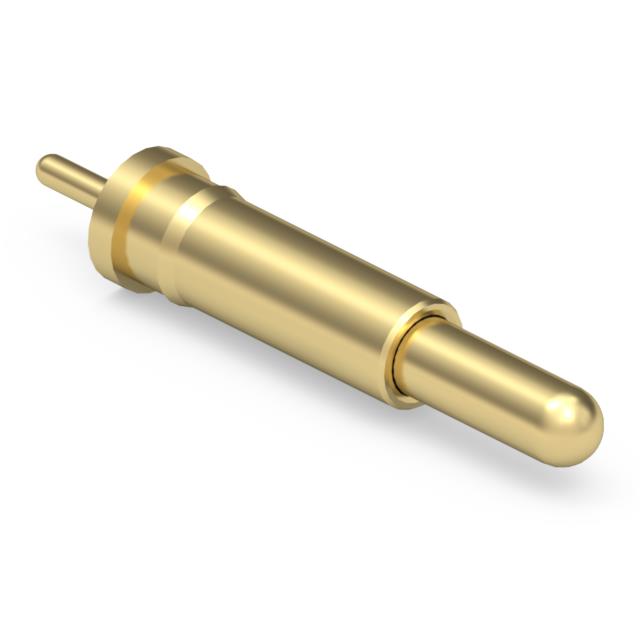

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Recommended Working Height | Recommended Working Height | Contact Finish | Minimum Working Height | Minimum Working Height | Contact Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Plunger Size [diameter] | Plunger Size [diameter] | Pad Layout Dimension | Pad Layout Dimension | Contact Material | Operating Force - Initial | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Operating Force - Mid Compression | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2 A 5.2 A | 0.287 in | 7.3 mm | Gold | 0.26 in | 6.6 mm | Sleeve & Plunger (Pogo Pins) | 8 mm | 0.315 in | 0.042 in | 1.07 mm | 0.072 in | 1.83 mm | Brass Alloy | 10 gf | Through Hole | 20 µin | 0.51 µm | 60 gf | 1000000 |
