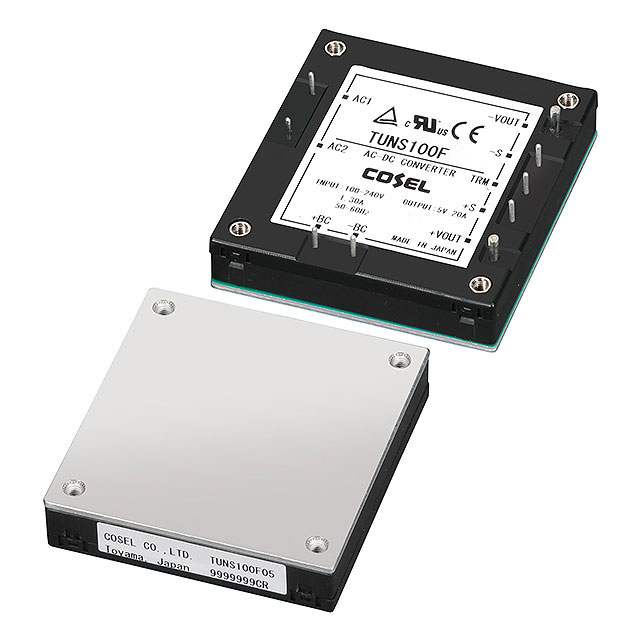

TUNS100 Series

Catalog

AC/DC CONVERTER 24V 100W

Part	Load Regulation	Line Regulation	Efficiency	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Approval Agency	Current - Output (Max) [Max]	Package / Case	Type	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Applications	Features	Mounting Type
Cosel USA, Inc. TUNS100F24	48 mV	48 mV	86 %	1	58.4 mm	12.7 mm	2.3 in	61 mm	2.4 in	0.5 in	100 W	CE CSA cURus TUV UL	4.2 A	7-DIP Module	Enclosed	60950-1 62368-1	-40 °C	100 °C	24 V	ITE (Commercial)	Universal Input	Through Hole
Cosel USA, Inc. TUNS100F05	10 mV	10 mV	85 %	1	58.4 mm	12.7 mm	2.3 in	61 mm	2.4 in	0.5 in	100 W	CE CSA cURus TUV UL	20 A	7-DIP Module	Enclosed	60950-1 62368-1	-40 °C	100 °C	5 V	ITE (Commercial)	Universal Input	Through Hole
Cosel USA, Inc. TUNS100F12	24 mV	24 mV	85 %	1	58.4 mm	12.7 mm	2.3 in	61 mm	2.4 in	0.5 in	100 W	CE CSA cURus TUV UL	8.4 A	7-DIP Module	Enclosed	60950-1 62368-1	-40 °C	100 °C	12 V	ITE (Commercial)	Universal Input	Through Hole
