109P0412 Series

DC Fans DC Axial Fan, 40x40x15mm, 12VDC, Locked Rotor Sensor

Manufacturer: Sanyo Denki America Inc.

Catalog

DC Fans DC Axial Fan, 40x40x15mm, 12VDC, Locked Rotor Sensor

Catalog

DC Fans DC Axial Fan, 40x40x15mm, 12VDC, Locked Rotor Sensor

Part	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Material - Blade	Static Pressure	Static Pressure	Power (Watts)	Bearing Type	Noise	Weight	Weight	Size / Dimension [x]	Size / Dimension [z]	Features	Air Flow	Air Flow	Termination	Width [y]	RPM	Fan Type	Approval Agency	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Width [x]	Weight [custom]	Weight [custom]
Sanyo Denki America Inc. 109P0412H6D01	110 mA	13.8 VDC	7 V	Plastic	Plastic	0.264 in H2O	65.7 Pa	1.32 W	Ball	33 dB(A)	45.81 g	0.101 lb	40 mm	40 mm	Locked Rotor Sensor	8 CFM	0.224 mł/min	3 Wire Leads	20 mm	8000 RPM	Tubeaxial	CSA TUV UL	12 VDC	-20 ░C	70 °C
Sanyo Denki America Inc. 109P0412J3013	0.35 A	13.2 VDC	7 V	Plastic	Plastic	0.843 in H2O	210 Pa	4.2 W	Ball	44 dB(A)	52.16 g	0.115 lb	40 mm	40 mm	Locked Rotor Protection Speed Sensor (Tach)	16.2 CFM	0.454 m³/min	3 Wire Leads		12500 RPM	Tubeaxial	CSA TUV UL	12 VDC	-20 ░C	60 °C	40000 Hrs	60 °C	-4 °F	28 mm

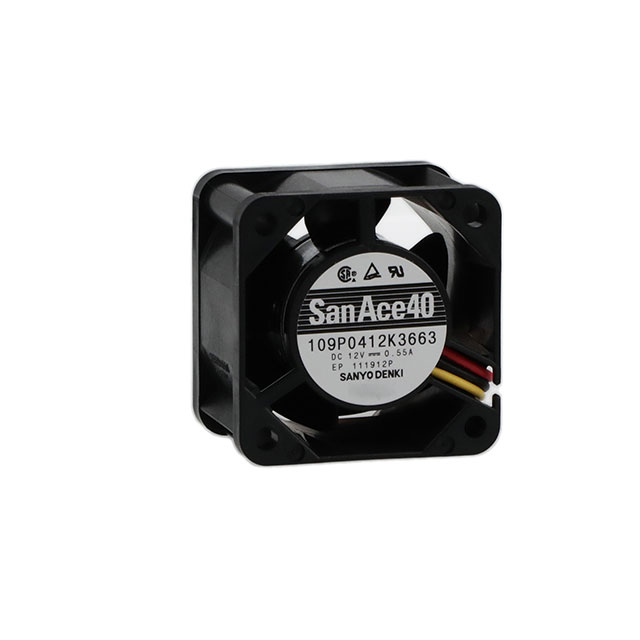

Sanyo Denki America Inc. 109P0412K3663	0.61 A	13.2 VDC	8 V	Plastic	Plastic				Ball	50 dB(A)	52.16 g	0.115 lb	40 mm	40 mm	Locked Rotor Protection Speed Sensor (Tach)			3 Position Rectangular Connector		15500 RPM	Tubeaxial	CSA TUV UL	12 VDC	-20 ░C	70 °C				28 mm
Sanyo Denki America Inc. 109P0412H702		13.8 VDC	10.2 VDC	Plastic	Plastic	0.303 in H2O	75.5 Pa	1.56 W	Ball	28 dB			40 mm	40 mm		6.4 CFM	0.179 mł/min	2 Wire Leads	15 mm	7700 RPM	Tubeaxial	CSA TUV UL	12 VDC	-20 ░C	70 °C					32.21 g	0.071 lb
Sanyo Denki America Inc. 109P0412H3023	195 mA	13.8 VDC	7 V	Plastic	Plastic	0.414 in H2O	102.9 Pa	2.34 W	Ball	37 dB	52.16 g	0.115 lb	40 mm	40 mm		11.3 CFM	0.316 m³/min	2 Wire Leads		8700 RPM	Tubeaxial	CSA TUV UL	12 VDC	-20 ░C	70 °C				28 mm
Sanyo Denki America Inc. 109P0412H7D01		13.8 VDC	10.2 VDC	Plastic	Plastic	0.303 in H2O	75.5 Pa	1.56 W	Ball	28 dB			40 mm	40 mm	Locked Rotor Sensor	6.4 CFM	0.179 mł/min	3 Wire Leads	15 mm	7700 RPM	Tubeaxial	CSA TUV UL	12 VDC	-20 ░C	70 °C					32.21 g	0.071 lb
Sanyo Denki America Inc. 109P0412R702		13.8 VDC	7 V	Plastic	Plastic	0.449 in H2O	111.8 Pa	1.56 W	Ball	34 dB(A)			40 mm	40 mm		8 CFM	0.224 mł/min	2 Wire Leads	15 mm	9700 RPM	Tubeaxial	CSA TUV UL	12 VDC	-20 ░C	70 °C	40000 Hrs				32.21 g	0.071 lb
Sanyo Denki America Inc. 109P0412G301	390 mA	13.2 VDC	7 V	Plastic	Plastic			3.72 W	Ball	42 dB	52.16 g	0.115 lb	40 mm	40 mm	Locked Rotor Protection Speed Sensor (Tach)			3 Wire Leads		11500 RPM	Tubeaxial	CSA TUV UL	12 VDC	-20 ░C	60 °C		60 °C	-4 °F	28 mm
Sanyo Denki America Inc. 109P0412G601	0.28 A	13.8 VDC	7 V	Plastic	Plastic	0.618 in H2O	153.8 Pa	3.36 W	Ball	44 dB(A)	45.81 g	0.101 lb	40 mm	40 mm	Speed Sensor (Tach)	12.4 CFM	0.347 m³/min	3 Wire Leads	20 mm	12500 RPM	Tubeaxial	CSA TUV UL	12 VDC	-20 ░C	60 °C	40000 Hrs	60 °C	-4 °F
Sanyo Denki America Inc. 109P0412M601	60 mA	13.8 VDC	8 V	Plastic	Plastic	0.106 in H2O	26.4 Pa	720 mW	Ball	24 dB	45.81 g	0.101 lb	40 mm	40 mm	Speed Sensor (Tach)	4.8 CFM	0.134 m³/min	3 Wire Leads	20 mm	5000 RPM	Tubeaxial	CSA TUV UL	12 VDC	-20 ░C	70 °C
