001527 Series
Manufacturer: Molex
Beta
⌘K

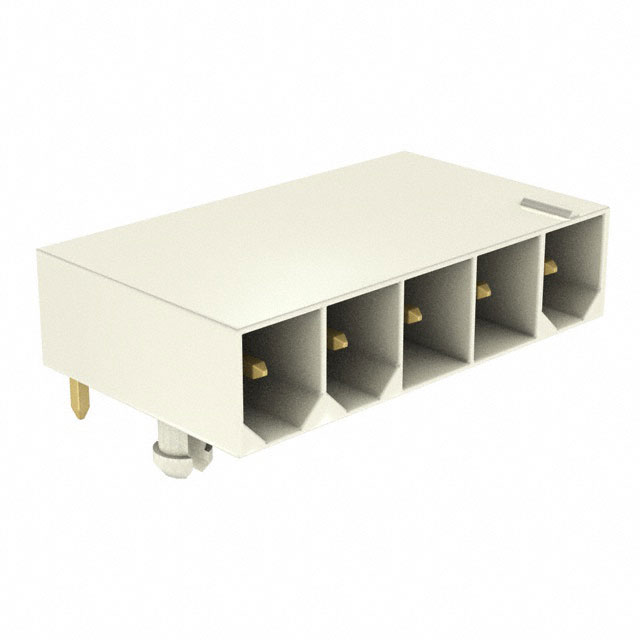

CONN HEADER R/A 5POS 4.2MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Contact Finish - Mating | Insulation Color | Insulation Height [z] | Insulation Height [z] | Contact Material | Material Flammability Rating | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Features | Contact Shape | Style | Mounting Type | Termination | Insulation Material | Number of Positions | Fastening Type | Number of Rows | Connector Type | Pitch - Mating | Pitch - Mating | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 2.54 µm | 100 µin | General Purpose Industrial Telecommunications | Gold | Natural | 12.8 mm | 0.504 " | Brass | UL94 V-2 | Shrouded - 4 Wall | 0.38 µm | 15 µin | Tin | All | 0.138 in | 3.5 mm | Board Lock | Square | Board to Cable/Wire | Right Angle Through Hole | Solder | Nylon 6/6 Polyamide (PA66) | 5 | Locking Ramp | 1 | Header | 0.165 in | 4.2 mm | Male Pin |
