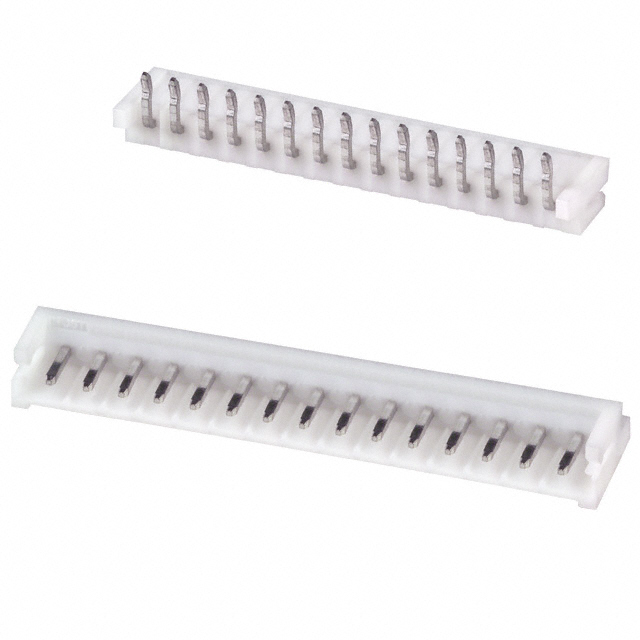

S15B-EH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 15POS 2.5MM
| Part | Pitch - Mating | Pitch - Mating | Style | Number of Positions | Voltage Rating | Insulation Height | Insulation Height | Contact Type | Contact Material | Contact Finish - Post | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Connector Type | Shrouding | Mounting Type | Current Rating (Amps) | Material Flammability Rating | Insulation Material | Fastening Type | Number of Rows | Termination | Contact Length - Mating | Contact Length - Mating | Contact Shape | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 2.5 mm | 0.098 in | Board to Cable/Wire | 15 | 250 V | 0.165 in | 4.2 mm | Male Pin | Brass | Tin | 0.126 " | 3.2 mm | 85 °C | -25 °C | All | Header | Shrouded - 3 Wall | Right Angle Through Hole | 3 A | UL94 V-0 | Nylon 6/6 Polyamide (PA66) | Latch Lock | 1 | Press-Fit Solder | 4 mm | 0.157 in | Square | Natural |
