P8-56 Series
Manufacturer: Panduit Corp
Beta
⌘K

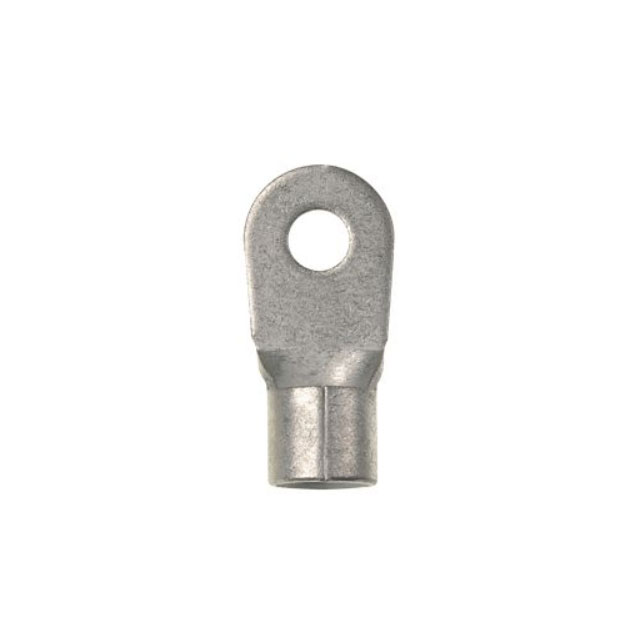

RING TONGUE TERMINAL, M8, 5/16", 8 AWG, 10 MM², P SERIES
| Part | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Contact Material | Wire Gauge | Thickness | Thickness | Termination | Width - Outer Edges [y] | Width - Outer Edges [y] | Stud/Tab Size | Insulation | Terminal Type | Features | Mounting Type | Length - Overall [x] | Length - Overall [x] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 0.28 in | 7.11 mm | Copper | 8 AWG | 0.04 in | 1.02 mm | Crimp | 14.99 mm | 0.59 in | 0.3125 Stud | Non-Insulated | Circular | Brazed Seam | Free Hanging (In-Line) | 31.75 mm | 1.25 " | Tin |
 Panduit Corp | Copper | 8 AWG | 0.04 in | 1.02 mm | Crimp | 14.99 mm | 0.59 in | 0.3125 Stud | Non-Insulated | D-Shaped | Brazed Seam | Free Hanging (In-Line) | 31.75 mm | 1.25 " | Nickel |
