AS3D03012 Series
Manufacturer: ANBON SEMICONDUCTOR (INT'L) LIMITED
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

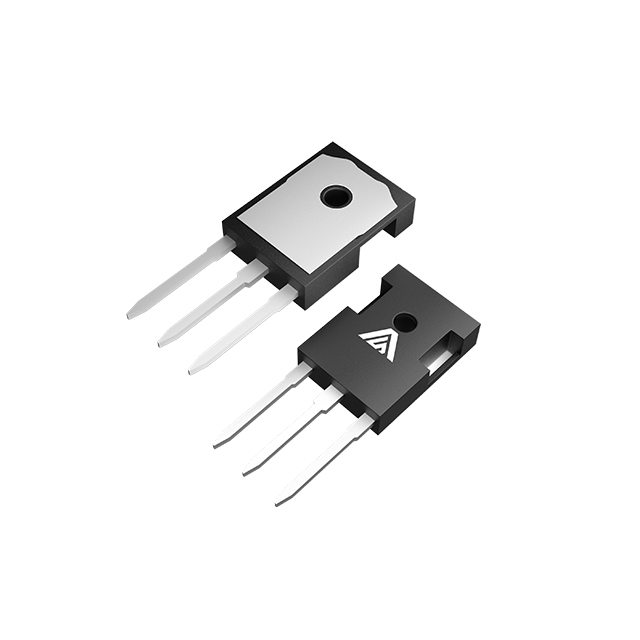

DIODE ARR SIC 1200V 42A TO247-3
| Part | Current - Average Rectified (Io) (per Diode) | Current - Reverse Leakage | Mounting Type | Voltage - Forward (Vf) (Max) | Package / Case | Voltage - DC Reverse (Vr) (Max) | Technology | Reverse Recovery Time (trr) | Package Name | Diode Pair Count | Diode Configuration | Speed - Fast Recovery (Minimum) | Speed | Speed - Recovery Current | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ANBON SEMICONDUCTOR (INT'L) LIMITED | 42 A | 20 µA | Through Hole | 1.8 V | TO-247-3 | 1200 V | SiC (Silicon Carbide) Schottky | 0 ns | TO-247-3 | 1 pair | Common Cathode | 500 mA | No Recovery Time | 500 mA 500 mA | 175 °C | -55 °C |
