EASR3216 Series

Catalog

LED YLW-GRN CLEAR 2SMD

Part	Current - Test	Configuration	Lens Size [x]	Lens Size [y]	Wavelength - Peak	Wavelength - Dominant	Lens Style	Lens Color	Height (Max) [z]	Package / Case	Voltage - Forward (Vf) (Typ)	Mounting Type	Color	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Supplier Device Package	Millicandela Rating	Height (Max) [Max] [z]	Lens Size [diameter]
Everlight Electronics Co Ltd EASR3216GA2	20 mA	Standard	1.4 mm	1.6 mm	575 nm	573 nm	Rectangle with Flat Top	Colorless	1.1 mm	1206 (3216 Metric)	2.05 V	Surface Mount	Yellow-Green	Clear	1.6 mm	3.2 mm	130 °	2-SMD	59 mcd

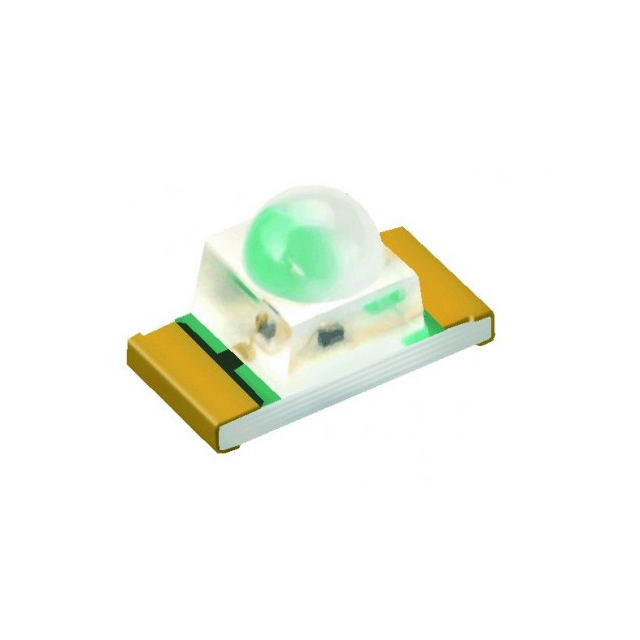

Everlight Electronics Co Ltd EASR3216RA5	20 mA				632 nm	626 nm	Round with Domed Top	Colorless		1206 (3216 Metric)	2.05 V	Surface Mount	Red	Clear	1.6 mm	3.2 mm	30 °	2-SMD	935 mcd	2 mm	1.6 mm
Everlight Electronics Co Ltd EASR3216GA0	20 mA	Standard	1.4 mm	1.6 mm	575 nm	574 nm	Rectangle with Flat Top	Colorless	1.1 mm	1206 (3216 Metric)	2 V	Surface Mount	Yellow-Green	Clear	1.6 mm	3.2 mm	130 °	2-SMD	25 mcd

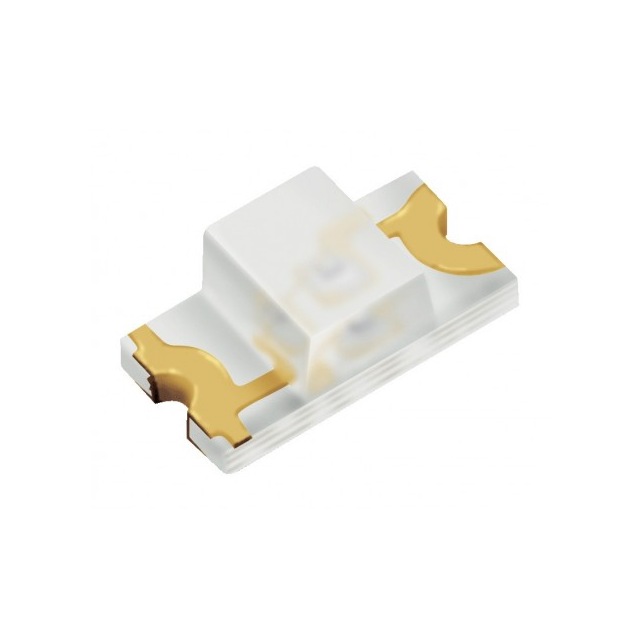

Everlight Electronics Co Ltd EASR3216RA1	20 mA	Standard	1.4 mm	1.6 mm	650 nm	638 nm	Rectangle with Flat Top	Colorless	1.1 mm	1206 (3216 Metric)	2.05 V	Surface Mount	Red	Clear	1.6 mm	3.2 mm	130 °	2-SMD	63 mcd
