963211 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

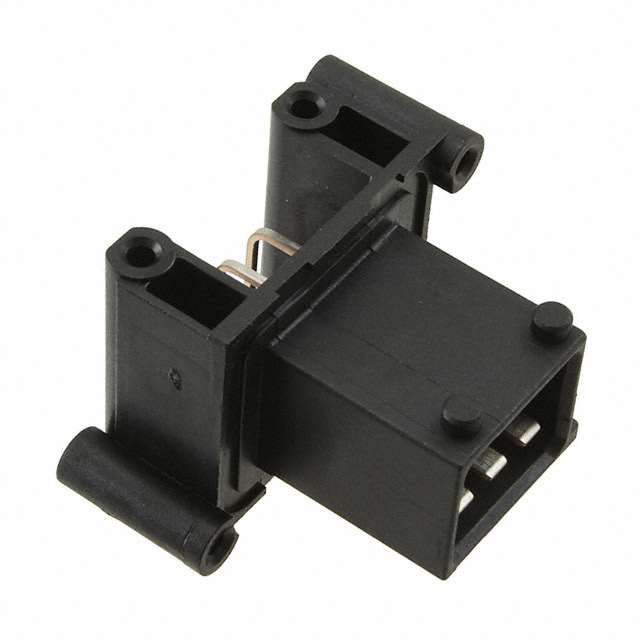

CONNECTOR, PLUG, 6POS, 2ROW, PCB
| Part | Applications | Features | Contact Finish - Post | Number of Rows [custom] | Contact Length - Post [x] | Contact Length - Post [x] | Style | Insulation Color | Insulation Material | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Shape | Mounting Type | Insulation Height | Insulation Height | Termination | Connector Type | Contact Type | Contact Material | Shrouding | Number of Positions Loaded | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Automotive General Purpose | Mounting Flange | Tin | 2 | 0.122 in | 3.1 mm | Board to Board Cable | Black | Polybutylene Terephthalate (PBT) Glass Filled | 0.236 in | 6 mm | 6 | 0.197 " | 5 mm | Rectangular | Right Angle Through Hole | 1.055 in | 26.8 mm | Solder | Plug | Tab | Copper Alloy | Shrouded - 4 Wall | All | Lever Lock |
