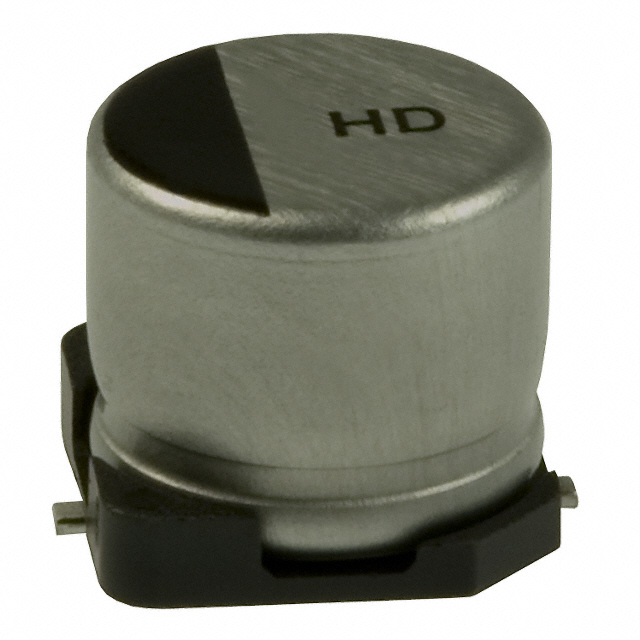

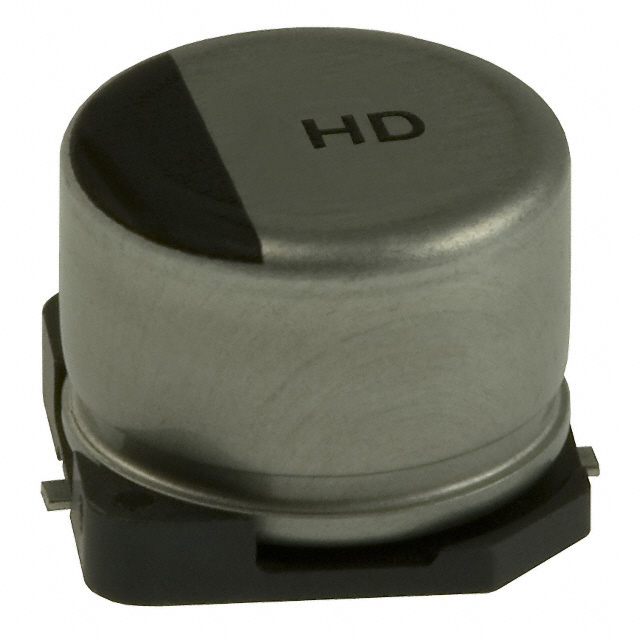

EEV-HD Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM 100UF 20% 35V SMD

Part	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Mounting Type	Package / Case	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Applications	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Impedance	Tolerance	Capacitance	Ripple Current @ High Frequency
Panasonic Industrial Automation Sales EEV-HD1V101P	5000 Hrs	-40 °C	105 ░C	101 mA	Surface Mount	Radial Can - SMD	35 V	10 mm	0.394 in	10.2 mm	0.402 "	Polar	General Purpose	10.3 mm	0.406 in	10.3 mm	0.406 "	800 mOhms	20 %	100 µF	171.7 mA
Panasonic Industrial Automation Sales EEV-HD1H330P	5000 Hrs	-40 °C	105 ░C	74 mA	Surface Mount	Radial Can - SMD	50 VDC	8 mm	0.315 "	10.2 mm	0.402 "	Polar	General Purpose	8.3 mm	0.327 "	8.3 mm	0.327 in	1.5 Ohms	20 %	33 ÁF	125.8 mA
Panasonic Industrial Automation Sales EEV-HD1A331P	5000 Hrs	-40 °C	105 ░C	118 mA	Surface Mount	Radial Can - SMD	10 V	10 mm	0.394 in	10.2 mm	0.402 "	Polar	General Purpose	10.3 mm	0.406 in	10.3 mm	0.406 "	800 mOhms	20 %	330 µF	200.6 mA
Panasonic Industrial Automation Sales EEV-HD1C221P	5000 Hrs	-40 °C	105 ░C	113 mA	Surface Mount	Radial Can - SMD	16 V	10 mm	0.394 in	10.2 mm	0.402 "	Polar	General Purpose	10.3 mm	0.406 in	10.3 mm	0.406 "	800 mOhms	20 %	220 µF	192.1 mA
Panasonic Industrial Automation Sales EEV-HD1HR47R	5000 Hrs	-40 °C	105 ░C	5 mA	Surface Mount	Radial Can - SMD	50 VDC	4 mm	0.157 in	5.8 mm	0.228 "	Polar	General Purpose	4.3 mm	0.169 in	4.3 mm	0.169 "	12 Ohms	20 %	0.47 µF	8.5 mA
Panasonic Industrial Automation Sales EEV-HD1J220P	5000 Hrs	-40 °C	105 ░C	65 mA	Surface Mount	Radial Can - SMD	63 V	8 mm	0.315 "	10.2 mm	0.402 "	Polar	General Purpose	8.3 mm	0.327 "	8.3 mm	0.327 in	1.5 Ohms	20 %	22 µF	110.5 mA
Panasonic Industrial Automation Sales EEV-HD2A220P	5000 Hrs	-40 °C	105 ░C	70 mA	Surface Mount	Radial Can - SMD	100 V	10 mm	0.394 in	10.2 mm	0.402 "	Polar	General Purpose	10.3 mm	0.406 in	10.3 mm	0.406 "	800 mOhms	20 %	22 µF	119 mA
Panasonic Industrial Automation Sales EEV-HD1H100P	5000 Hrs	-40 °C	105 ░C	33 mA	Surface Mount	Radial Can - SMD	50 VDC	6.3 mm	0.248 in	5.8 mm	0.228 "	Polar	General Purpose	6.6 mm	0.26 in	6.6 mm	0.26 in	4 Ohms	20 %	10 µF	56.1 mA
Panasonic Industrial Automation Sales EEV-HD1E101P	5000 Hrs	-40 °C	105 ░C	84 mA	Surface Mount	Radial Can - SMD	25 VDC	8 mm	0.315 "	10.2 mm	0.402 "	Polar	General Purpose	8.3 mm	0.327 "	8.3 mm	0.327 in	1.5 Ohms	20 %	100 µF	142.8 mA
Panasonic Industrial Automation Sales EEV-HD1A101P	5000 Hrs	-40 °C	105 ░C	62 mA	Surface Mount	Radial Can - SMD	10 V	8 mm	0.315 "	6.2 mm	0.244 in	Polar	General Purpose	8.3 mm	0.327 "	8.3 mm	0.327 in	2 Ohms	20 %	100 µF	105.4 mA
