SFV12R Series

Catalog

CONN FPC TOP 12POS 0.5MM R/A

Part	Actuator Color	Housing Color	Connector/Contact Type	Contact Finish	Flat Flex Type	Cable End Type	Actuator Material	Termination	FFC, FCB Thickness	Pitch	Pitch	Number of Positions	Contact Material	Housing Material	Mounting Type	Locking Feature	Features	Height Above Board [z]	Height Above Board [z]	Material Flammability Rating	Mating Cycles	Current Rating (Amps)	Voltage Rating	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness
Amphenol ICC (FCI) SFV12R-3STAE1HLF	Gray	Black	Contacts Top	Gold	FPC	Tabbed	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Solder	0.33 mm	0.02 "	0.5 mm	12	Phosphor Bronze	Glass Filled Halogen Free Nylon Polyamide (PA)	Right Angle Surface Mount	Slide Lock	Solder Retention	0.071 in	1.8 mm	UL94 V-0

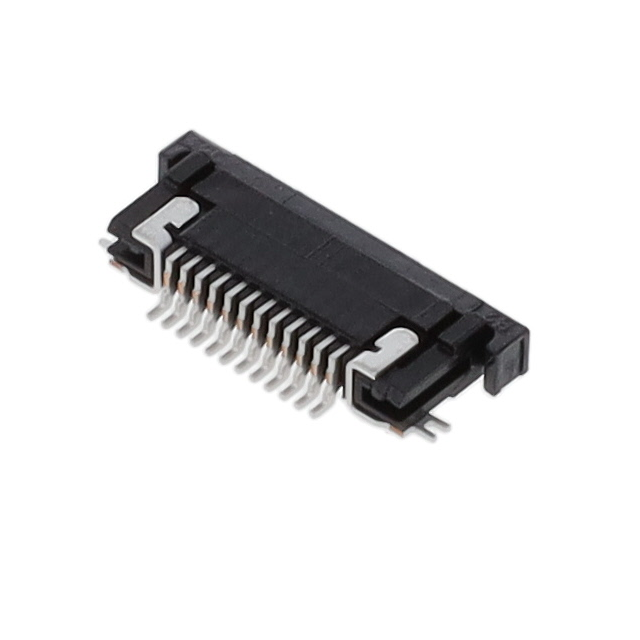

Amphenol ICC (FCI) SFV12R-1STE9HLF	Black	Black	Contacts Bottom	Tin	FFC FPC	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Solder		0.02 "	0.5 mm	12	Phosphor Bronze	Glass Filled Halogen Free Nylon Polyamide (PA)	Right Angle Surface Mount	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	0.071 in	1.8 mm	UL94 V-0	20	0.5 A	50 V	0.3 mm	0.33 mm	-55 C	105 ░C

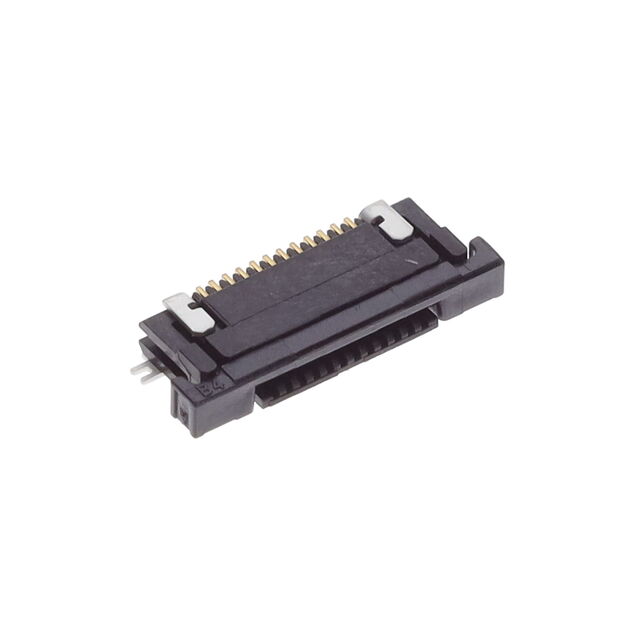

Amphenol ICC (FCI) SFV12R-1STBE1HLF	Black	Black	Contacts Bottom	Gold	FFC FPC	Tapered	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Solder	0.3 mm	0.02 "	0.5 mm	12	Phosphor Bronze	Glass Filled Halogen Free Nylon Polyamide (PA)	Right Angle Surface Mount	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	0.071 in	1.8 mm	UL94 V-0	20	0.5 A	50 V			-55 C	105 ░C
Amphenol ICC (FCI) SFV12R-1STBE9HLF	Black	Black	Contacts Bottom	Gold	FFC FPC	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Solder		0.02 "	0.5 mm	12	Phosphor Bronze	Glass Filled Halogen Free Nylon Polyamide (PA)	Right Angle Surface Mount	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	0.071 in	1.8 mm	UL94 V-0	20	0.5 A	50 V	0.3 mm	0.33 mm	-55 C	105 ░C	Flash

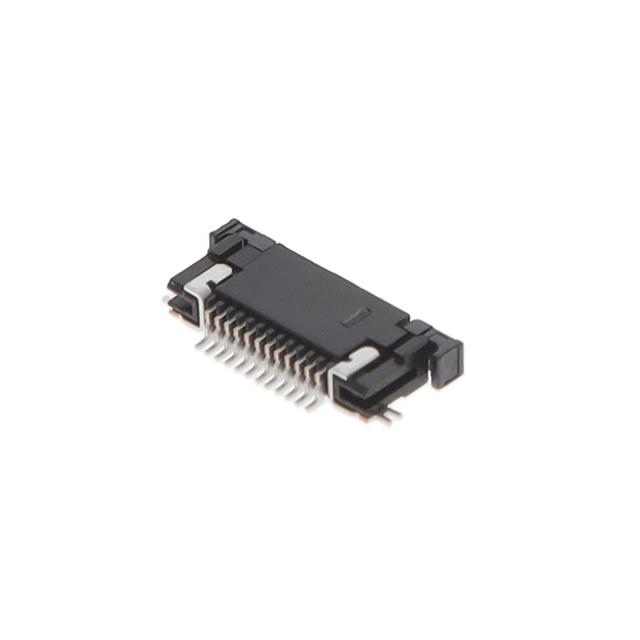

Amphenol ICC (FCI) SFV12R-2STAE1HLF	Black	Black	Contacts Top	Gold	FFC FPC	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Solder		0.02 "	0.5 mm	12	Phosphor Bronze	Glass Filled Halogen Free Nylon Polyamide (PA)	Right Angle Surface Mount	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	0.071 in	1.8 mm	UL94 V-0	20	0.5 A	50 V	0.3 mm	0.33 mm	-55 C	105 ░C

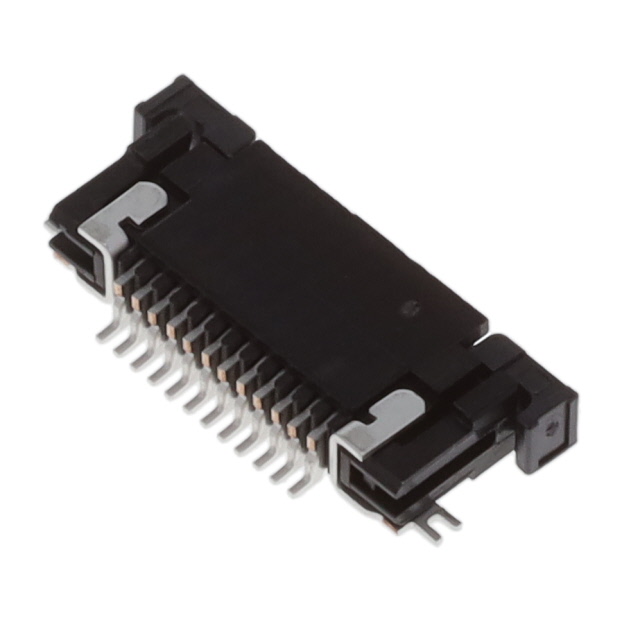

Amphenol ICC (FCI) SFV12R-2STE9HLF	Black	Black	Contacts Top	Tin	FFC FPC	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Solder		0.02 "	0.5 mm	12	Phosphor Bronze	Glass Filled Halogen Free Nylon Polyamide (PA)	Right Angle Surface Mount	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	0.071 in	1.8 mm	UL94 V-0	20	0.5 A	50 V	0.3 mm	0.33 mm	-55 C	105 ░C

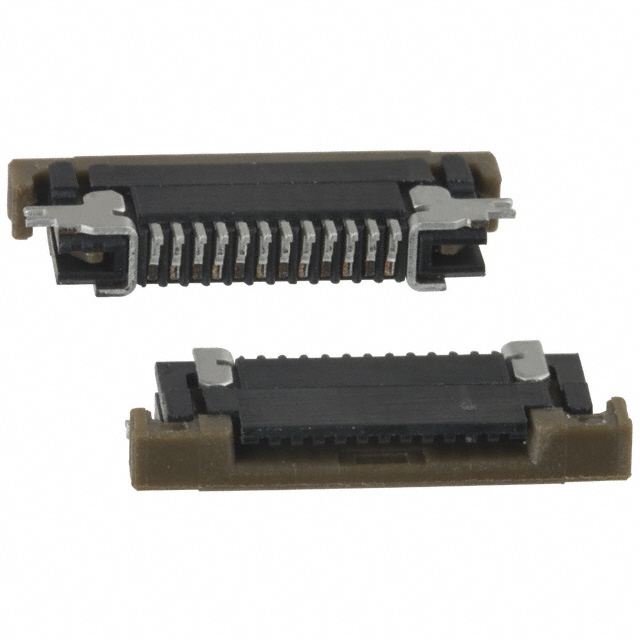

Amphenol ICC (FCI) SFV12R-2STE1LF	Brown	Black	Contacts Top	Tin	FFC FPC	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Solder		0.02 "	0.5 mm	12	Phosphor Bronze	Glass Filled Nylon Polyamide (PA)	Right Angle Surface Mount	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	0.071 in	1.8 mm	UL94 V-0		0.5 A	50 V	0.3 mm	0.33 mm	-55 C	105 ░C
Amphenol ICC (FCI) SFV12R-2STE5HLF	Black		Contacts Top			Straight Tapered		Solder		0.02 "	0.5 mm	12			Right Angle Surface Mount	Slide Lock		0.071 in	1.8 mm	UL94 V-0	20	0.5 A		0.3 mm	0.33 mm
Amphenol ICC (FCI) SFV12R-2STE1	Brown	Black	Contacts Top	Tin Alloy	FFC FPC	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Solder		0.02 "	0.5 mm	12	Phosphor Bronze	Glass Filled Nylon Polyamide (PA)	Right Angle Surface Mount	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	0.071 in	1.8 mm	UL94 V-0	20	0.5 A	50 V	0.3 mm	0.33 mm	-55 C	105 ░C

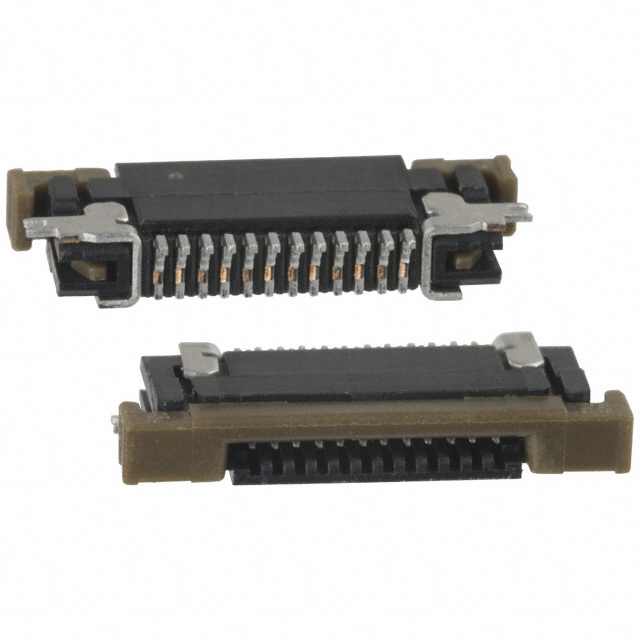

Amphenol ICC (FCI) SFV12R-1STE1LF	Brown	Black	Contacts Bottom	Tin	FFC FPC	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Solder		0.02 "	0.5 mm	12	Phosphor Bronze	Glass Filled Nylon Polyamide (PA)	Right Angle Surface Mount	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	0.071 in	1.8 mm	UL94 V-0		0.5 A	50 V	0.3 mm	0.33 mm	-55 C	105 ░C
