BLM21RK Series

Catalog

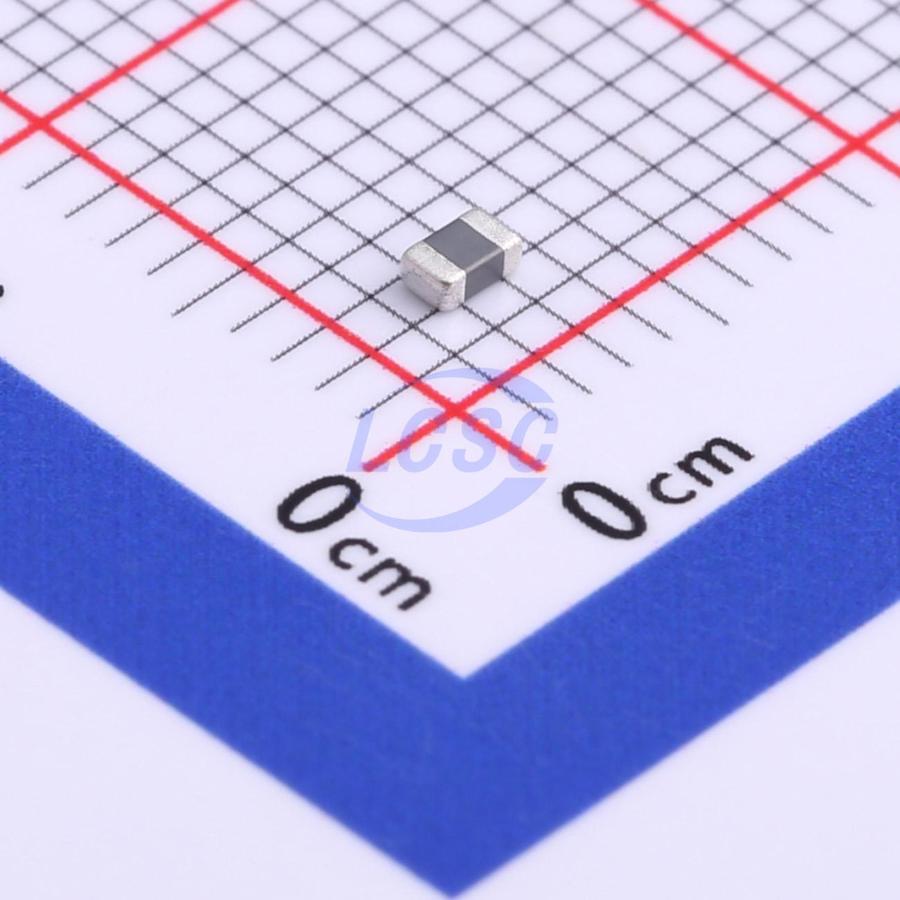

FERRITE BEAD, 0805 [2012 METRIC], 1 KOHM, 200 MA, EMIFIL BLM21RK SERIES, 0.5 OHM, ± 25%

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Max) [Max]	Height (Max) [z]	Height (Max) [z]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Number of Lines	Impedance @ Frequency	DC Resistance (DCR) (Max) [Max]
Murata Electronics BLM21RK102SN1D	2 mm	1.25 mm	0.049 "	0.079 in	200 mA	1.05 mm	0.041 in	-55 C	125 °C	Surface Mount	0805	1	1 kOhms	500 mOhm
Murata Electronics BLM21RK471SN1D	2 mm	1.25 mm	0.049 "	0.079 in	200 mA	1.05 mm	0.041 in	-55 C	125 °C	Surface Mount	0805	1	470 Ohms	250 mOhm
Murata Electronics BLM21RK121SN1D	2 mm	1.25 mm	0.049 "	0.079 in	200 mA	1.05 mm	0.041 in	-55 C	125 °C	Surface Mount	0805	1	120 Ohms	150 mOhm
