AC3200 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

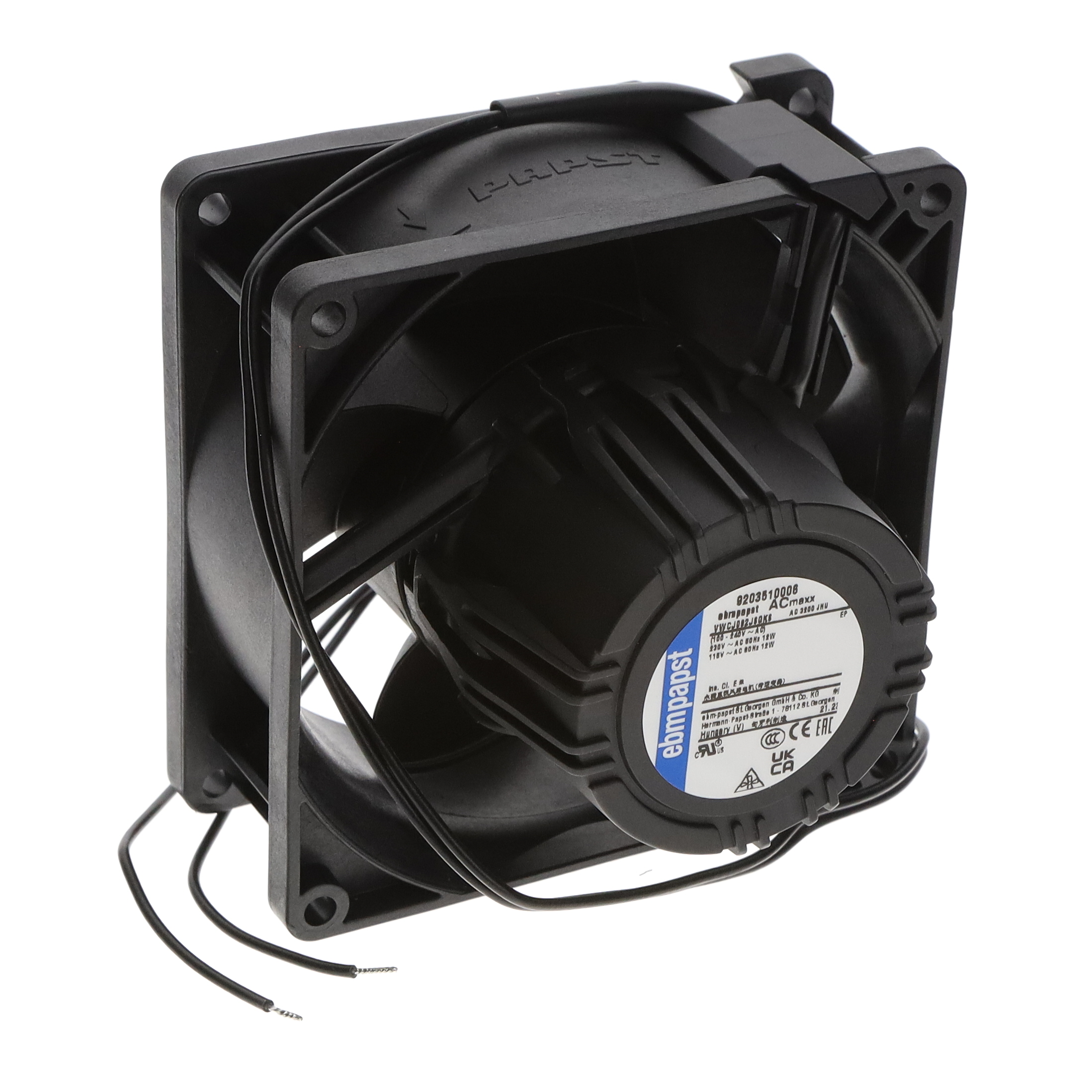

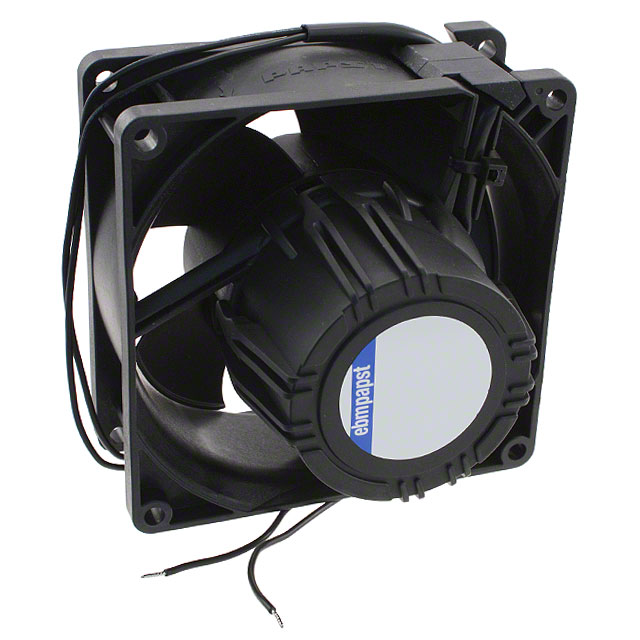

FAN AXIAL 92X38MM 85/265VAC WIRE
| Part | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Material - Blade | Operating Temperature [Min] | Operating Temperature [Max] | Fan Type | Ingress Protection | Termination | Size / Dimension [y] | Size / Dimension [x] | RPM | Approval Agency | Width [y] | Weight [custom] | Weight [custom] | Power (Watts) | Features | Bearing Type | Noise | Voltage - Rated | Air Flow | Air Flow | Material - Frame | Static Pressure | Static Pressure | Voltage - Rated [Max] | Voltage - Rated [Min] | Weight | Weight | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 265 VAC | 85 VAC | 70000 Hrs | Polyamide (PA) Nylon Fiberglass Reinforced | -20 ░C | 70 °C | Tubeaxial | IP20 | 2 Wire Leads | 92 mm | 92 mm | 6800 RPM | CCC CE CSA UL VDE | 38 mm | 0.716 lb | 324.77 g | 11 W | Electronic Commutation (EC) Locked Rotor Protection | Ball | 55 dB(A) | 115 VAC | 86 CFM | 2.41 m³/min | ||||||||
 ebm-papst Inc. | 70000 Hrs | Plastic | -20 ░C | 70 °C | Tubeaxial | IP65 - Dust Tight Water Resistant | 2 Wire Leads | 92 mm | 92 mm | CCC CE CSA UL VDE | 12 W | Auto Restart Dual Voltage | Ball | 55 dB(A) | 84.8 CFM | 2.37 m³/min | Plastic | 1.044 in H2O | 260 Pa | 230 VAC | 115 VAC | 0.717 lb | 325.22 g | 72 mm |
