E2K-F10 Series

Catalog

SENSOR PROX CAP 10MM IP66 BOX

Part	Shielding	Sensor Type	Output Type	Sensing Distance	Sensing Distance	Response Frequency	Material - Body	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Indicator [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Ingress Protection
Omron Electronics Inc-EMC Div E2K-F10MC1-6	Unshielded	Capacitive	NPN-NO 3-Wire	0.394 in	10 mm	100 Hz	Plastic	70 °C	-25 °C	Connector	LED	30 VDC	10 VDC

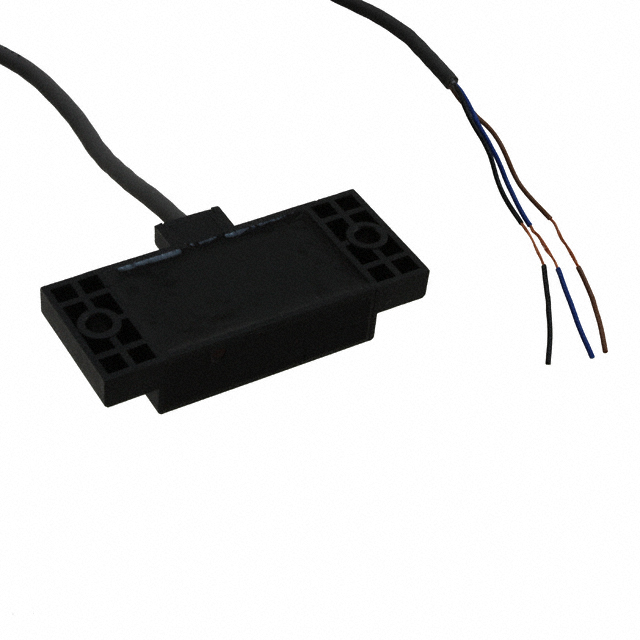

Omron Electronics Inc-EMC Div E2K-F10MC1	Unshielded	Capacitive	NPN-NO 3-Wire	0.394 in	10 mm	100 Hz	Plastic			Cable Leads	LED	30 VDC	10 VDC	55 °C	-10 °C

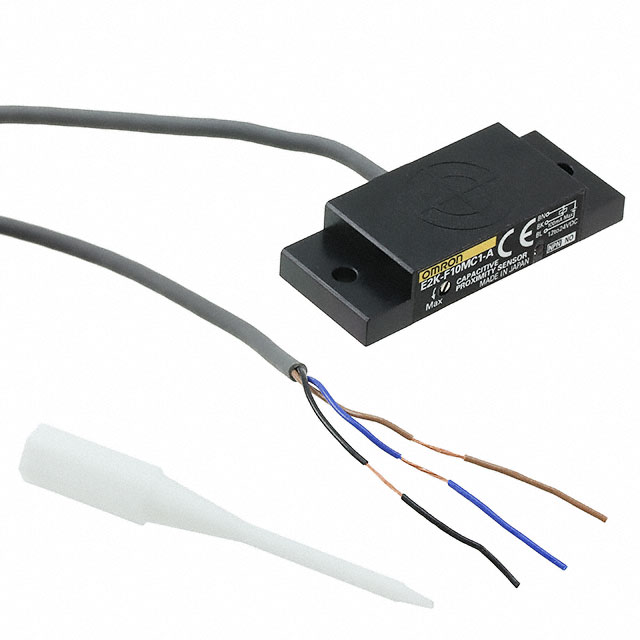

Omron Electronics Inc-EMC Div E2K-F10MC1-A 2M	Unshielded	Capacitive	NPN-NO 3-Wire			100 Hz	Plastic	70 °C	-25 °C	Cable Leads	LED	30 VDC	10 VDC			0.394 "	4 mm	10 mm	0.157 "	IP64
Omron Electronics Inc-EMC Div E2K-F10MC1 5M	Unshielded	Capacitive	NPN-NO 3-Wire	0.394 in	10 mm	100 Hz	Plastic			Cable Leads	LED	30 VDC	10 VDC	55 °C	-10 °C

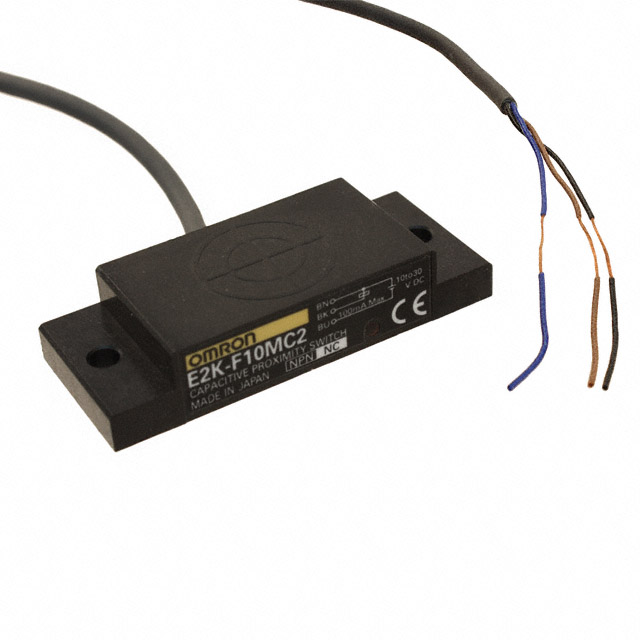

Omron Electronics Inc-EMC Div E2K-F10MC2-A 2M	Unshielded	Capacitive	NPN-NC 3-Wire			100 Hz	Plastic	70 °C	-25 °C	Cable Leads	LED	30 VDC	10 VDC			0.394 "	4 mm	10 mm	0.157 "	IP64
