EV6 Series

Catalog

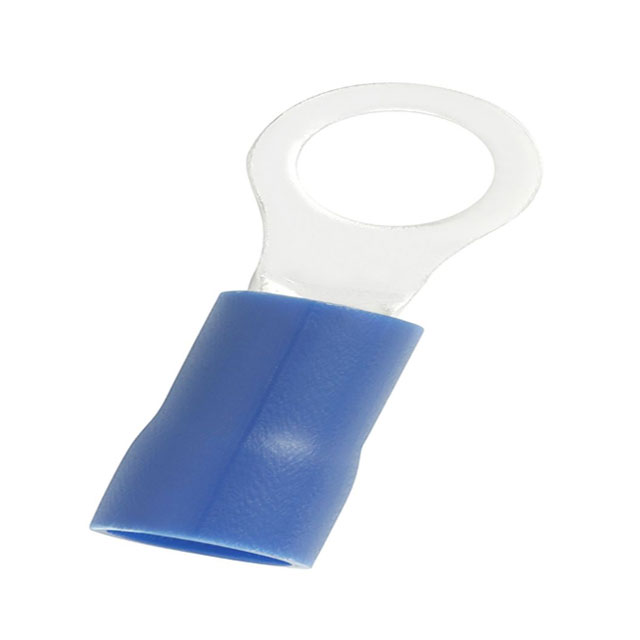

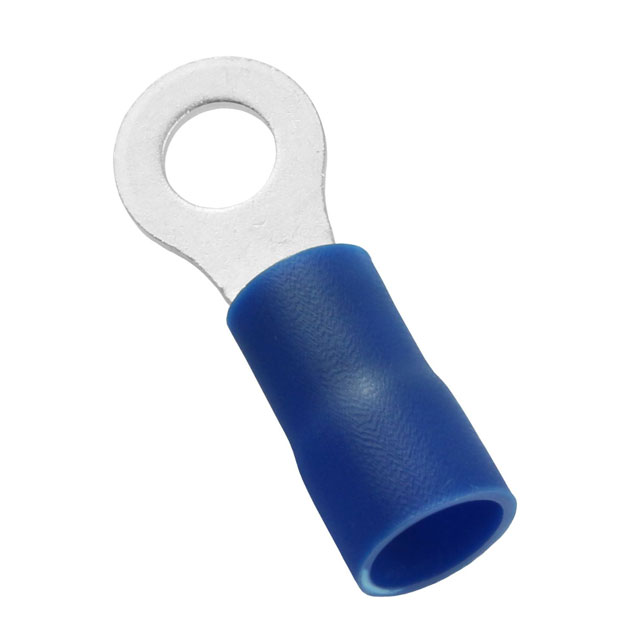

STRONGHOLD RING TERMINAL, VINYL

Part	Material - Insulation	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Mounting Type	Terminal Type	Length - Overall	Length - Overall	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Wire Gauge	Termination	Contact Finish	Features	Color	Contact Material	Thickness	Thickness	Insulation	Width - Outer Edges	Width - Outer Edges	Length - Overall [x]	Length - Overall [x]
Panduit Corp EV6-38R-Q	Vinyl	0.397 "	10.08 mm	Free Hanging (In-Line)	Circular	1.76 in	44.7 mm	0.375 Stud	0.63 in	16 mm	6 AWG	Crimp	Tin	Brazed Seam	Blue	Copper	0.059 "	1.5 mm	Insulated
Panduit Corp EV6-56R-Q	Vinyl	0.397 "	10.08 mm	Free Hanging (In-Line)	Circular	1.76 in	44.7 mm	0.3125 Stud	0.63 in	16 mm	6 AWG	Crimp	Tin	Brazed Seam	Blue	Copper	0.059 "	1.5 mm	Insulated
Panduit Corp EV6-12R-Q	Vinyl	0.397 "	10.08 mm	Free Hanging (In-Line)	Circular			0.5 Stud			6 AWG	Crimp	Tin	Brazed Seam	Blue	Copper	0.059 "	1.5 mm	Insulated	0.87 "	22.1 mm	2.1 in	53.34 mm
