725-021 Series
Manufacturer: EDAC Inc.
Beta
⌘K

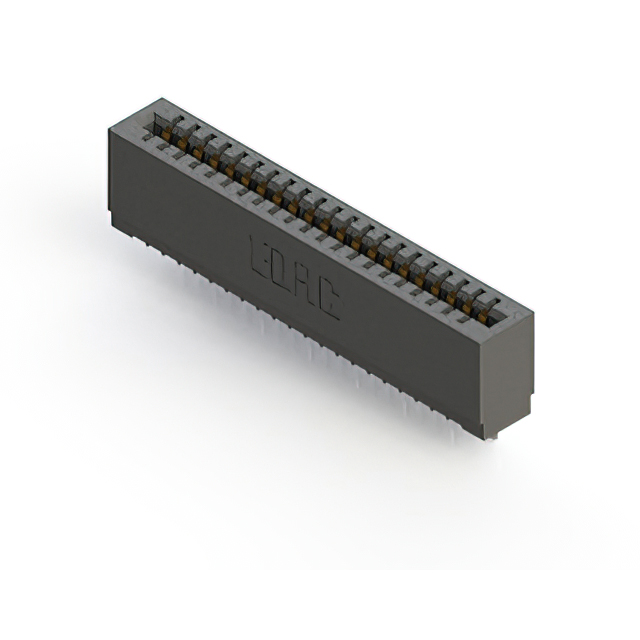

CONN EDGE SINGLE FML 21POS 0.100
| Part | Material - Insulation | Termination Rows | Color | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish Thickness | Contact Finish Thickness | Gender | Number of Positions | Contact Material | Number of Positions/Bay/Row [custom] | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Number of Rows | Contact Type | Card Type | Pitch | Pitch | Read Out |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Black | Gold | -40 C | 105 ░C | Press-Fit Wire Wrap | 30 Áin | 0.76 Ám | Female | 21 | Copper Alloy | 21 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 1 | Cantilever | Non Specified - Single Edge | 0.1 " | 2.54 mm | Single |
