RT5796 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K
IC REG BUCK ADJ 1.5A TSOT23-5
| Part | Current - Output | Frequency - Switching | Synchronous Rectifier | Output Configuration | Voltage - Input (Min) [Min] | Voltage - Output (Max) [Max] | Output Type | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Topology | Number of Outputs | Function | Voltage - Output (Min/Fixed) | Package / Case | Mounting Type | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Contents | Main Purpose | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Regulator Topology | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | 1.5 A | 1 MHz | Positive | 2.5 V | 3.4 V | Adjustable | TSOT-23-5 | 85 C | -40 ¯C | 5.5 V | Buck | 1 | Step-Down | 0.6 V | SOT-23-5 Thin TSOT-23-5 | Surface Mount | ||||||||||||
 Richtek USA Inc. | 1.5 A | 1 MHz | Positive | 2.5 V | 3.4 V | Adjustable | TSOT-23-6 | 85 C | -40 ¯C | 6 V | Buck | 1 | Step-Down | 0.6 V | SOT-23-6 Thin TSOT-23-6 | Surface Mount | ||||||||||||

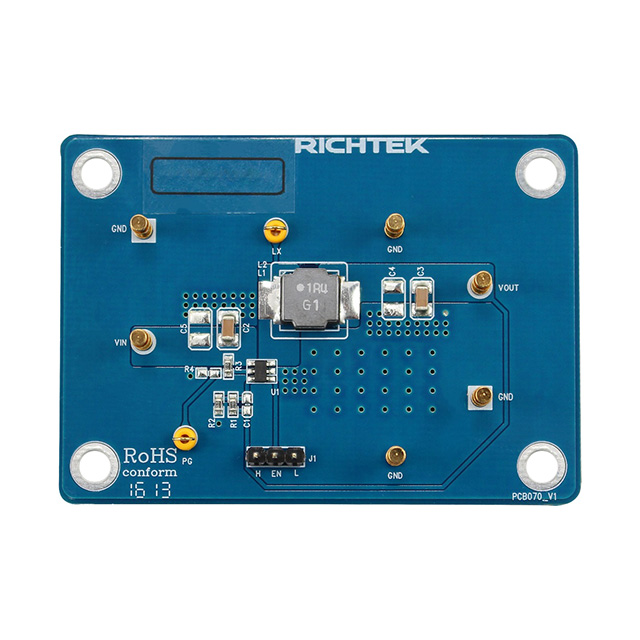

 Richtek USA Inc. | 1.5 A | 1 MHz | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | DC/DC Step Down | 6 V | 2.5 V | 1.2 V | Buck | RT5796A |
