19413100 Series
Manufacturer: HARTING
Beta
⌘K

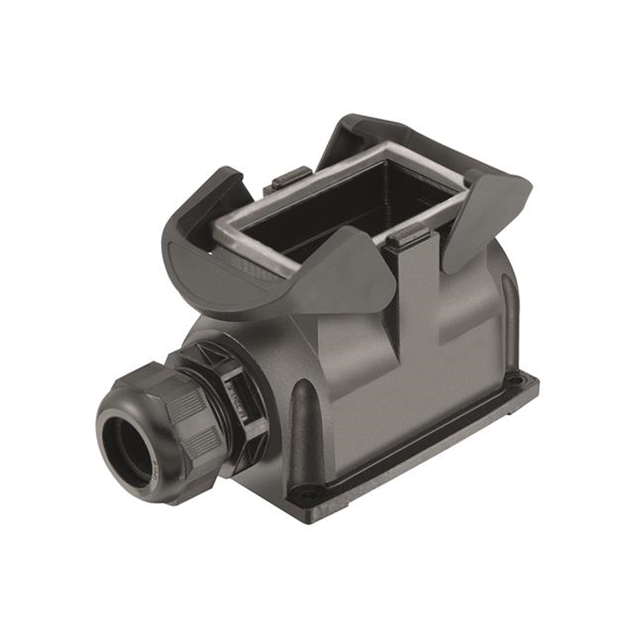

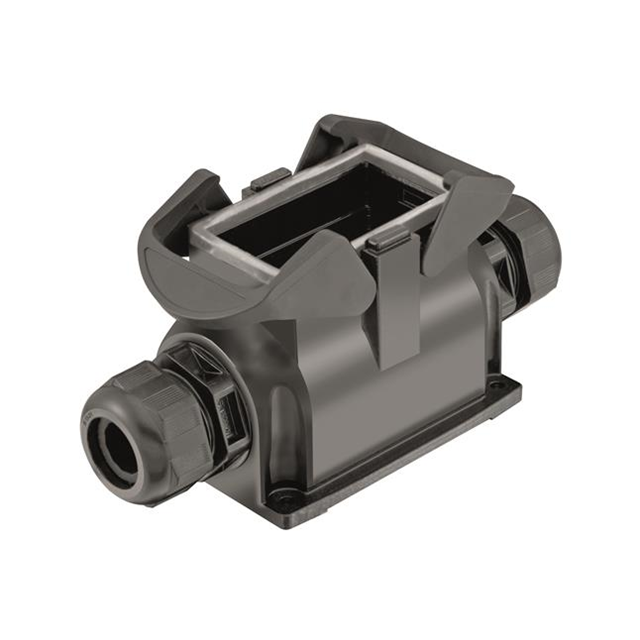

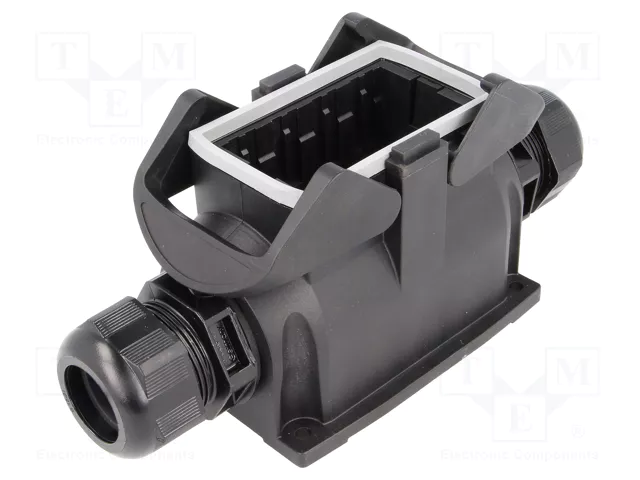

HAN-ECO MODULAR 10B SURFACE MOUNT HOUSING 1XM32 W/ GLAND - OUTDOOR (HOLDS CABLE 13-21MM)
| Part | Housing Material | Lock Location | Size | Housing Color | Ingress Protection | Connector Type | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] | Style | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Glass Filled Nylon Polyamide (PA) | Locking Clip (2) on Base Bottom | 10B | Black | IP65 - Dust Tight Water Resistant | Base - Box Mount | M32 | 125 °C | -40 C | Side Entry | 2.843 in | 72.2 mm | 99 mm | 68 mm | 3.898 in | 2.677 " | |
 HARTING | Glass Filled Nylon Polyamide (PA) | Locking Clip (2) on Base Bottom | 10B | Black | IP65 - Dust Tight Water Resistant | Base - Box Mount | M32 | 125 °C | -40 C | Side Entry Dual | 2.843 in | 72.2 mm | 99 mm | 68 mm | 3.898 in | 2.677 " | Feed Through |
