HLMP-AM Series
Manufacturer: Broadcom Limited
Beta
⌘K

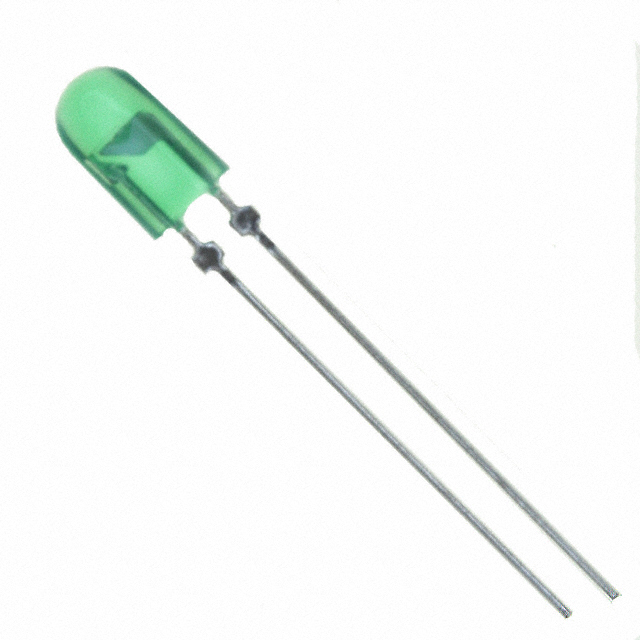

LED GREEN DIFFUSED 5MM OVAL T/H
| Part | Current - Test | Color | Mounting Type | Millicandela Rating | Voltage - Forward (Vf) (Typ) | Package / Case | Lens Color | Height (Max) [Max] [z] | Wavelength - Peak | Configuration | Lens Style | Lens Transparency | Viewing Angle | Supplier Device Package | Supplier Device Package [custom] | Lens Size [y] | Lens Size [x] | Wavelength - Dominant |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 20 mA | Green | Through Hole | 6150 mcd | 3.2 V | Radial | Green | 12.2 mm | 521 nm | Standard | Oval with Domed Top | Diffused | 30 ° 70 ° | OVAL | 5 mm | 3.9 mm | 5.4 mm | |
 Broadcom Limited | 20 mA | Green | Through Hole | 4850 mcd | 3.3 V | Radial | Green | 11.7 mm | 516 nm | Standard | Oval with Domed Top | Clear | OVAL | 5 mm | 3.8 mm | 5.5 mm | 525 nm | |
Broadcom Limited | 20 mA | Green | Through Hole | 3720 mcd | 3.3 V | Radial | Green | 11.7 mm | 516 nm | Standard | Oval with Domed Top | Diffused | 30 ° 70 ° | OVAL | 5 mm | 3.8 mm | 5.2 mm | 525 nm |
