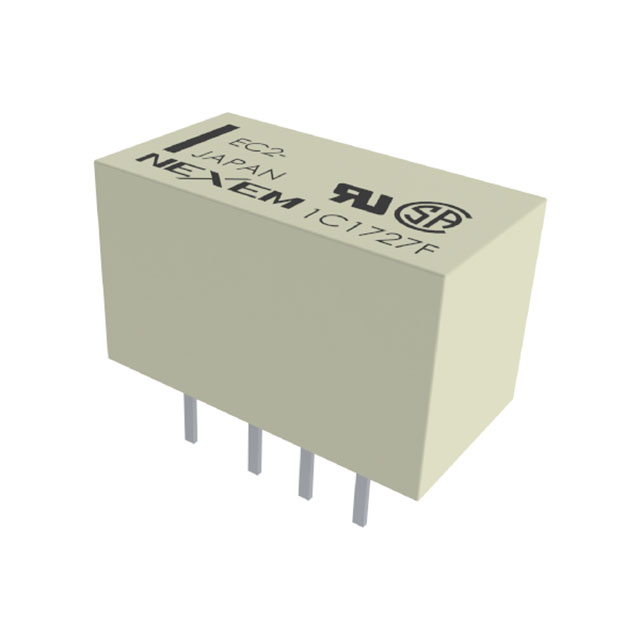

EC2-4.5 Series
Manufacturer: KEMET
Beta
⌘K
RELAY GEN PURPOSE DPDT 2A 4.5V
| Part | Load - Max Switching | Coil Resistance | Release Time | Operate Time | Coil Voltage | Contact Material | Contact Rating (Current) | Termination Style | Approval Agency | Mounting Type | Relay Type | Switching Voltage [Max] | Coil Current | Coil Type | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 60 W 125 VA 440 W 500 VA | 145 Ohms | 1 ms | 2 ms | 4.5 VDC | Gold Alloy Silver Alloy | 2 A | PC Pin | CSA TUV UL | Through Hole | General Purpose | 220 VDC 250 VAC | 31.1 mA | Dual Coil Latching | DPDT (2 Form C) | 85 °C | -40 C | 3.38 VDC | |
 KEMET | 60 W 125 VA | 1 ms | 2 ms | 4.5 VDC | Gold Alloy Silver Alloy | 2 A | PC Pin | CSA TUV UL | Through Hole | General Purpose | 220 VDC 250 VAC | 22.2 mA | Latching Single Coil | DPDT (2 Form C) | 85 °C | -40 C | 3.38 VDC | ||
 KEMET | 60 W 125 VA 440 W 500 VA | 145 Ohms | 1 ms | 2 ms | 4.5 VDC | Gold Alloy Silver Alloy | 2 A | PC Pin | CSA TUV UL | Through Hole | General Purpose | 220 VDC 250 VAC | 31.1 mA | Non Latching | DPDT (2 Form C) | 85 °C | -40 C | 3.38 VDC | 0.45 VDC |
