AWH 14A Series

Catalog

CONN HEADER R/A 14POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Style	Contact Finish Thickness - Mating	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Mounting Type	Contact Finish - Post	Termination	Contact Type	Insulation Height	Insulation Height	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Features	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Shrouding	Material Flammability Rating	Insulation Material	Fastening Type	Insulation Color	Contact Material	Connector Type	Contact Shape	Insulation Height [z]

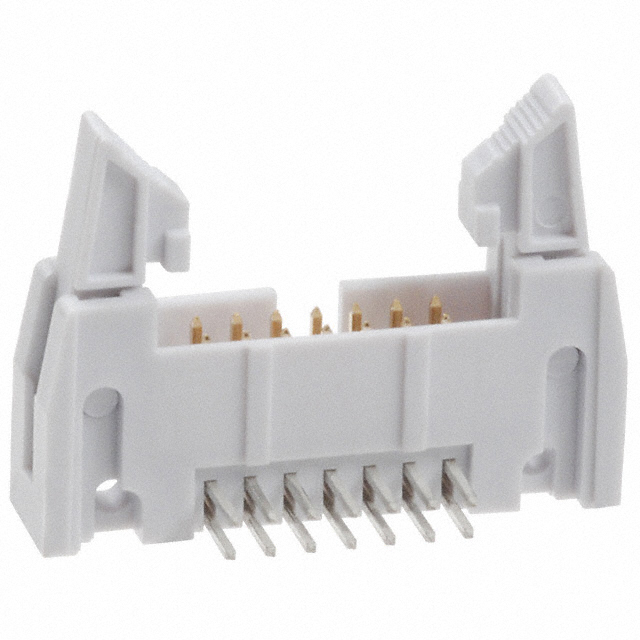

Assmann WSW Components AWH14A-0222-T-R	0.1 "	2.54 mm	Board to Cable/Wire	Flash	All	0.1 in	2.54 mm	14	Right Angle Through Hole	Tin	Solder	Male Pin	17 mm	0.669 in	2	-40 C	105 ░C	Gold	Keying Slot	3.81 mm	0.15 in	3 A	Shrouded - 4 Wall	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Latch Lock/Eject Hooks	Gray	Brass	Header	Square
Assmann WSW Components AWH 14A-0222-T	0.1 "	2.54 mm	Board to Cable/Wire	Flash	All	0.1 in	2.54 mm	14	Right Angle Through Hole	Tin	Solder	Male Pin	8.3 mm		2	-40 C	105 ░C	Gold	Keying Slot	3.81 mm	0.15 in	3 A	Shrouded - 4 Wall	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Latch Lock/Eject Hooks	Gray	Brass	Header	Square	0.327 "
