842-024 Series
Manufacturer: EDAC Inc.
Beta
⌘K

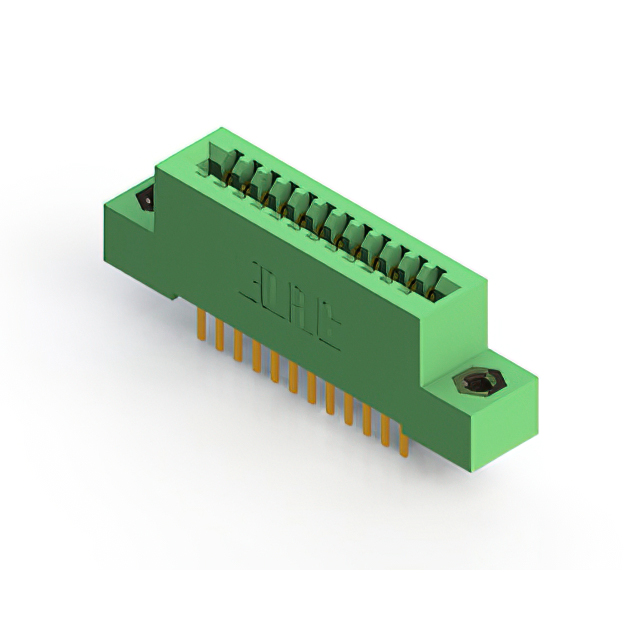

CONN EDGE DUAL FMALE 24POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Card Thickness [Max] | Card Thickness [Min] | Termination | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Material | Gender | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Rows [custom] | Pitch | Pitch | Contact Type | Number of Positions/Bay/Row | Mounting Type | Color | Read Out | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Non Specified - Dual Edge | 125 °C | -40 C | 24 | Copper Alloy | Female | 0.25 Ám | 10 Áin | Gold | 2 | 0.1 " | 2.54 mm | Cantilever | 12 | Through Hole | Green | Dual | |||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Non Specified - Dual Edge | 125 °C | -40 C | 24 | Copper Alloy | Female | 0.25 Ám | 10 Áin | Gold | 2 | 0.1 " | 2.54 mm | Cantilever | 12 | Right Angle Through Hole | Green | Dual | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Non Specified - Single Edge | 125 °C | -40 C | 24 | Copper Alloy | Female | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | Cantilever | 24 | Through Hole | Green | Single | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 1 | 1 | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Non Specified - Dual Edge | 125 °C | -40 C | 24 | Copper Alloy | Female | 0.25 Ám | 10 Áin | Gold | 2 | 0.1 " | 2.54 mm | Cantilever | 12 | Through Hole | Green | Dual | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Non Specified - Dual Edge | 125 °C | -40 C | 24 | Copper Alloy | Female | 0.25 Ám | 10 Áin | Gold | 2 | 0.1 " | 2.54 mm | Cantilever | 12 | Through Hole | Green | Dual | Flush Mount M3 Threaded Insert Top Opening | ||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Non Specified - Dual Edge | 125 °C | -40 C | 24 | Copper Alloy | Female | 0.25 Ám | 10 Áin | Gold | 2 | 0.1 " | 2.54 mm | Cantilever | 12 | Right Angle Through Hole | Green | Dual | 4-40 Flush Mount Threaded Insert Top Opening | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Non Specified - Single Edge | 125 °C | -40 C | 24 | Copper Alloy | Female | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | Cantilever | 24 | Through Hole | Green | Single | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 1 | 1 | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Non Specified - Single Edge | 125 °C | -40 C | 24 | Copper Alloy | Female | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | Cantilever | 24 | Through Hole | Green | Single | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 1 | 1 | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Non Specified - Single Edge | 125 °C | -40 C | 24 | Copper Alloy | Female | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | Cantilever | 24 | Through Hole | Green | Single | 1 | 1 | |||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Non Specified - Dual Edge | 125 °C | -40 C | 24 | Copper Alloy | Female | 0.25 Ám | 10 Áin | Gold | 2 | 0.1 " | 2.54 mm | Cantilever | 12 | Through Hole | Green | Dual | 4-40 Flush Mount Threaded Insert Top Opening |
