D4S20G Series
Manufacturer: Rosenberger
Beta
⌘K
CONN HSD FAKRA PLUG R/A 100OHM
| Part | Body Finish | Mating Cycles | Voltage Rating | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mounting Type | Number of Ports | Features | Contact Termination | Housing Color | Connector Style | Shield Termination | Center Contact Material | Impedance | Connector Type | Frequency - Max [Max] | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

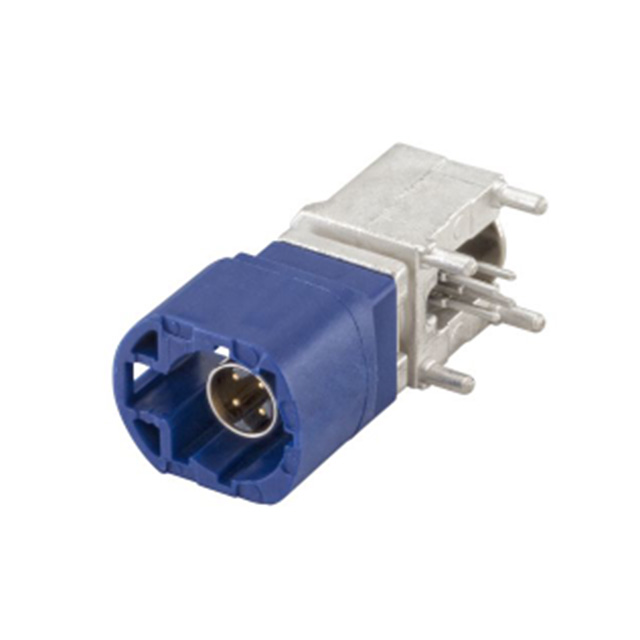

 Rosenberger | Nickel | 25 | 100 V | Brass | Gold | -40 C | 105 ░C | Liquid Crystal Polymer (LCP) | Right Angle Through Hole | 1 | Code C | Solder | Blue | Fakra HSD® Quadraxial | Solder | Bronze | 100 Ohms | Plug Male Pin | 2 GHz | Latch Lock |
 Rosenberger | Nickel | 25 | 100 V | Brass | Gold | -40 C | 105 ░C | Liquid Crystal Polymer (LCP) | Right Angle Through Hole | 1 | Code G | Solder | Gray | Fakra HSD® Quadraxial | Solder | Bronze | 100 Ohms | Plug Male Pin | 2 GHz | Latch Lock |
 Rosenberger | Nickel | 25 | 100 V | Brass | Gold | -40 C | 105 ░C | Liquid Crystal Polymer (LCP) | Right Angle Through Hole | 1 | Code E | Solder | Green | Fakra HSD® Quadraxial | Solder | Bronze | 100 Ohms | Plug Male Pin | 2 GHz | Latch Lock |

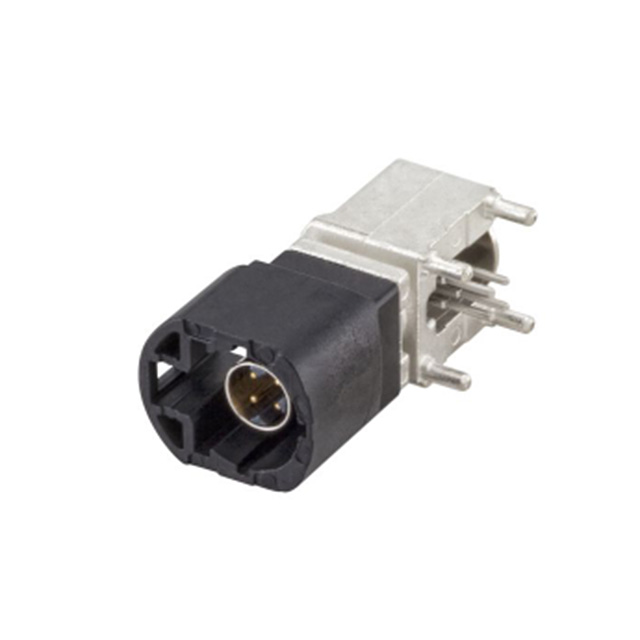

 Rosenberger | Nickel | 25 | 100 V | Brass | Gold | -40 C | 105 ░C | Liquid Crystal Polymer (LCP) | Right Angle Through Hole | 1 | Code A | Solder | Black | Fakra HSD® Quadraxial | Solder | Bronze | 100 Ohms | Plug Male Pin | 2 GHz | Latch Lock |

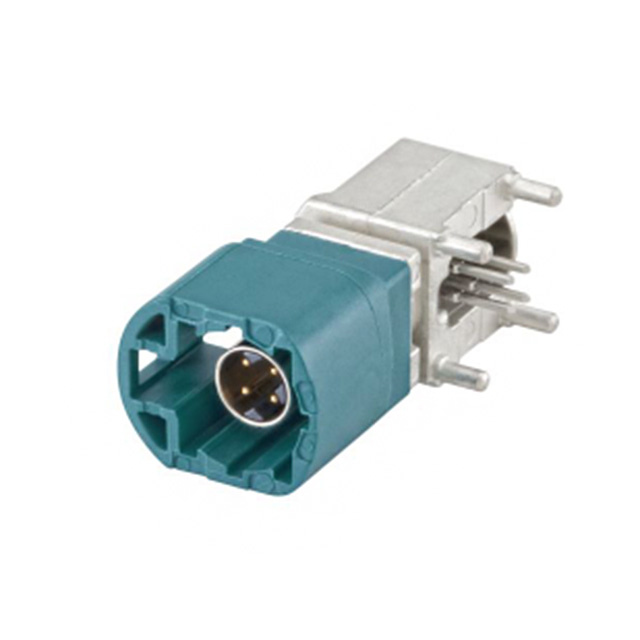

 Rosenberger | Nickel | 25 | 100 V | Brass | Gold | -40 C | 105 ░C | Liquid Crystal Polymer (LCP) | Right Angle Through Hole | 1 | Code Z | Solder | Blue Water | Fakra HSD® Quadraxial | Solder | Bronze | 100 Ohms | Plug Male Pin | 2 GHz | Latch Lock |
