DA15 Series

Manufacturer: Adam Tech

Catalog

D-SUB BACKSHELLS D-SUB HOOD 15 WAY, BLACK THUMB S

Part	Shielding	Color	Material	Cable Type	Compatible Shell Size	Compatible D-Sub Size	Number of Positions	Cable Exit	Primary Material	Accessory Type	Features	Wire Gauge [Max]	Wire Gauge [Min]	Voltage Rating	Contact Material	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Shell Size, Connector Layout	Contact Finish Thickness	Material Flammability Rating	Mounting Type	Contact Finish	Current Rating (Amps)	Number of Rows [custom]	Connector Type	Flange Feature	Connector Style	Flange Feature	Shell Material, Finish	Contact Form	Plating
Adam Tech DA15-HD-PB-TS	Unshielded	Black	Acrylonitrile Butadiene Styrene (ABS)	Round	A	15pos HD26pos	15	180 °	Plastic	Two Piece Backshell	Mating Screws 4-40

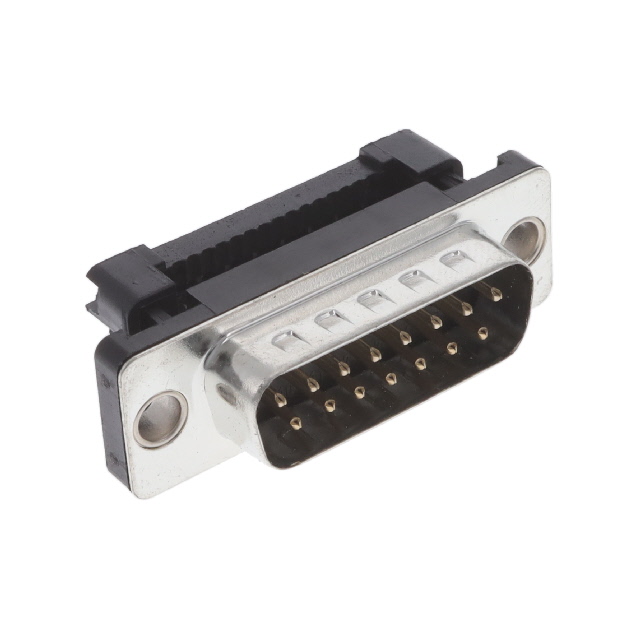

Adam Tech DA15-PF-M1		Black					15				Grounding Indents	30 AWG	27.5 AWG	250 VAC	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	IDC Ribbon Cable	2	Flash	UL94 V-0	Free Hanging (In-Line)	Gold	3 A	2	Plug Male Pins	Housing/Shell (Unthreaded)	D-Sub

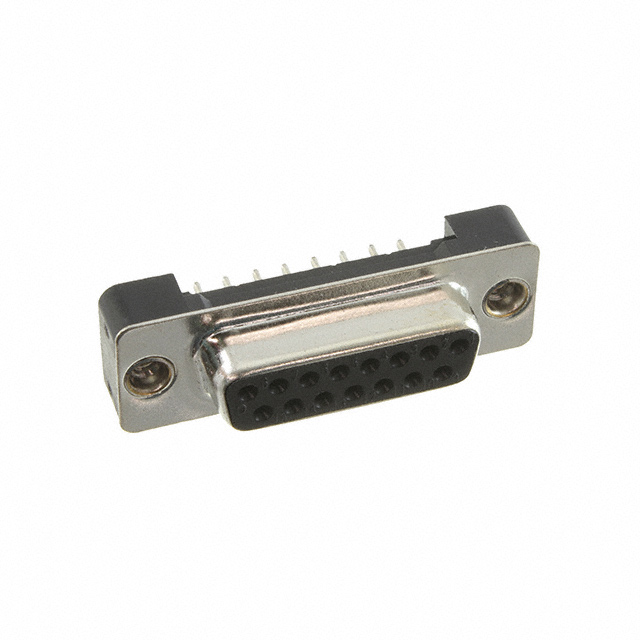

Adam Tech DA15-SA-M2		Black					15							250 VAC	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	-65 ░C	125 °C	Solder	2	Flash	UL94 V-0	Through Hole	Gold		2	Receptacle Female Sockets	Housing/Shell	D-Sub	4-40	Steel

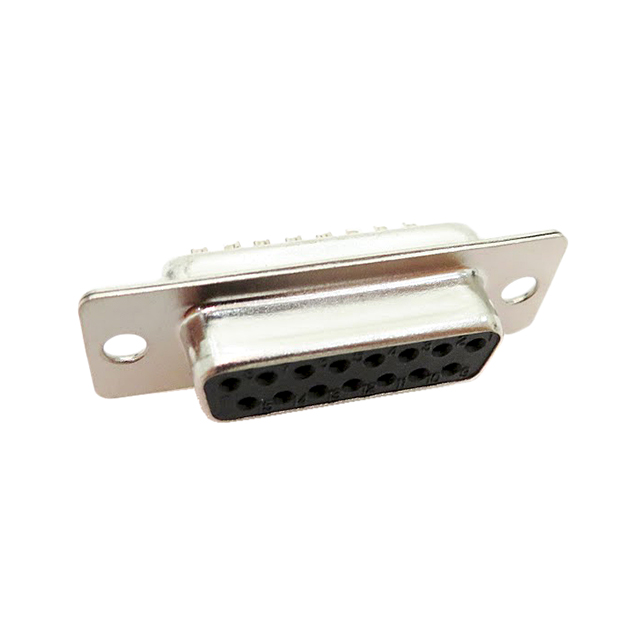

Adam Tech DA15-SD		Black					15							250 VAC	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	-20 ░C	85 °C		2	Flash	UL94 V-0	Free Hanging (In-Line)	Gold	3 A	2	Receptacle Female Sockets	Housing/Shell (Unthreaded)	D-Sub			Stamped
Adam Tech DA15-HD-AL-TS	Shielded		Aluminum Die Cast	Round	A	15pos HD26pos	15	180 °	Metal	Two Piece Backshell	Mating Screws 4-40																						Chromate

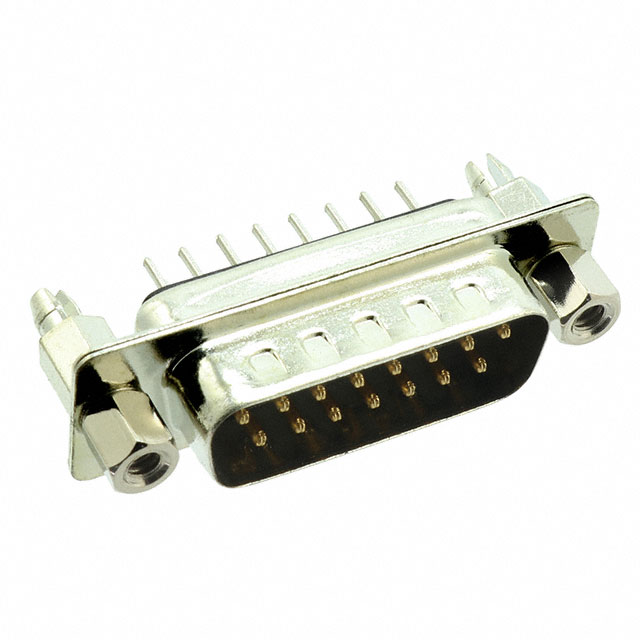

Adam Tech DA15-PT-1-BL-JS		Black					15				Board Lock Grounding Indents			250 VAC	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled			Solder	2	Flash	UL94 V-0	Through Hole	Gold	3 A	2	Plug Male Pins	Board Side (4-40) Mating Side Female Screwlock (4-40)	D-Sub
Adam Tech DA15-ST-2		Black					15							600 V	Brass	Thermoplastic Glass Filled	-55 C	125 °C	Wire Wrap	2	Flash	UL94 V-0	Through Hole	Gold	5 A	2	Receptacle Female Sockets	Housing/Shell	D-Sub	4-40	Nickel Plated Steel

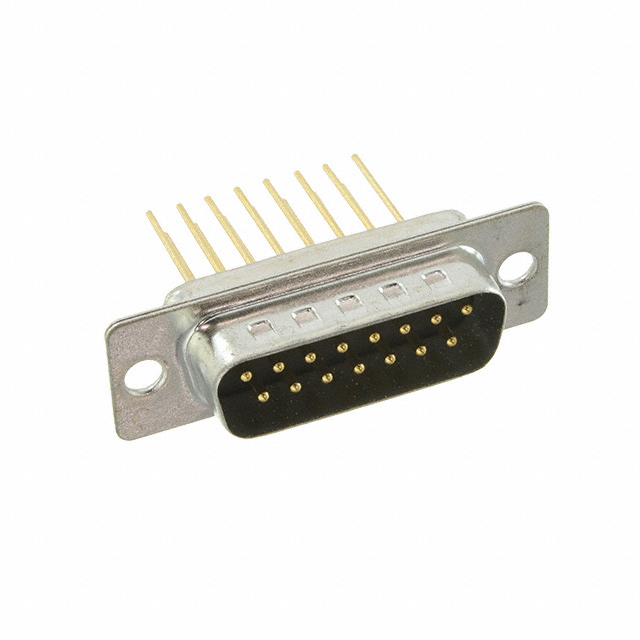

Adam Tech DA15-PT-2		Black					15				Grounding Indents			600 V	Brass	Thermoplastic Glass Filled	-55 C	125 °C	Wire Wrap	2	Flash	UL94 V-0	Through Hole	Gold	5 A	2	Plug Male Pins	Housing/Shell	D-Sub	4-40	Nickel Plated Steel

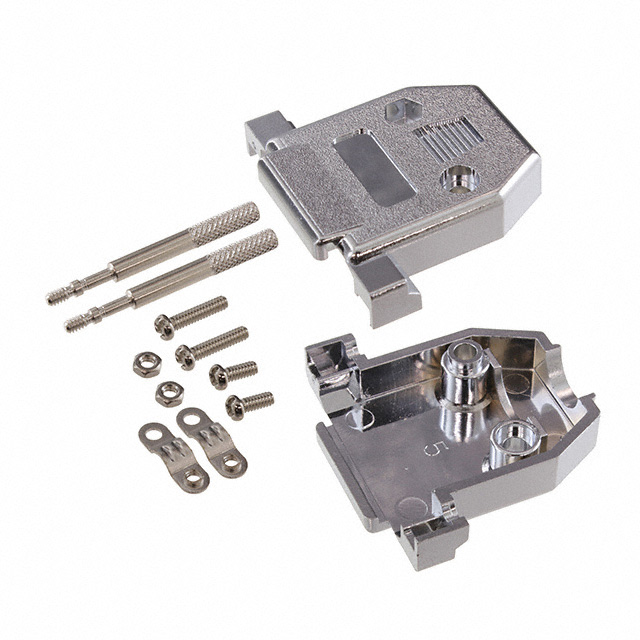

Adam Tech DA15-HD-PN-TS	Shielded	Silver	Acrylonitrile Butadiene Styrene (ABS)	Round	A	15pos HD26pos	15	180 °	Plastic	Two Piece Backshell	Mating Screws 4-40																						Chrome

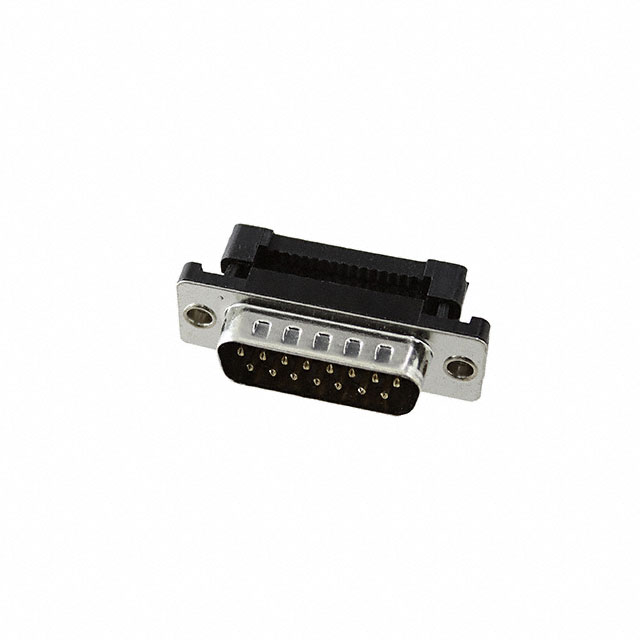

Adam Tech DA15-PF-M2		Black					15				Grounding Indents			250 VAC	Copper Alloy	Thermoplastic	-55 C	105 ░C	IDC Ribbon Cable	2		UL94 V-0	Free Hanging (In-Line)	Gold	3 A	2	Plug Male Pins	Housing/Shell	D-Sub	4-40
