TLH-87 Series

Catalog

PANEL MOUNT BLUE CONTINUOUS ULTR

Part	Lens Transparency	Lens Color	Ingress Protection	Ratings	Voltage [Min]	Voltage [Max]	Lens Style	Type	Termination Style	Panel Cutout Dimensions	Panel Cutout Dimensions	Panel Cutout Shape	Lamp Color	Lens Size [diameter]	Current	Current [Min]	Current [Max]

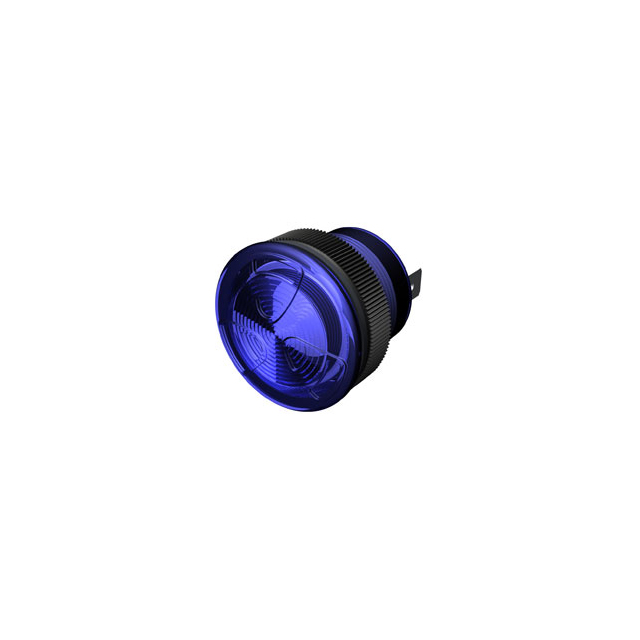

Floyd Bell Inc TLH-87B-930-Q	Diffused	Blue	IP68	DC	9 V	30 V	Round with Flat Top	LED	Quick Connect	1.06 in	26.8 mm	Round	Blue	33 mm	50 mA

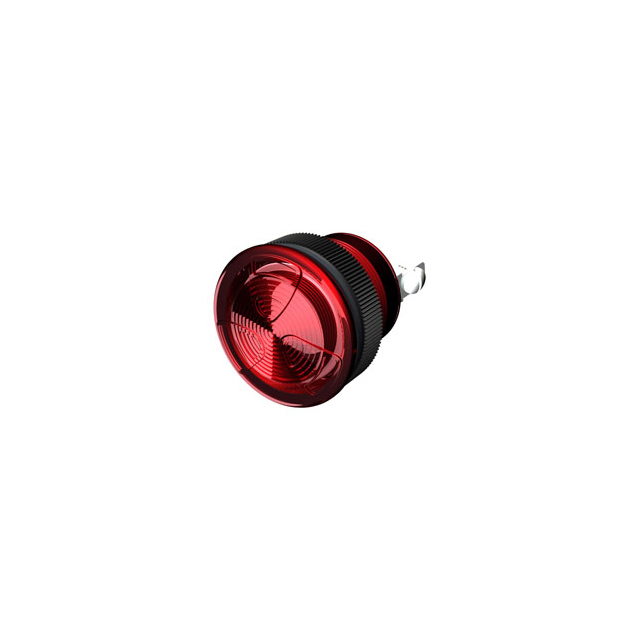

Floyd Bell Inc TLH-87R-930-S	Diffused	Red	IP68	DC	9 V	30 V	Round with Flat Top	LED	Screw Terminal	1.06 in	26.8 mm	Round	Red	33 mm	50 mA
Floyd Bell Inc TLH-87W-930-Q	Diffused	Colorless	IP68	DC	9 V	30 V	Round with Flat Top	LED	Quick Connect	1.06 in	26.8 mm	Round	White	33 mm	50 mA

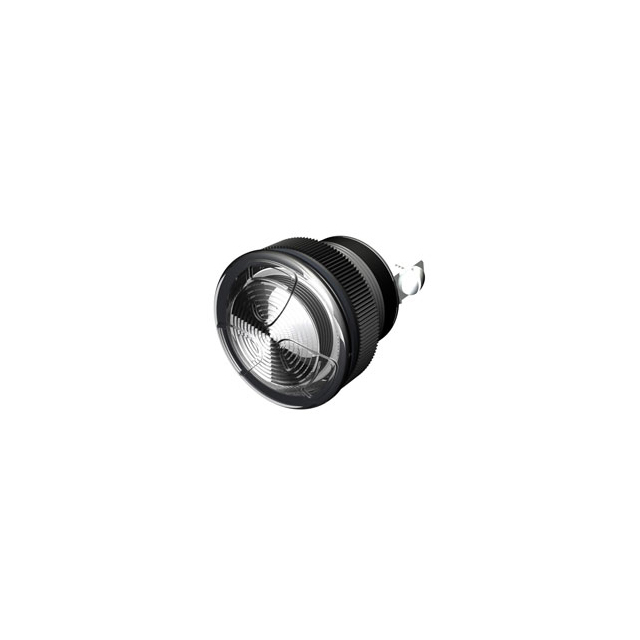

Floyd Bell Inc TLH-87W-930-S	Diffused	Colorless	IP68	DC	9 V	30 V	Round with Flat Top	LED	Screw Terminal	1.06 in	26.8 mm	Round	White	33 mm	50 mA

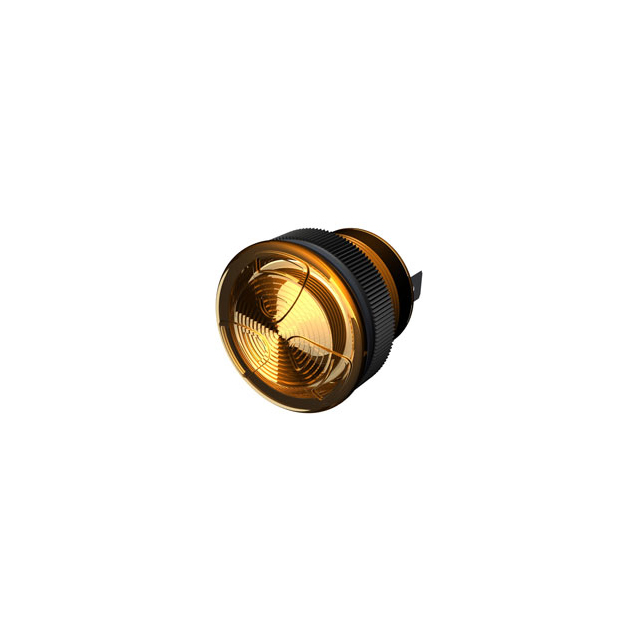

Floyd Bell Inc TLH-87Y-930-Q	Diffused	Yellow	IP68	DC	9 V	30 V	Round with Flat Top	LED	Quick Connect	1.06 in	26.8 mm	Round	Yellow	33 mm	50 mA
Floyd Bell Inc TLH-87Y-930-S	Diffused	Yellow	IP68	DC	9 V	30 V	Round with Flat Top	LED	Screw Terminal	1.06 in	26.8 mm	Round	Yellow	33 mm	50 mA

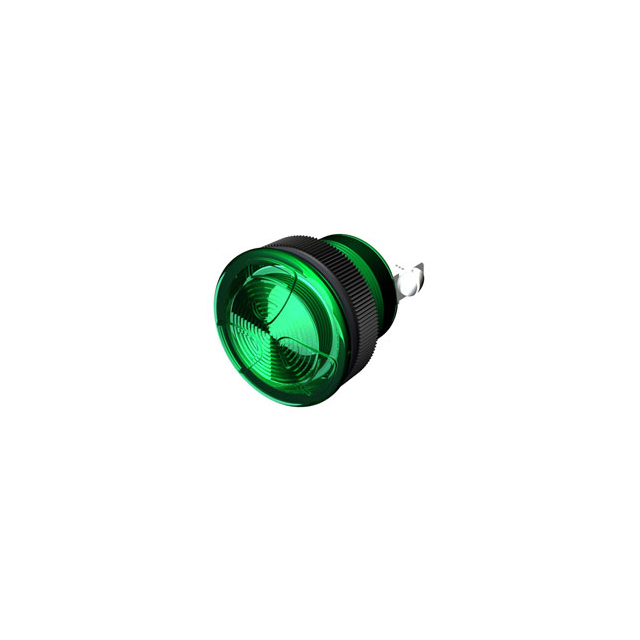

Floyd Bell Inc TLH-87G-930-S	Diffused	Green	IP68	DC	9 V	30 V	Round with Flat Top	LED	Screw Terminal	1.06 in	26.8 mm	Round	Green	33 mm	50 mA

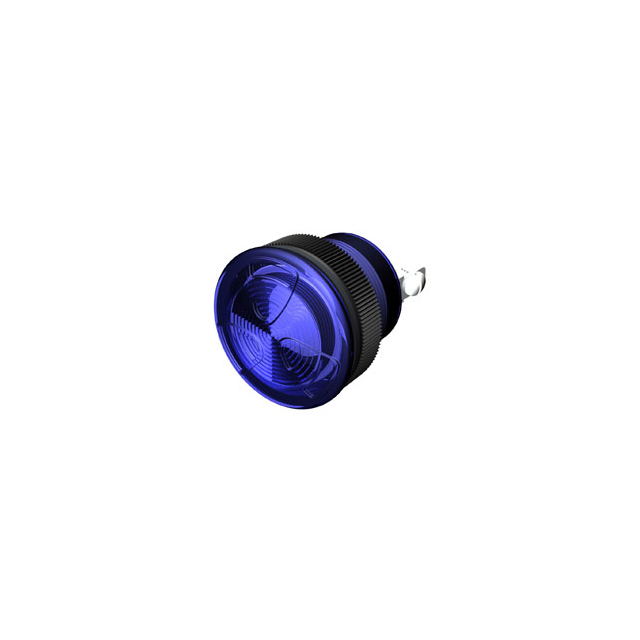

Floyd Bell Inc TLH-87B-930-S	Diffused	Blue	IP68	DC	9 V	30 V	Round with Flat Top	LED	Screw Terminal	1.06 in	26.8 mm	Round	Blue	33 mm	50 mA

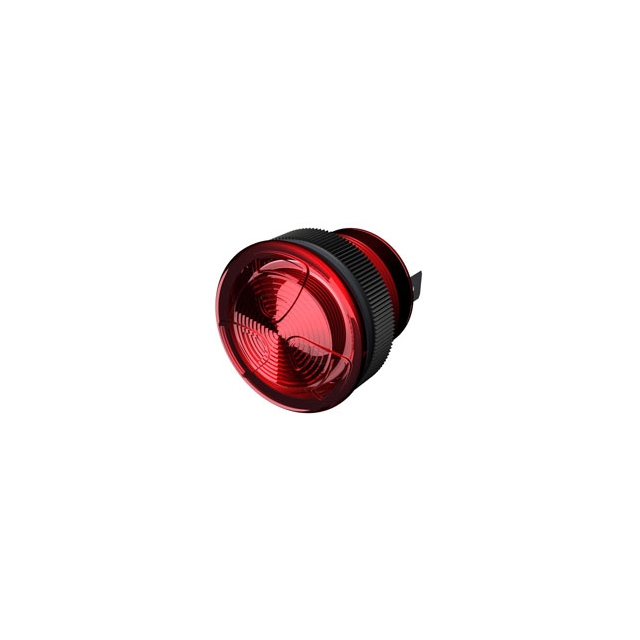

Floyd Bell Inc TLH-87R-930-Q	Diffused	Red	IP68	DC	9 V	30 V	Round with Flat Top	LED	Quick Connect	1.06 in	26.8 mm	Round	Red	33 mm		50 mA	110 mA

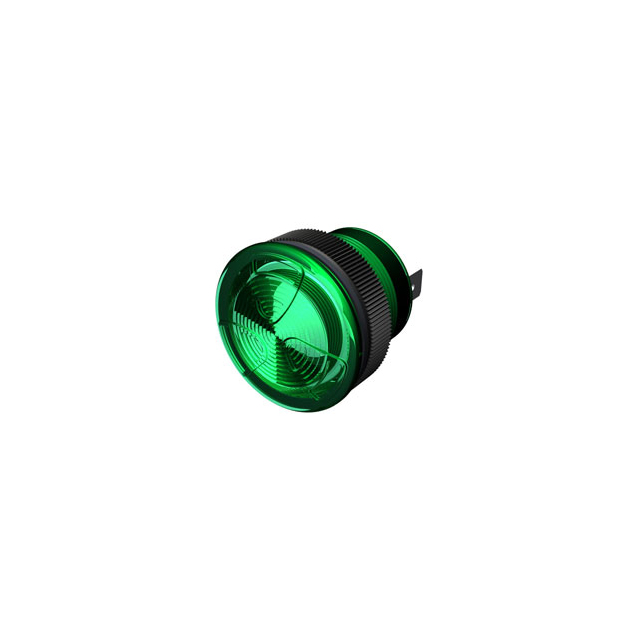

Floyd Bell Inc TLH-87G-930-Q	Diffused	Green	IP68	DC	9 V	30 V	Round with Flat Top	LED	Quick Connect	1.06 in	26.8 mm	Round	Green	33 mm		50 mA	110 mA
