DG2519 Series
Manufacturer: Vishay Dale
Beta
⌘K

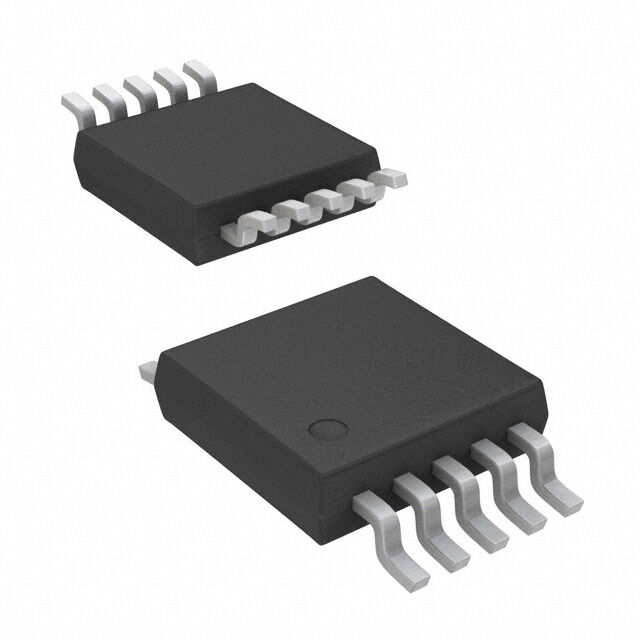

ANALOG SWITCH DUAL SPDT 10-PIN MSOP T/R
| Part | On-State Resistance (Max) | Number of Circuits | Crosstalk | Operating Temperature (Max) | Operating Temperature (Min) | Switch Time Ton (Max) | Switch Time Toff (Max) | Switch Circuit Type | Channel-to-Channel Matching (ΔRon) | Multiplexer Inputs | Demultiplexer Outputs | Mounting Type | Charge Injection | Package Name | -3db Bandwidth | Voltage - Supply, Single (V+) (Minimum) | Voltage - Supply, Single (V+) (Maximum) | Package Length | Package Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | 4 Ohm | 2 | -61 dB | 85 °C | -40 °C | 40 ns | 33 ns | SPDT | 500 mOhm | 2 | 1 | Surface Mount | 14 pC | 10-MSOP 10-TFSOP | 217 MHz | 1.8 V | 5.5 V | 0.118 in | 3 mm |
