SRCN2A16 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN RCPT FMALE 10P SOLDER CUP
| Part | Orientation | Shell Finish | Mounting Type | Fastening Type | Number of Positions | Contact Finish - Mating | Primary Material | Color | Insert Material | Mounting Feature | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Contact Material | Shell Material | Shell Size - Insert | Voltage Rating | Current Rating (Amps) | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | N (Normal) | Nickel | Panel Mount | Threaded | 10 | Silver | Metal | Silver | Plastic | Flange | Communication Systems Measurement Telecommunications Test Equipment | 85 °C | -25 °C | Receptacle Female Sockets | Copper Alloy | Aluminum Alloy | 16-10 | 250 VAC 350 VDC | 5 A | UL94 V-0 |
JAE Electronics | N (Normal) | Nickel | Threaded | 7 | Metal | Communication Systems Measurement Telecommunications Test Equipment | 85 °C | -25 °C | Receptacle Male Pins | Copper Alloy | Aluminum Alloy | UL94 V-0 | ||||||||

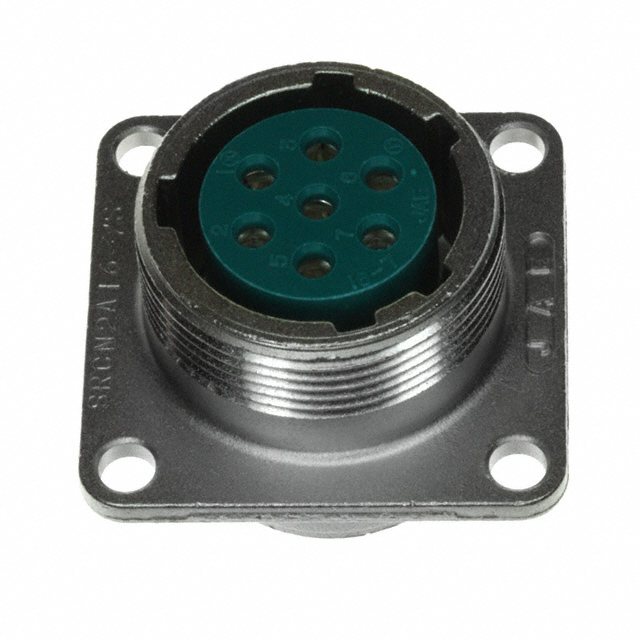

 JAE Electronics | N (Normal) | Nickel | Panel Mount | Threaded | 7 | Silver | Metal | Silver | Plastic | Flange | Communication Systems Measurement Telecommunications Test Equipment | 85 °C | -25 °C | Receptacle Female Sockets | Copper Alloy | Aluminum Alloy | 250 VAC 350 VDC | 10 A | UL94 V-0 | |

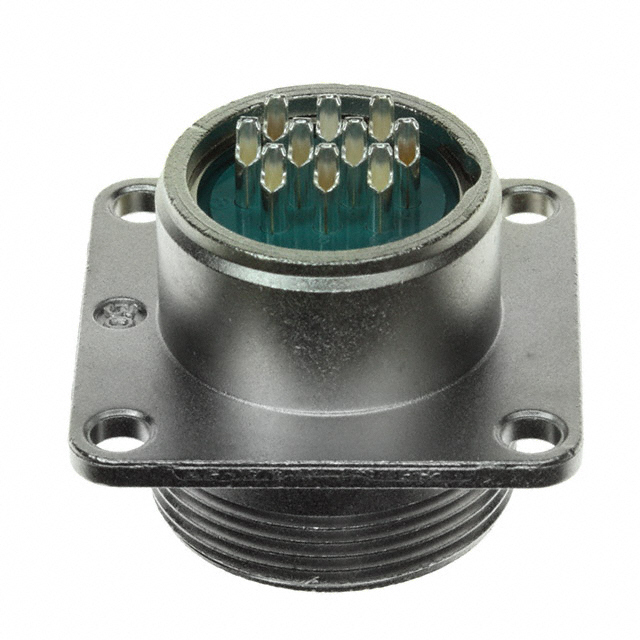

 JAE Electronics | N (Normal) | Nickel | Panel Mount | Threaded | 10 | Silver | Metal | Silver | Plastic | Flange | Communication Systems Measurement Telecommunications Test Equipment | 85 °C | -25 °C | Receptacle Male Pins | Copper Alloy | Aluminum Alloy | 16-10 | 250 VAC 350 VDC | 5 A | UL94 V-0 |
