CIRPSE06 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN PLUG HSNG MALE 7POS INLINE

Part	Mounting Type	Contact Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Shell Material	Insert Material	Type	Connector Type	Contact Size	Features	Note	Shielding	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Fastening Type	Number of Positions	Contact Shape	Housing Color	Shell Size - Insert

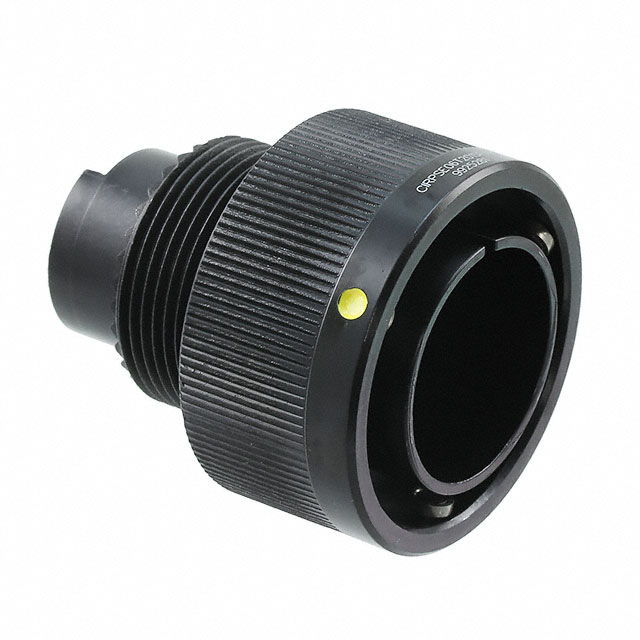

TE Connectivity AMP Connectors CIRPSE06T2015PV0N	Free Hanging (In-Line)	Crimp	15	20	IP67 - Dust Tight Waterproof	Aluminum Alloy	Thermoplastic	For Male Pins	Plug Housing	12	Coupling Nut	Contacts Not Included	Shielded	N (Normal)	-45 °C	125 °C	Chromate over Zinc Cobalt	Reverse Bayonet Lock	7	Circular	Black

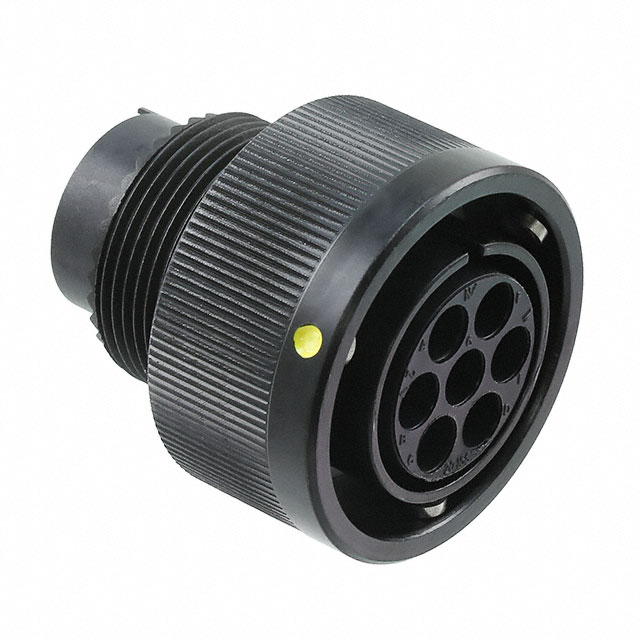

TE Connectivity AMP Connectors CIRPSE06T2015SV0N	Free Hanging (In-Line)	Crimp	15	20	IP67 - Dust Tight Waterproof	Aluminum Alloy	Thermoplastic	For Female Sockets	Plug Housing	12	Coupling Nut	Contacts Not Included	Shielded	N (Normal)	-45 °C	125 °C	Chromate over Zinc Cobalt	Reverse Bayonet Lock	7	Circular	Black

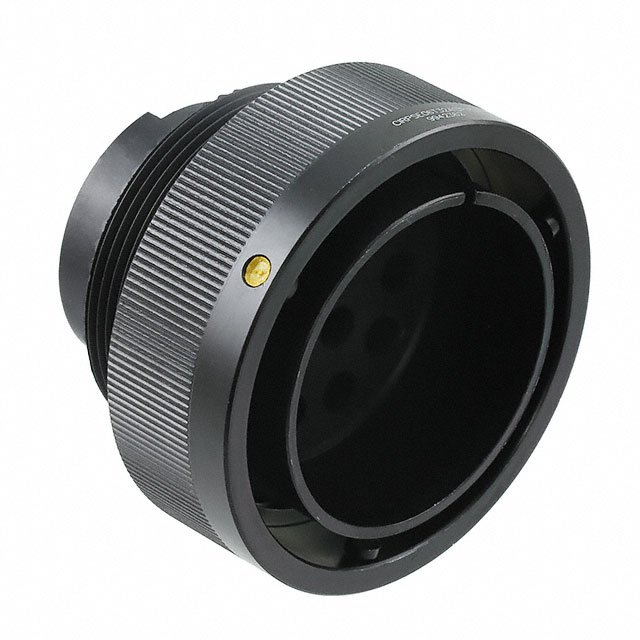

TE Connectivity AMP Connectors CIRPSE06T32A13PV0N	Free Hanging (In-Line)	Crimp			IP67 - Dust Tight Waterproof	Aluminum Alloy	Thermoplastic	For Male Pins	Plug Housing	12	Coupling Nut	Contacts Not Included	Shielded	N (Normal)	-45 °C	125 °C	Chromate over Zinc Cobalt	Reverse Bayonet Lock	13	Circular	Black	32-A13
TE Connectivity AMP Connectors CIRPSE06T40A35PV0N	Free Hanging (In-Line)	Crimp			IP67 - Dust Tight Waterproof	Aluminum Alloy	Thermoplastic	For Male Pins	Plug Housing	12	Coupling Nut	Contacts Not Included	Shielded	N (Normal)	-45 °C	125 °C	Chromate over Zinc Cobalt	Reverse Bayonet Lock	35	Circular	Black	40-A35

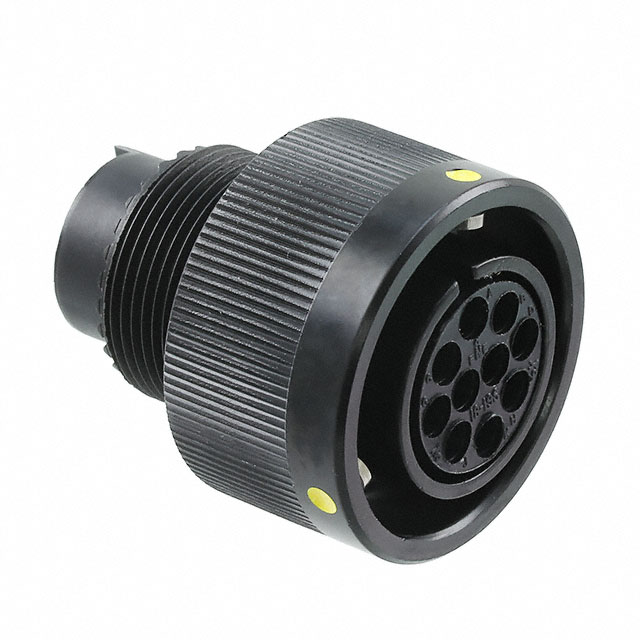

TE Connectivity AMP Connectors CIRPSE06T1819SV0N	Free Hanging (In-Line)	Crimp	18	19	IP67 - Dust Tight Waterproof	Aluminum Alloy	Thermoplastic	For Female Sockets	Plug Housing	16	Coupling Nut	Contacts Not Included	Shielded	N (Normal)	-45 °C	125 °C	Chromate over Zinc Cobalt	Reverse Bayonet Lock	10	Circular	Black
TE Connectivity AMP Connectors CIRPSE06T40A60SV0N	Free Hanging (In-Line)	Crimp			IP67 - Dust Tight Waterproof	Aluminum Alloy	Thermoplastic	For Female Sockets	Plug Housing	16	Coupling Nut	Contacts Not Included	Shielded	N (Normal)	-45 °C	125 °C	Chromate over Zinc Cobalt	Reverse Bayonet Lock	60	Circular	Black	40-A60
TE Connectivity AMP Connectors CIRPSE06T40A60PV0N	Free Hanging (In-Line)	Crimp			IP67 - Dust Tight Waterproof	Aluminum Alloy	Thermoplastic	For Male Pins	Plug Housing	16	Coupling Nut	Contacts Not Included	Shielded	N (Normal)	-45 °C	125 °C	Chromate over Zinc Cobalt	Reverse Bayonet Lock	60	Circular	Black	40-A60

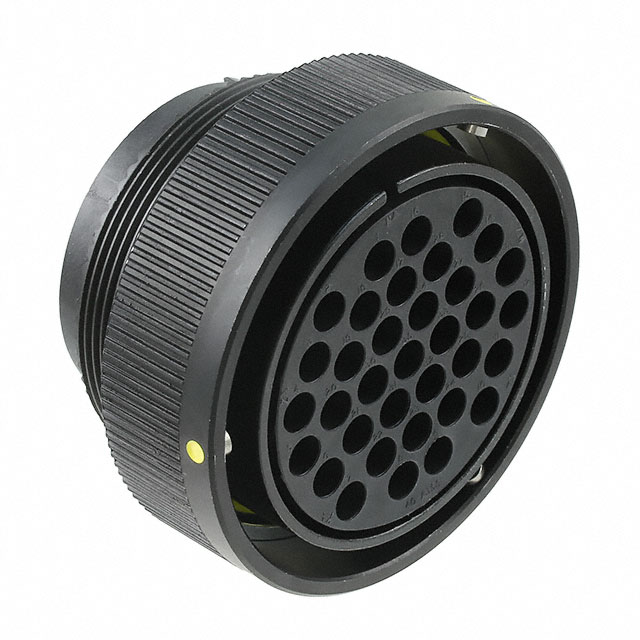

TE Connectivity AMP Connectors CIRPSE06T40A35SV0N	Free Hanging (In-Line)	Crimp			IP67 - Dust Tight Waterproof	Aluminum Alloy	Thermoplastic	For Female Sockets	Plug Housing	12	Coupling Nut	Contacts Not Included	Shielded	N (Normal)	-45 °C	125 °C	Chromate over Zinc Cobalt	Reverse Bayonet Lock	35	Circular	Black	40-A35
TE Connectivity AMP Connectors CIRPSE06T36A22PV0N	Free Hanging (In-Line)	Crimp			IP67 - Dust Tight Waterproof	Aluminum Alloy	Thermoplastic	For Male Pins	Plug Housing	12	Coupling Nut	Contacts Not Included	Shielded	N (Normal)	-45 °C	125 °C	Chromate over Zinc Cobalt	Reverse Bayonet Lock	22	Circular	Black	36-A22
TE Connectivity AMP Connectors CIRPSE06T2214SV0N	Free Hanging (In-Line)	Crimp			IP67 - Dust Tight Waterproof	Aluminum Alloy	Thermoplastic	For Female Sockets	Plug Housing	16	Coupling Nut	Contacts Not Included	Shielded	N (Normal)	-45 °C	125 °C	Chromate over Zinc Cobalt	Reverse Bayonet Lock	19	Circular	Black	22-14
