104083 Series
Manufacturer: Molex
Beta
⌘K

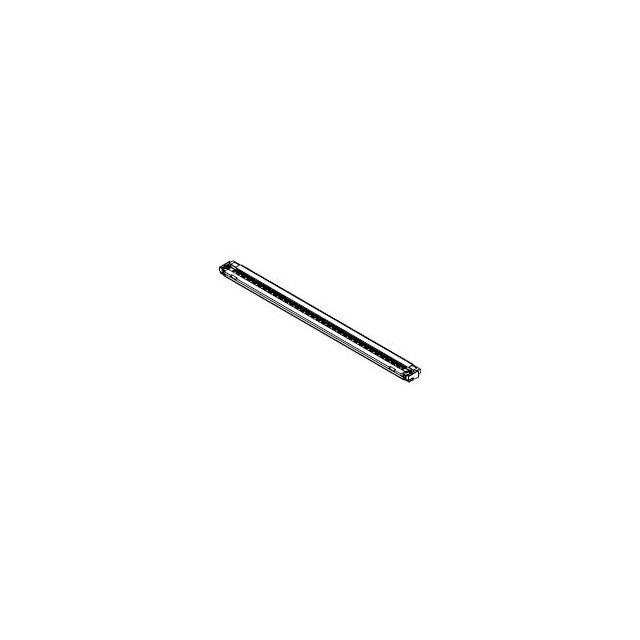

CONN FFC BOTTOM 96POS 0.5MM R/A
| Part | Number of Positions | Cable End Type | Actuator Color | Operating Temperature [Max] | Operating Temperature [Min] | Locking Feature | Features | Actuator Material | Contact Material | Voltage Rating | Mounting Type | Contact Finish | Housing Material | Connector/Contact Type | Pitch [x] | Pitch [x] | Flat Flex Type | Material Flammability Rating | Housing Color | Termination | FFC, FCB Thickness | Current Rating (Amps) | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 96 | Straight Tapered | Black | 85 °C | -20 C | Flip Lock | Solder Retention Zero Insertion Force (ZIF) | Polybutylene Terephthalate (PBT) Glass Filled | Phosphor Bronze | 50 V | Surface Mount Right Angle | Gold | Liquid Crystal Polymer (LCP) Glass Filled | Contacts Bottom | 0.5 mm | 0.02 in | FFC FPC | UL94 V-0 | Natural | Solder | 0.3 mm | 500 mA | 0.059 in | 1.5 mm |
