R7FA8T1 Series

Manufacturer: Renesas Electronics Corporation

Catalog

ARM MCU, 32BIT, 400MHZ, LQFP-176 ROHS COMPLIANT: YES

Part	Core Processor	Connectivity	Data Converters	Core Size	Program Memory Type	Mounting Type	EEPROM Size	Oscillator Type	Supplier Device Package	Speed	Peripherals	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	RAM Size	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Number of I/O	Program Memory Size	Data Converters [custom]
Renesas Electronics Corporation R7FA8T1AHECFC#UA0
Renesas Electronics Corporation R7FA8T1AFECFB#BA0	ARM® Cortex®-M85	CANbus Ethernet I2C MMC/SD QSPI SCI SmartCard SPI UART/USART USB	A/D 18x12b SAR D/A 2x12b	32-Bit	FLASH	Surface Mount	12 K	Internal	144-LQFP (20x20)	400 MHz	AES DMA POR PWM RSA Temp Sensor Voltage Detect WDT	3.6 V	1.65 V	1 M	-40 C	125 °C	144-LQFP	106	1 MB
Renesas Electronics Corporation R7FA8T1AFECFP#BA0	ARM® Cortex®-M85	CANbus Ethernet I2C MMC/SD QSPI SCI SmartCard SPI UART/USART USB	A/D 10x12b SAR D/A 2x12b	32-Bit	FLASH	Surface Mount	12 K	Internal	100-LFQFP (14x14)	360 MHz	AES DMA POR PWM RSA Temp Sensor Voltage Detect WDT	3.6 V	1.65 V	1 M	-40 C	125 °C	100-LQFP	70	1 MB
Renesas Electronics Corporation R7FA8T1AHECFB#BA0	ARM® Cortex®-M85	CANbus Ethernet I2C MMC/SD QSPI SCI SmartCard SPI UART/USART USB	A/D 18x12b SAR D/A 2x12b	32-Bit	FLASH	Surface Mount	12 K	Internal	144-LQFP (20x20)	400 MHz	AES DMA POR PWM RSA Temp Sensor Voltage Detect WDT	3.6 V	1.65 V	1 M	-40 C	125 °C	144-LQFP	106	2 MB
Renesas Electronics Corporation R7FA8T1AHECBD#BC0	ARM® Cortex®-M85	CANbus Ethernet I2C MMC/SD QSPI SCI SmartCard SPI UART/USART USB		32-Bit	FLASH	Surface Mount	12 K	Internal	224-LFBGA (13x13)	480 MHz	AES DMA POR PWM RSA Temp Sensor Voltage Detect WDT	3.6 V	1.65 V	1 M	-40 C	125 °C	224-LFBGA	174	2 MB	A/D 25x12b SAR D/A 2x12b
Renesas Electronics Corporation R7FA8T1AFECBD#BC0	ARM® Cortex®-M85	CANbus Ethernet I2C MMC/SD QSPI SCI SmartCard SPI UART/USART USB		32-Bit	FLASH	Surface Mount	12 K	Internal	224-LFBGA (13x13)	480 MHz	AES DMA POR PWM RSA Temp Sensor Voltage Detect WDT	3.6 V	1.65 V	1 M	-40 C	125 °C	224-LFBGA	174	1 MB	A/D 25x12b SAR D/A 2x12b
Renesas Electronics Corporation R7FA8T1AHECFC#BA0	ARM® Cortex®-M85	CANbus Ethernet I2C MMC/SD QSPI SCI SmartCard SPI UART/USART USB	A/D 24x12b SAR D/A 2x12b	32-Bit	FLASH	Surface Mount	12 K	Internal	176-LFQFP (24x24)	400 MHz	AES DMA POR PWM RSA Temp Sensor Voltage Detect WDT	3.6 V	1.65 V	1 M	-40 C	125 °C	176-LQFP	128	2 MB
Renesas Electronics Corporation R7FA8T1AFECFC#BA0	ARM® Cortex®-M85	CANbus Ethernet I2C MMC/SD QSPI SCI SmartCard SPI UART/USART USB	A/D 24x12b SAR D/A 2x12b	32-Bit	FLASH	Surface Mount	12 K	Internal	176-LFQFP (24x24)	400 MHz	AES DMA POR PWM RSA Temp Sensor Voltage Detect WDT	3.6 V	1.65 V	1 M	-40 C	125 °C	176-LQFP	128	1 MB
Renesas Electronics Corporation R7FA8T1AHECFP#BA0	ARM® Cortex®-M85	CANbus Ethernet I2C MMC/SD QSPI SCI SmartCard SPI UART/USART USB	A/D 10x12b SAR D/A 2x12b	32-Bit	FLASH	Surface Mount	12 K	Internal	100-LFQFP (14x14)	360 MHz	AES DMA POR PWM RSA Temp Sensor Voltage Detect WDT	3.6 V	1.65 V	1 M	-40 C	125 °C	100-LQFP	70	2 MB

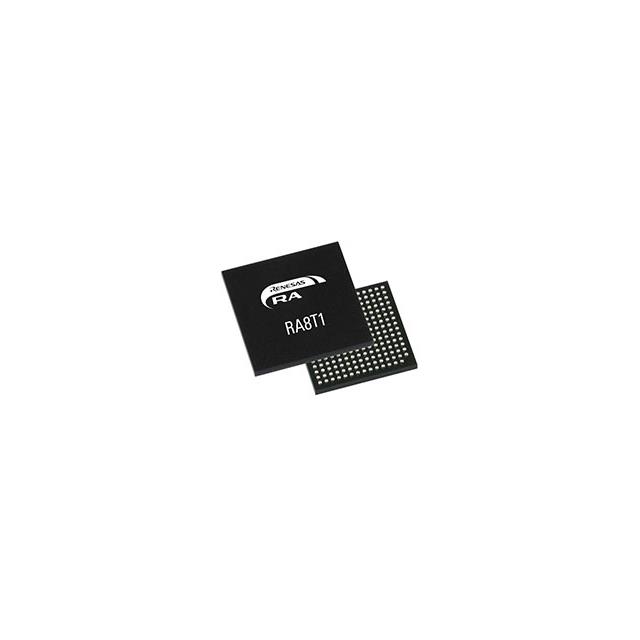

Renesas Electronics Corporation R7FA8T1AHECBD#UC0
